Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

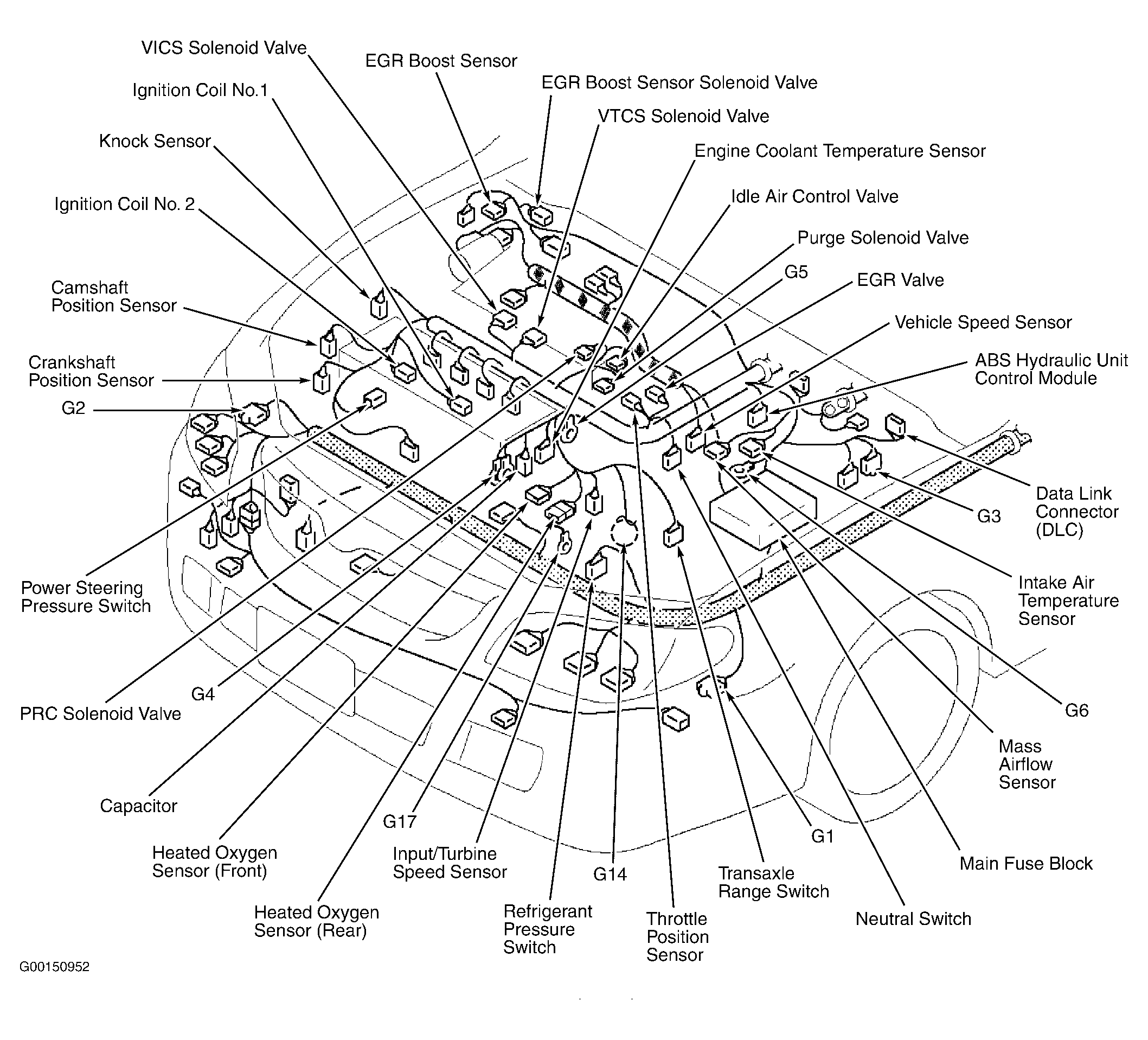

| ABS Hydraulic Unit Control Module | At left rear corner of engine compartment. See Figure. |

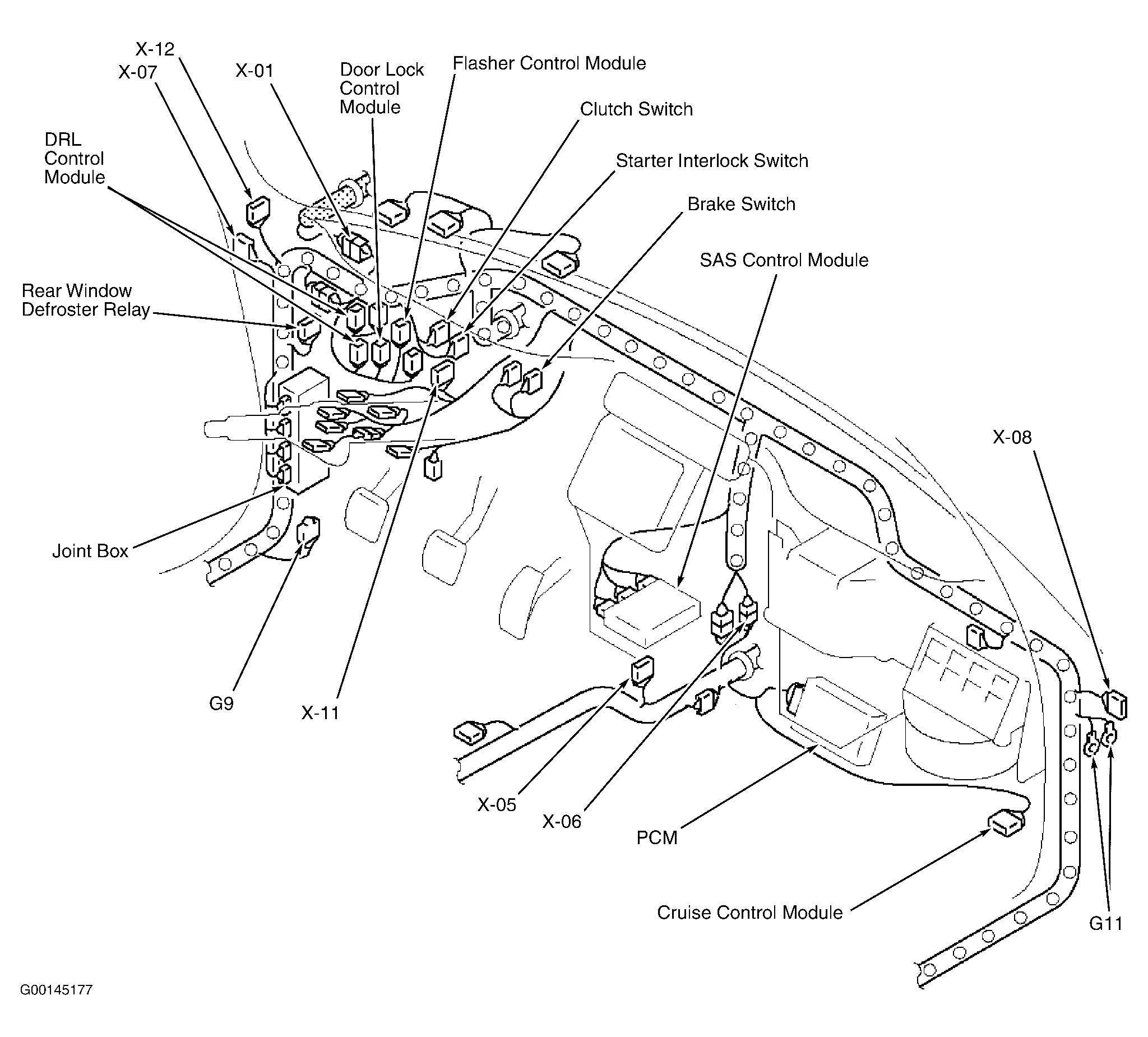

| Cruise Control Module | Behind right side of dash. See Figure. |
| Door Lock Control Module | Behind left end of dash. See Figure. |
| DRL Control Module | Behind left side of dash. See Figure. |
| Flasher Control Module | Behind left side of dash. See Figure. |
| Keyless Control Module | At center front of trunk. |
| PCM | Behind right side of dash. See Figure. |
| SAS Control Module | Behind lower center of dash. See Figure. |
| Shift Lock Unit | Behind right end of dash. |
