Engine Technical Data

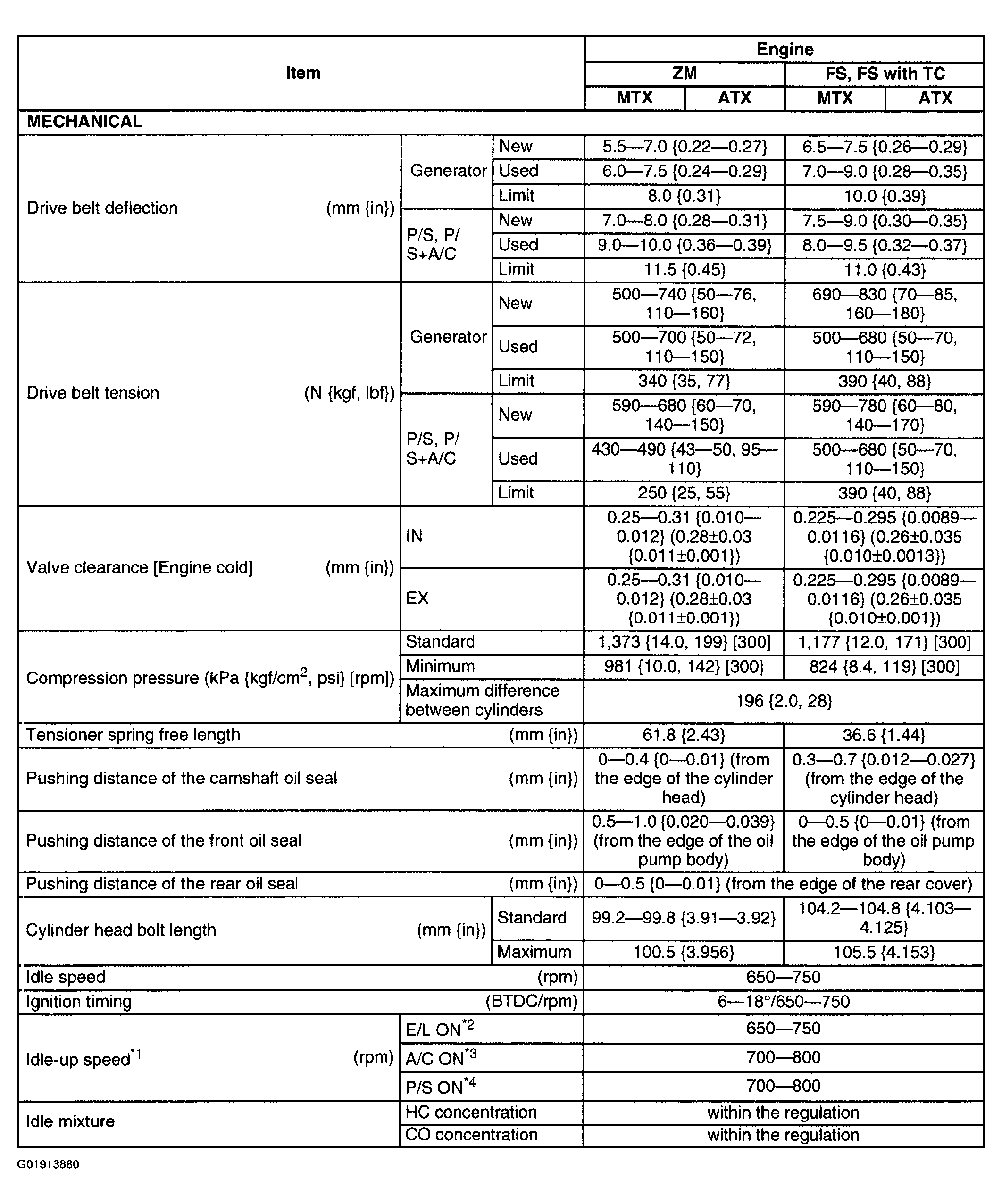

Fig 1: Engine Technical Data Specifications (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

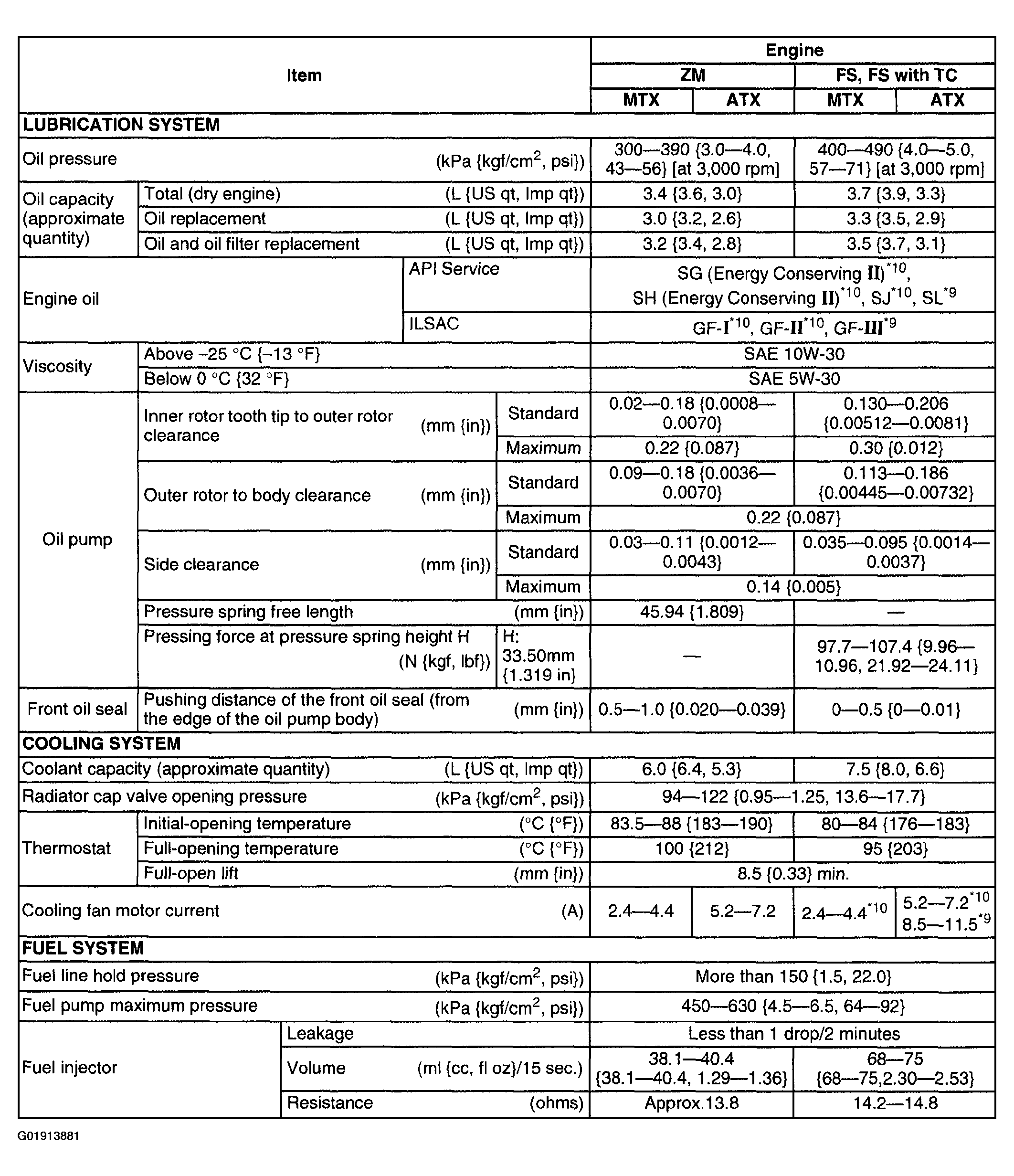

Fig 2: Engine Technical Data Specifications (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

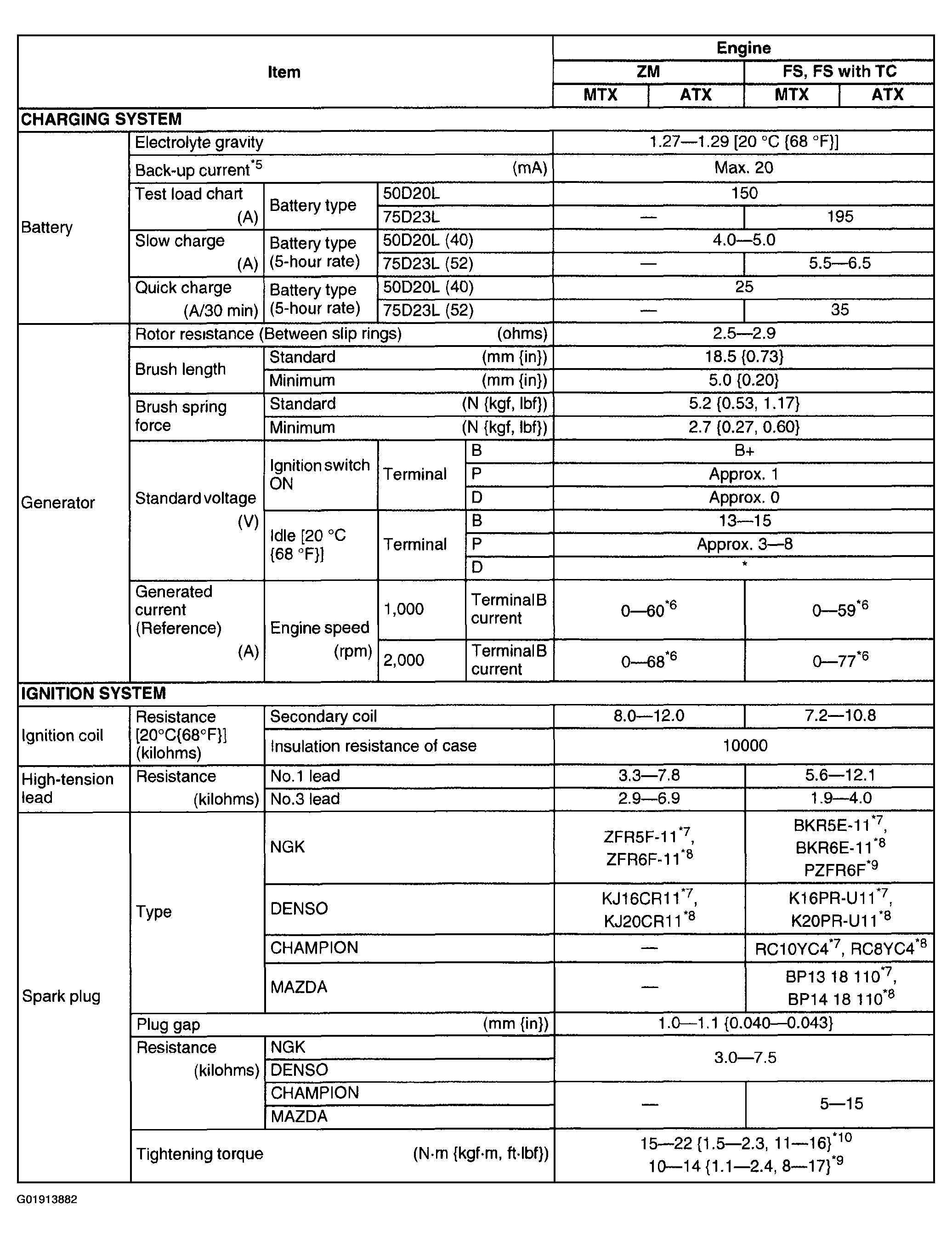

Fig 3: Engine Technical Data Specifications (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

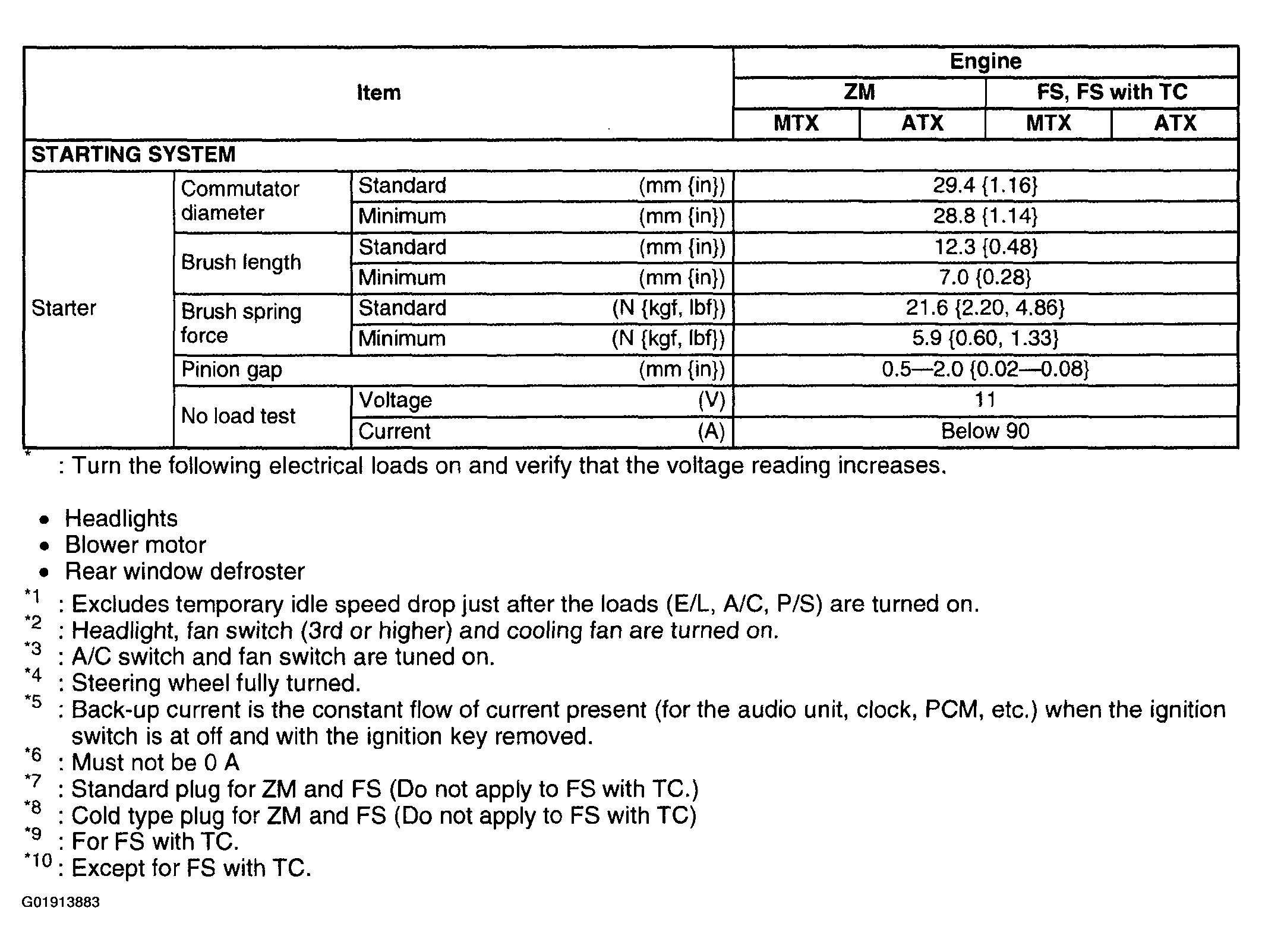

Fig 4: Engine Technical Data Specifications (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
