Camshaft Position Sensor

CAMSHAFT POSITION (CMP) SENSOR RESISTANCE

Application

Ohms

B2300, B3000 & B4000

⁽¹⁾

Mazda6

2.3L

400-550

3.0L

467-571

Miata

⁽¹⁾

MPV

308-376

Protege

950-1250

Tribute

⁽¹⁾

⁽¹⁾	Information not available from manufacturer

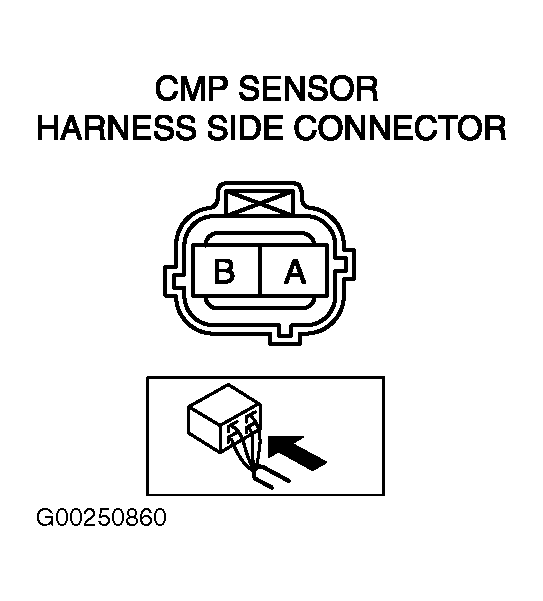

Fig 1: Identifying CMP Sensor Terminals (Mazda6 - 2.3L)

Courtesy of MAZDA MOTORS CORP.

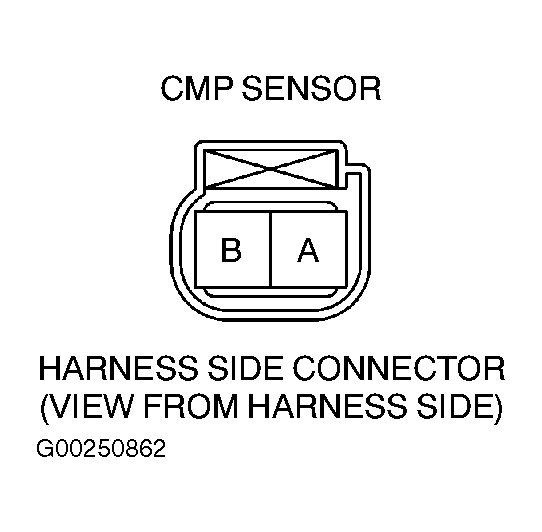

Fig 2: Identifying CMP Sensor Terminals (Mazda6 - 3.0L)

Courtesy of MAZDA MOTORS CORP.

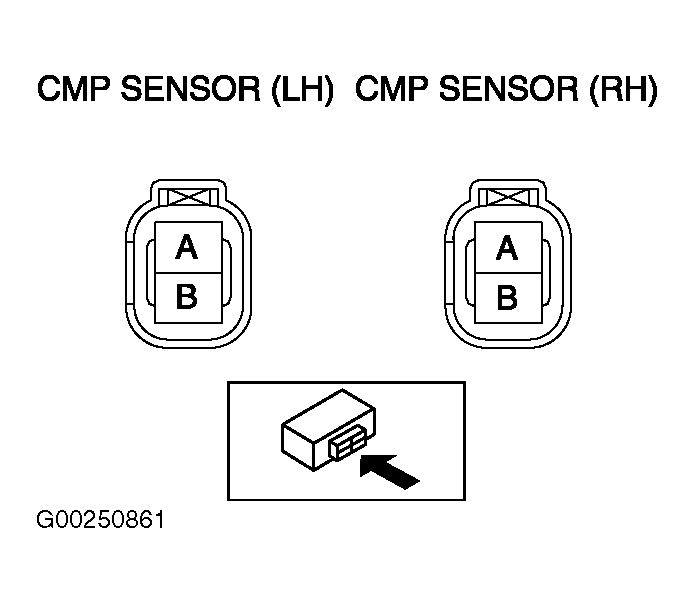

Fig 3: Identifying CMP & CKP Sensor Terminals (MPV)

Courtesy of MAZDA MOTORS CORP.

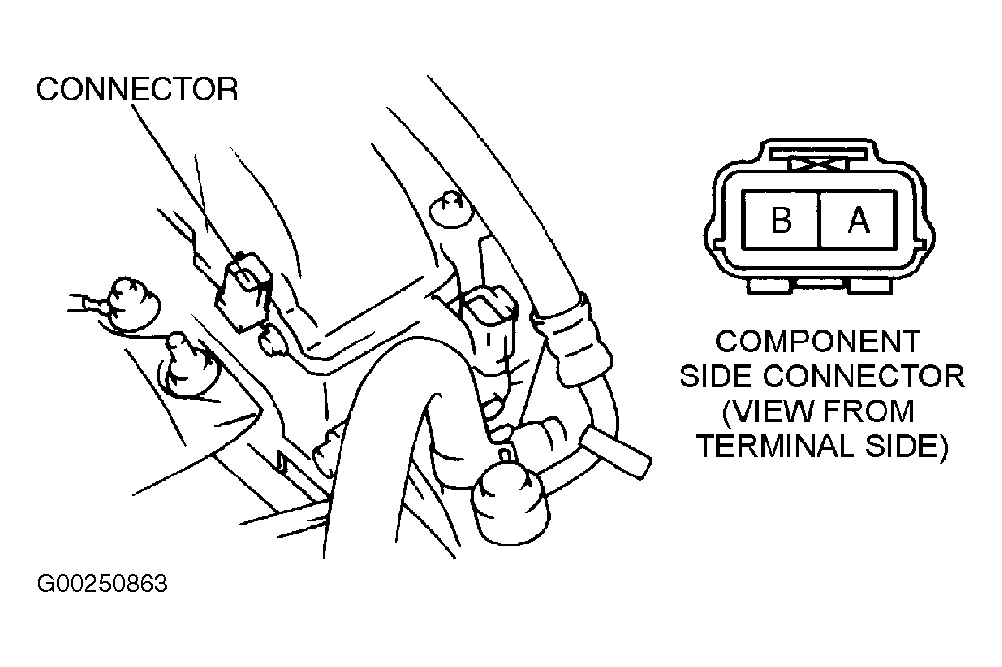

Fig 4: Identifying CMP Sensor Terminals (Protege)

Courtesy of MAZDA MOTORS CORP.
