Buckle Switch Inspection

Disconnect the negative battery cable.
Disconnect the buckle switch connector.
Inspect for continuity between the buckle switch terminals using an ohmmeter.
- If not as specified, replace the front buckle.

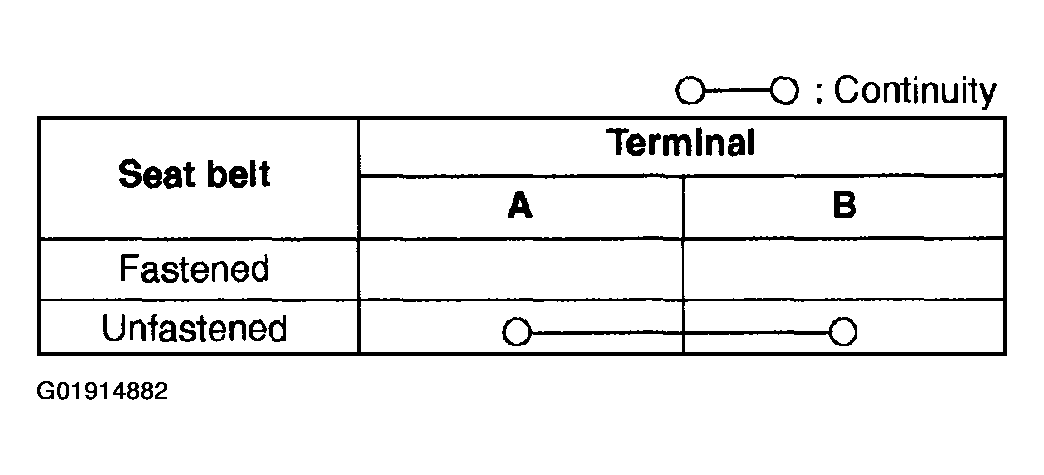

Fig 1: Continuity Table
Courtesy of MAZDA MOTORS CORP.

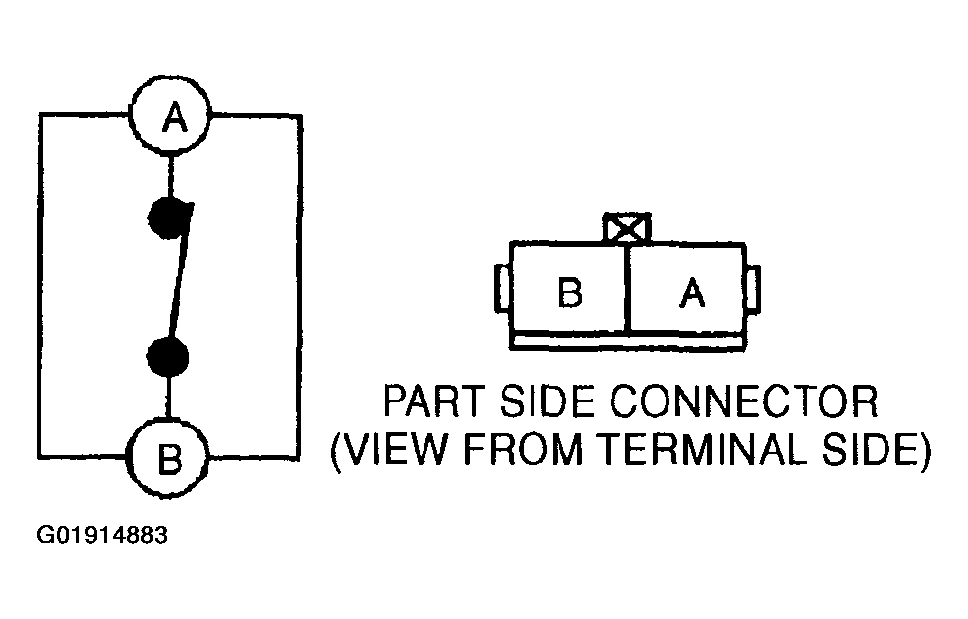

Fig 2: Inspecting Continuity Between Buckle Switch Terminals
Courtesy of MAZDA MOTORS CORP.
