Front Buckle Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

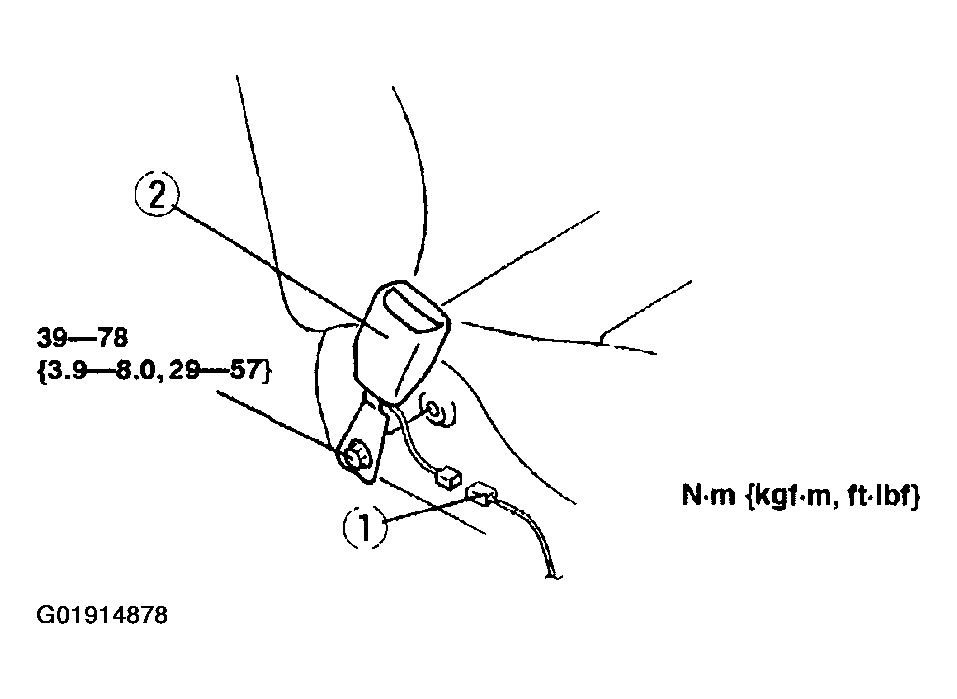

    Fig 1: Identifying Front Buckle Removal/Installation
    G01914878Courtesy of MAZDA MOTORS CORP.

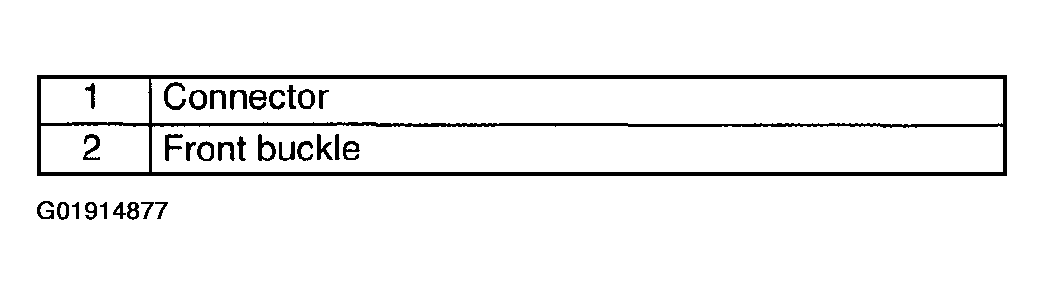

    Fig 2: Order Indication Table
    G01914877Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
