Rear Buckle Removal/Installation

  1. For 4SD, remove the rear seat cushion. For 5HB, lift up the rear seat cushion.
  2. Remove the bolt, then remove the rear buckle.
  3. Install in the reverse order of removal.

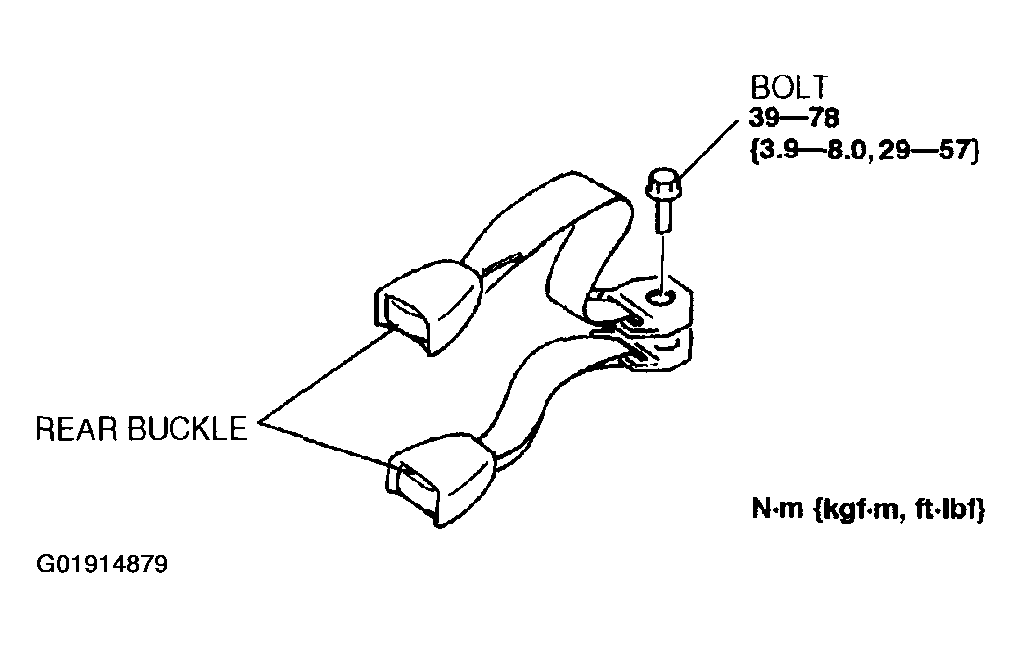

    Fig 1: Removing Rear Buckle Bolt
    G01914879Courtesy of MAZDA MOTORS CORP.
