Steering Technical Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Steering Technical Data

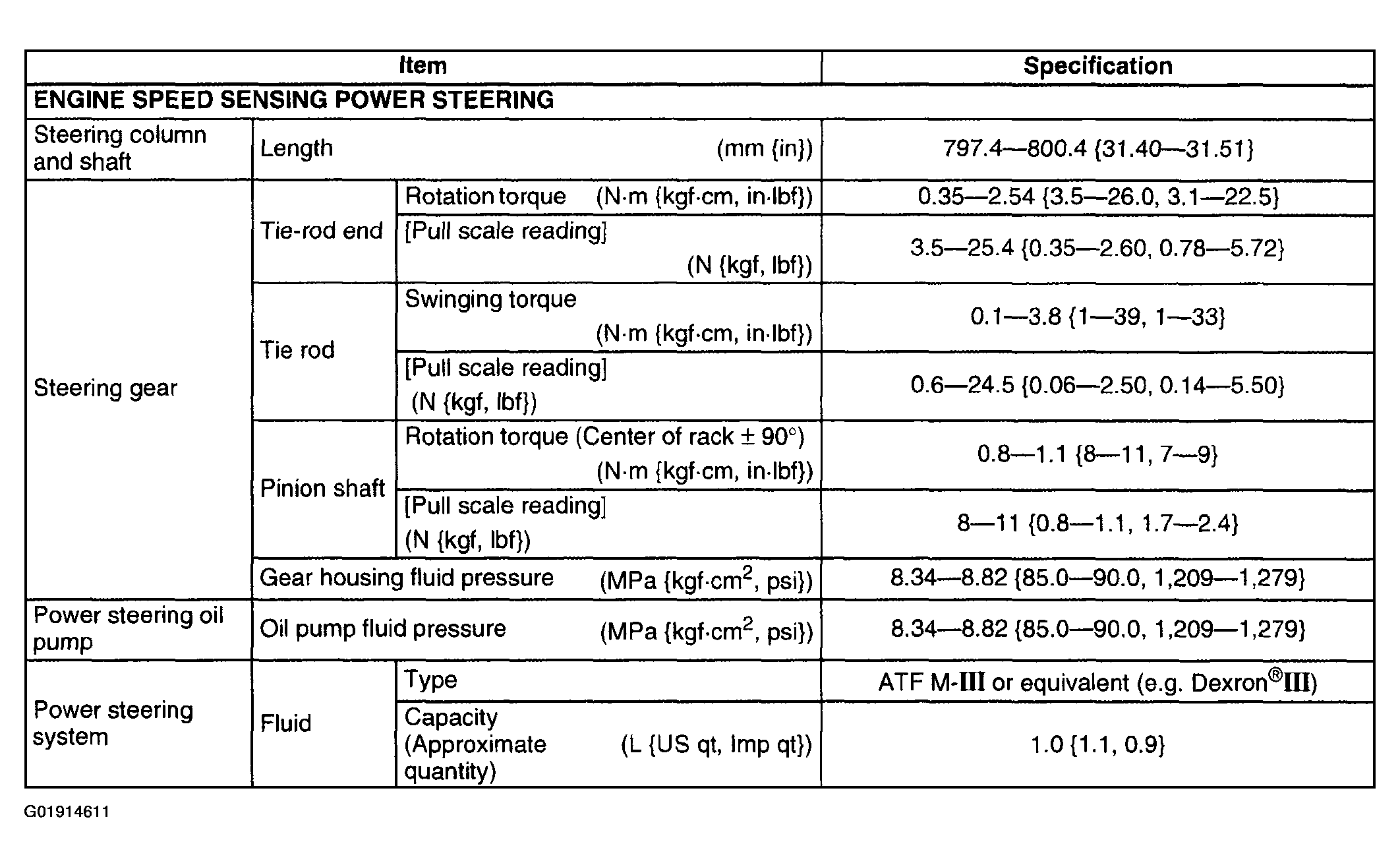

Fig 1: Steering Technical Data
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
