Wheel Alignment Specifications

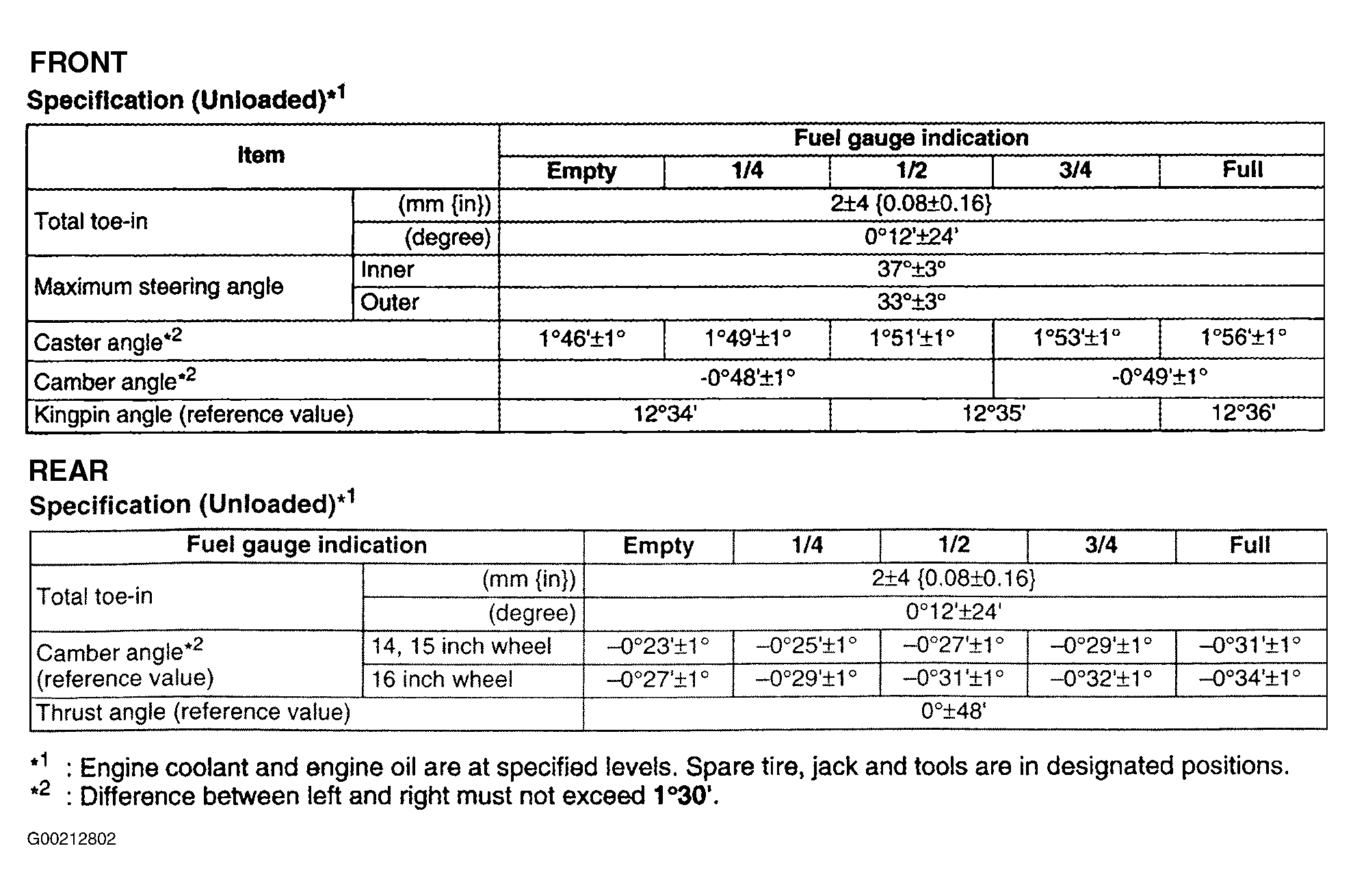

Fig 1: Wheel Alignment Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
