Interlock Cable Inspection

  1. Remove the interlock cable and lock unit. (See SELECTOR LEVER REMOVAL/INSTALLATION  .)
    • If the slider pin protrusion is as specified below (dimension A), verify that the interlock cable moves freely in the lock unit.
    • If not as specified, replace the interlock cable.
  2. Install the interlock cable and lock unit. (See INTERLOCK CABLE AND LOCK UNIT INSTALLATION NOTE  .)

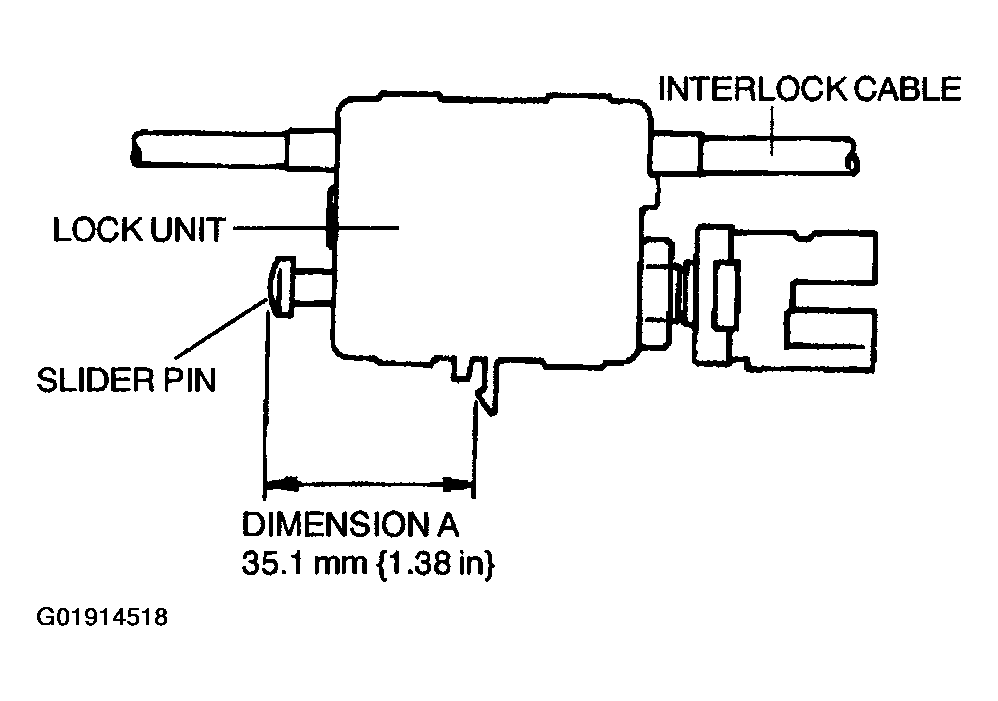

    Fig 1: Inspecting Interlock Cable
    G01914518Courtesy of MAZDA MOTORS CORP.
