Cam Assembly Note

  1. Loosely install the cam to the push rod.
    NOTE:
    • Clearance can be reduced by turning the cam clockwise.
  2. Adjust the clearance between the guide plate and the guide pin by turning the cam.
  3. Install the selector lever knob and verify that the clearance is as specified.
    • If not, repeat from Step  2 .
  4. Remove the selector lever knob.

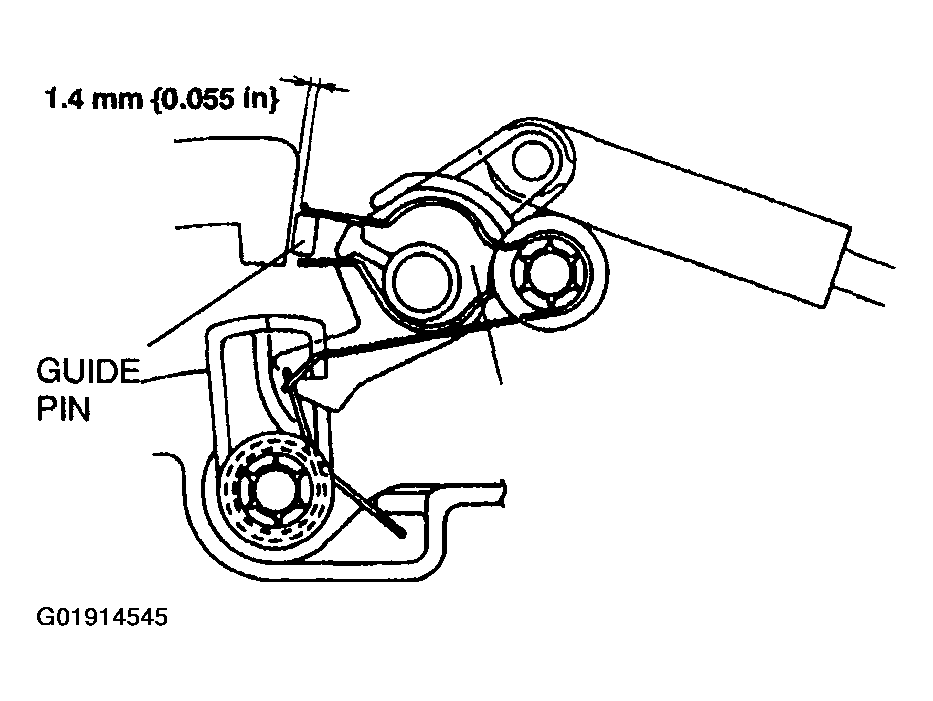

    Fig 1: Measuring Clearance
    G01914545Courtesy of MAZDA MOTORS CORP.
  5. Apply grease to the cam as shown.

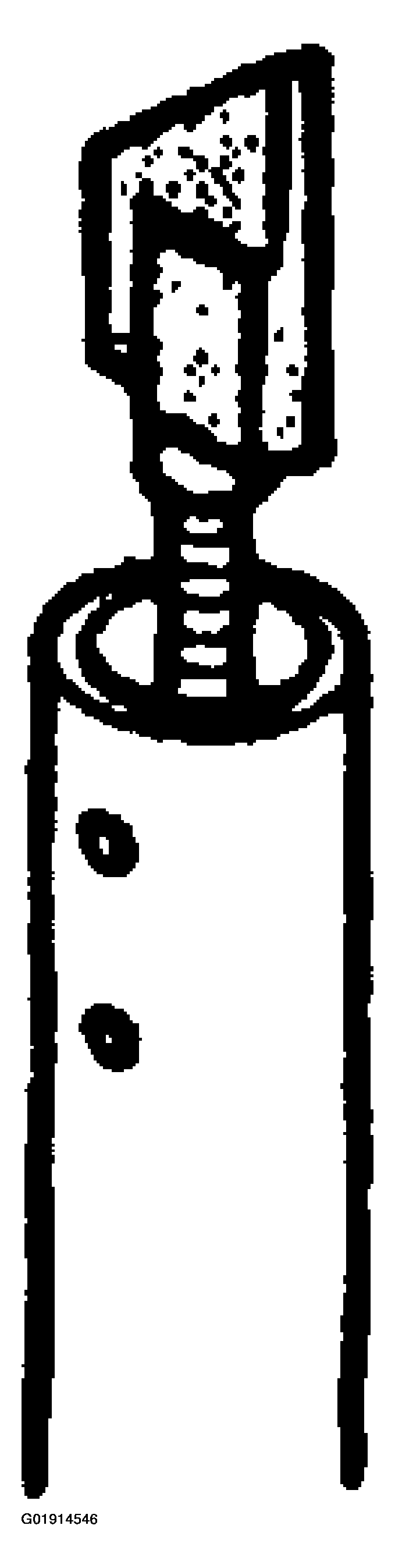

    Fig 2: Applying Grease To Cam
    G01914546Courtesy of MAZDA MOTORS CORP.
