Selector Lever Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figure.
  2. Assemble in the reverse order of disassembly.

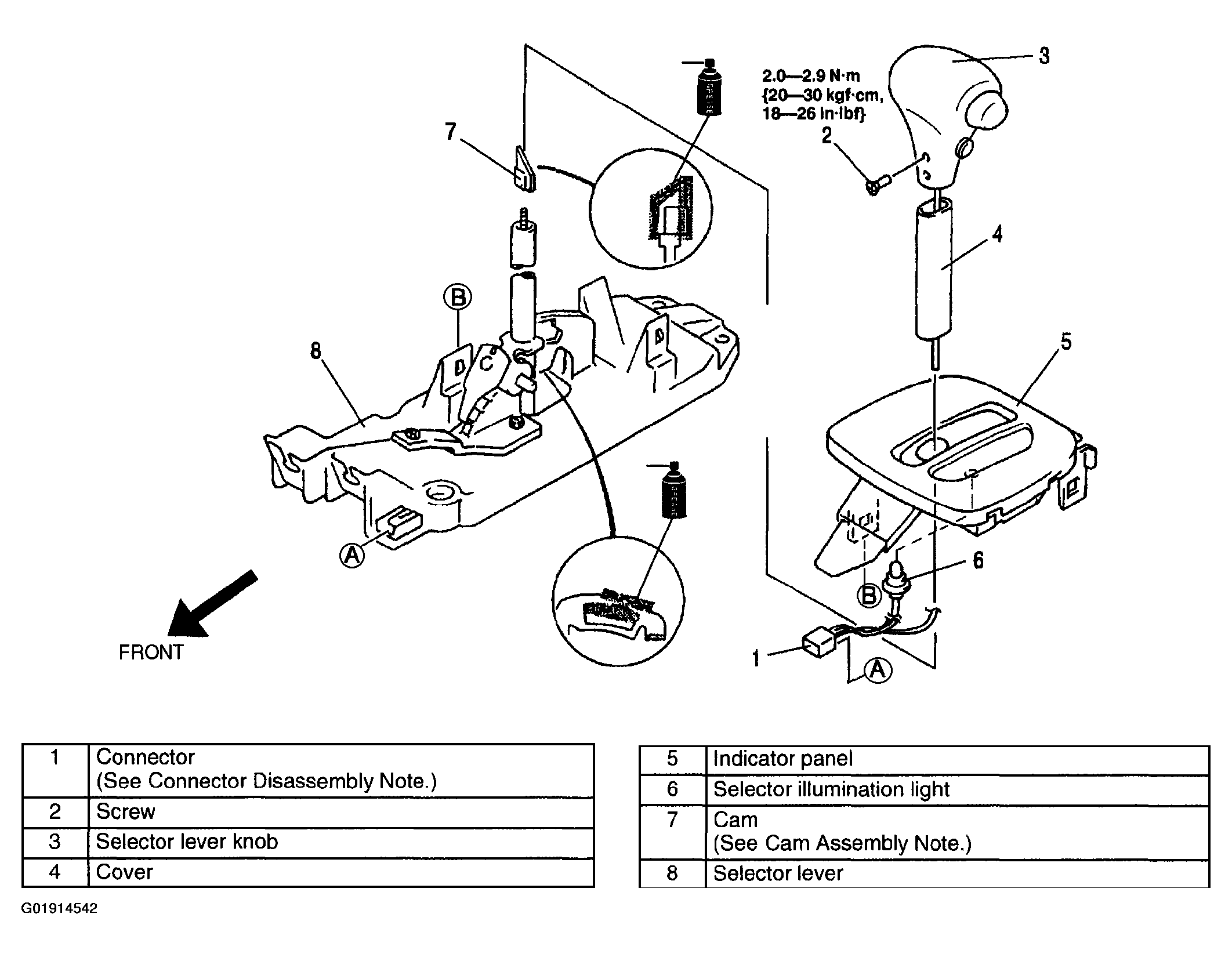

    Fig 1: Exploded View Of Selector Lever - 4AT
    G01914542Courtesy of MAZDA MOTORS CORP.

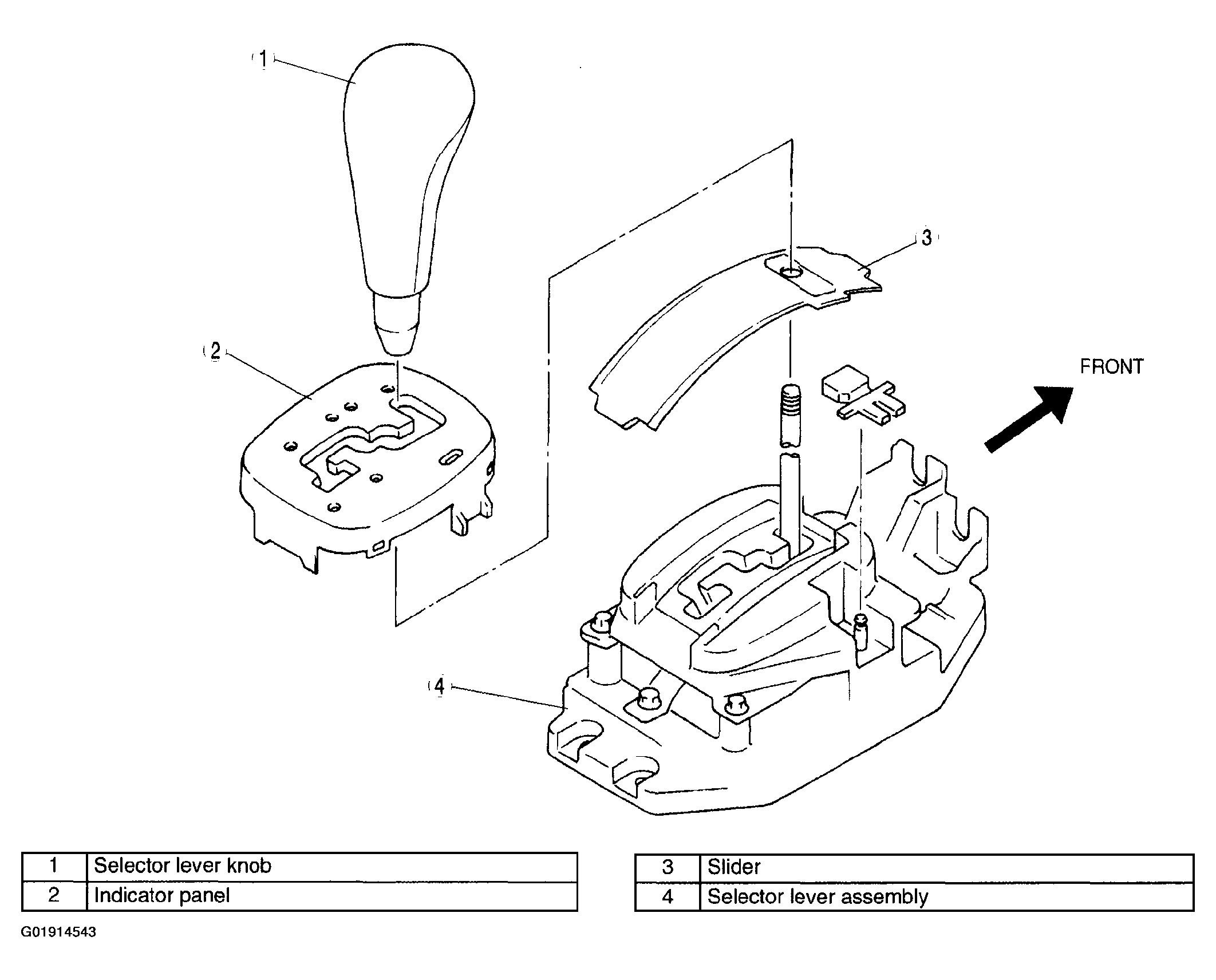

    Fig 2: Exploded View Of Selector Lever - Sport AT
    G01914543Courtesy of MAZDA MOTORS CORP.
