Selector Cable Removal Note

NOTE:
  • Remove the clip shown in the figure before removing the selector cable from manual shaft lever.

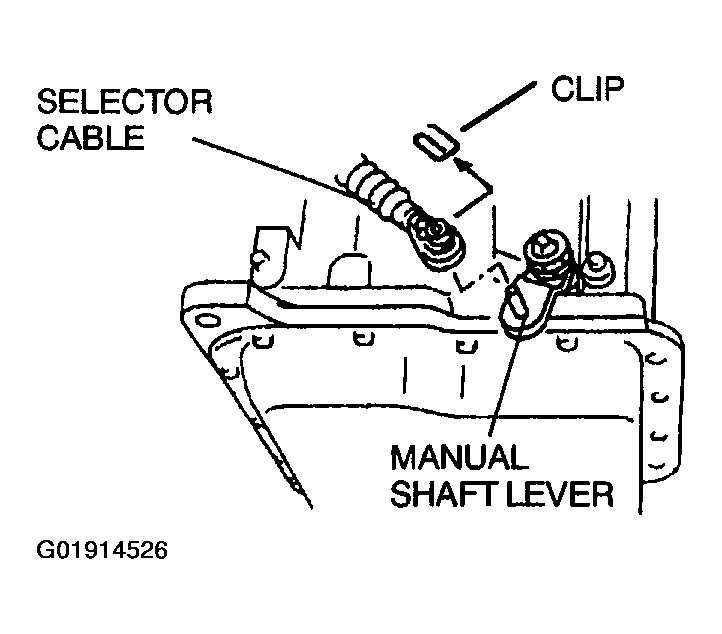

Fig 1: Removing Selector Cable
G01914526Courtesy of MAZDA MOTORS CORP.
