Power Outside Mirror Inspection

  1. Disconnect the power outside mirror connector. (See POWER OUTSIDE MIRROR REMOVAL/INSTALLATION  .)
  2. Apply battery positive voltage to the power outside mirror and inspect the operation of the power outside mirror.
    • If not as specified, replace the climate control unit.

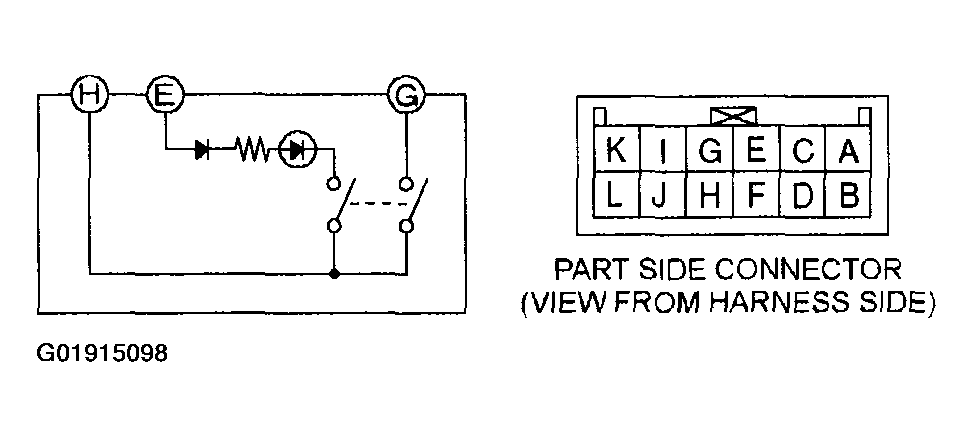

    Fig 1: Power Outside Mirror Operation
    G01915098Courtesy of MAZDA MOTORS CORP.

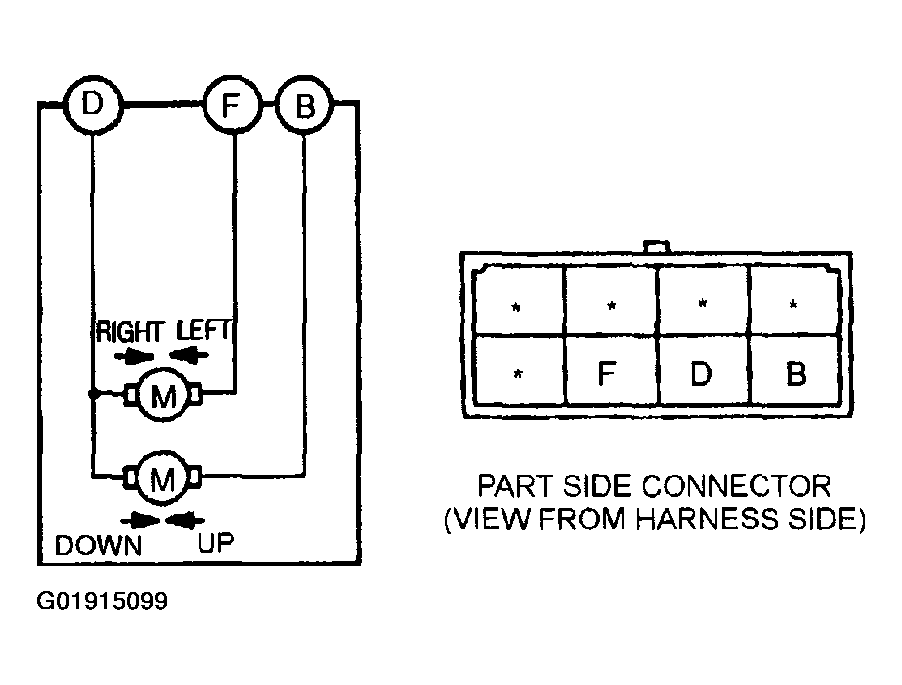

    Fig 2: Inspecting Power Outside Mirror
    G01915099Courtesy of MAZDA MOTORS CORP.
