Power Window SUBSWITCH Inspection

If inspecting the passenger's side, remove the switch panel.
If inspecting the rear, remove the power window subswitch.
Inspect for continuity between the power window subswitch terminals using an ohmmeter.
- If not as specified, replace the power window subswitch.

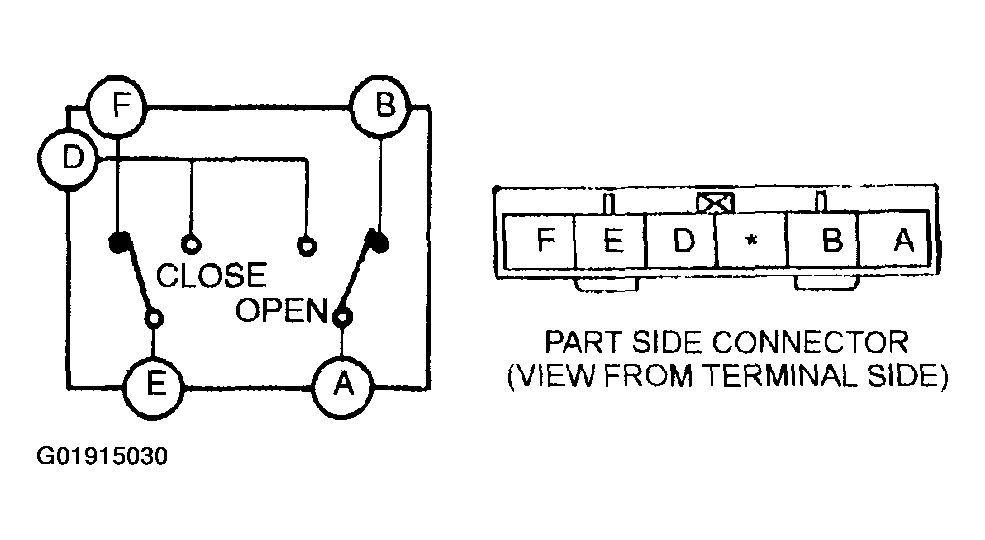

Fig 1: Inspecting Power Window Subswitch - Passenger's Side (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

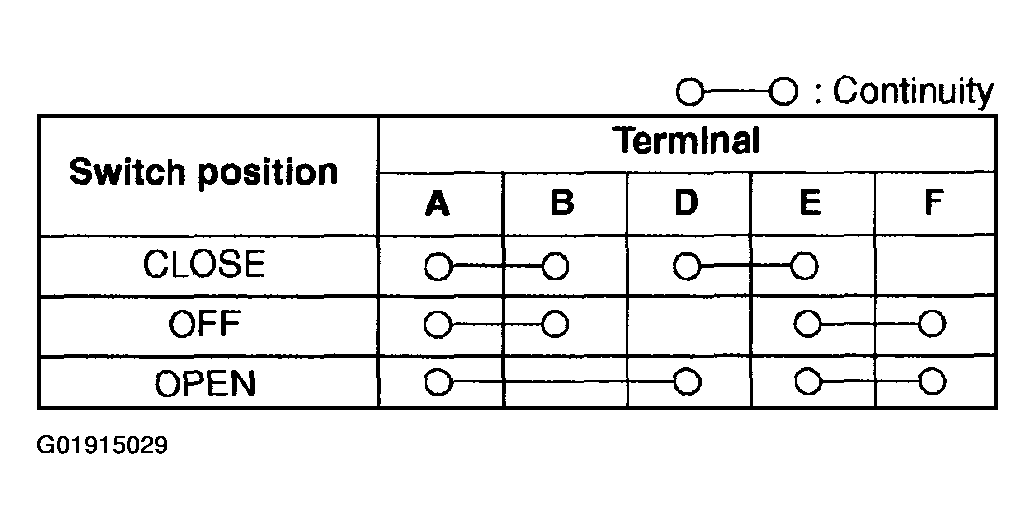

Fig 2: Inspecting Power Window Subswitch - Passenger's Side (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

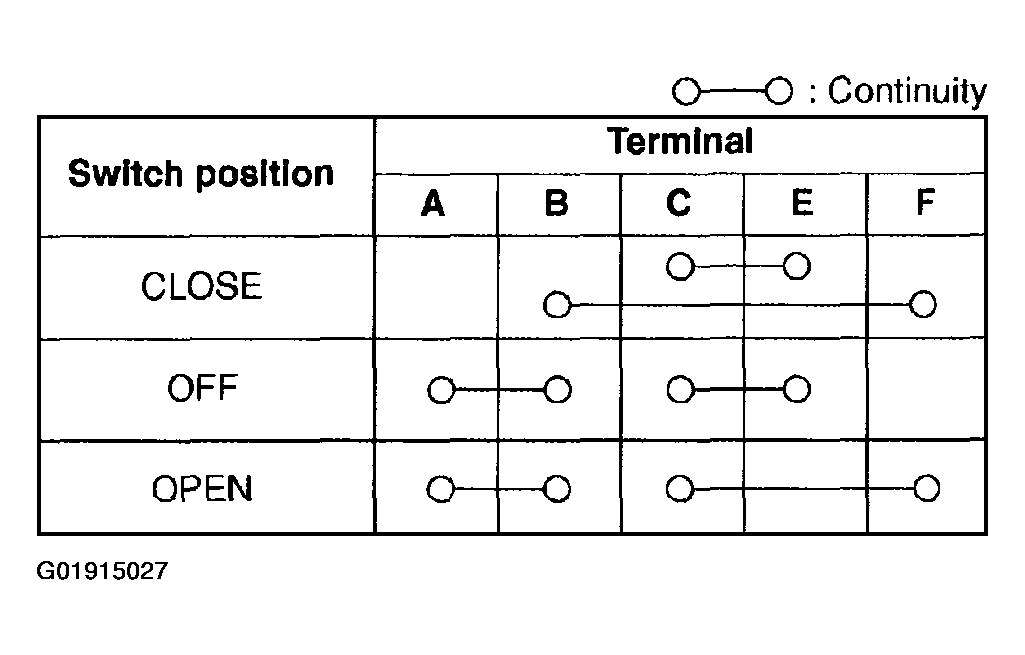

Fig 3: Inspecting Power Window Subswitch - Rear (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

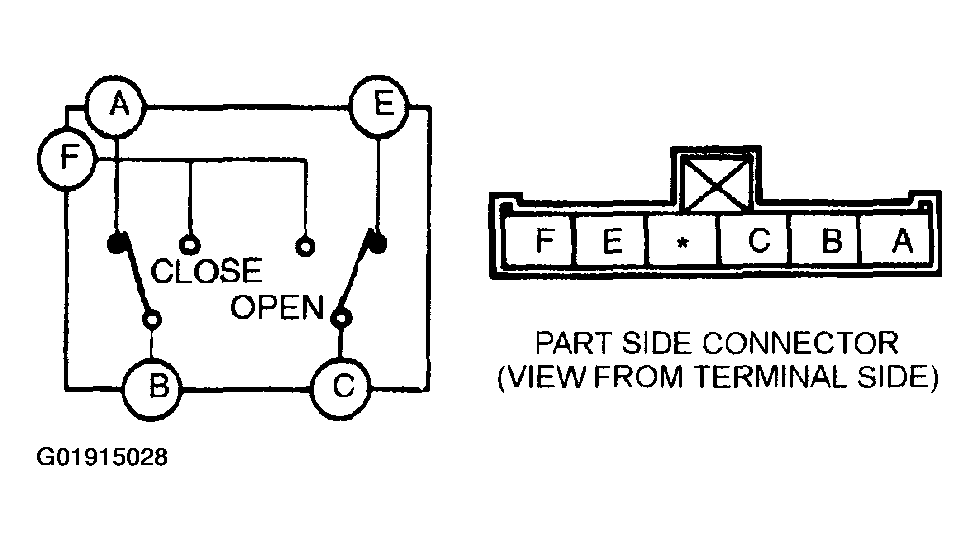

Fig 4: Inspecting Power Window Subswitch - Rear (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
