Quarter Window Glass Removal

Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION .)

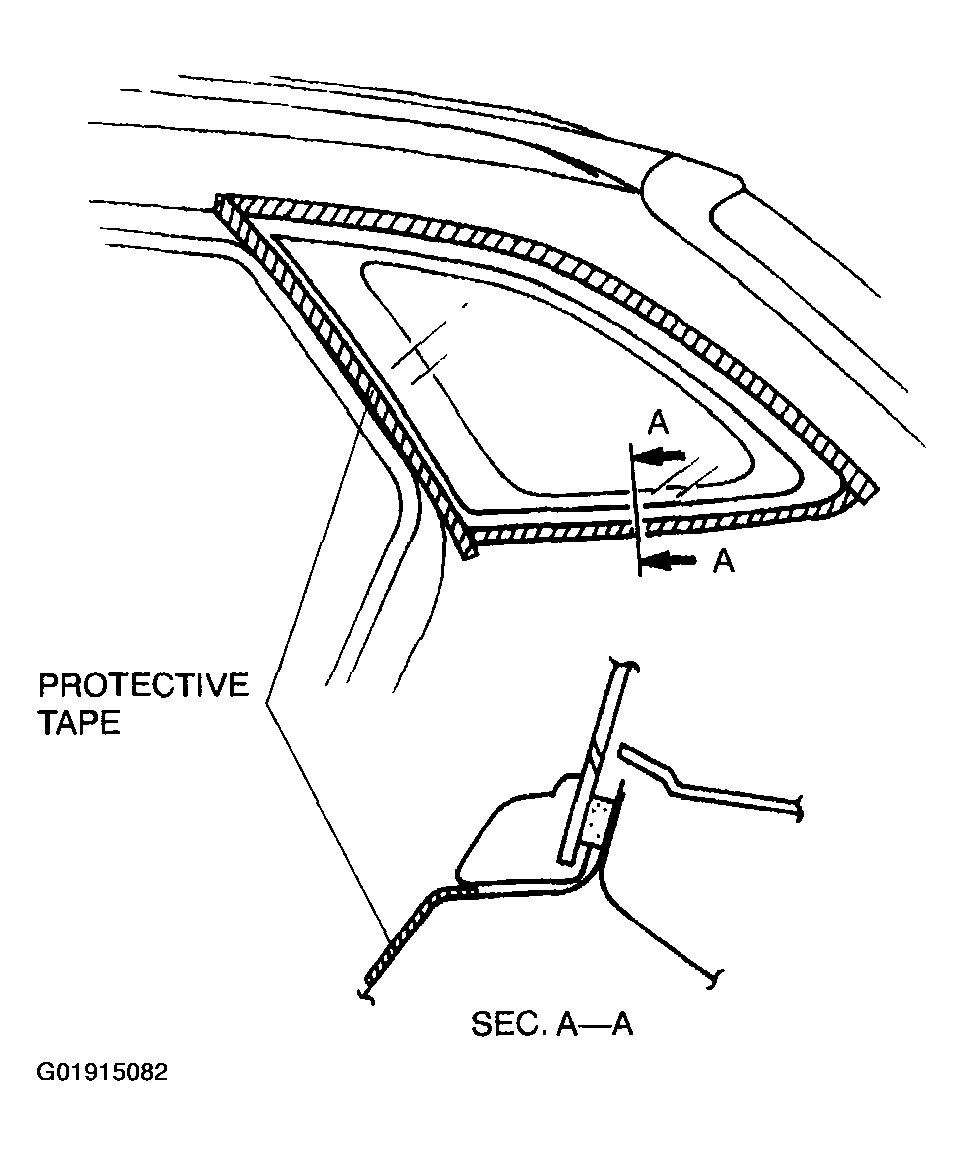

Apply protective tape along the edge of body and quarter window glass.

Fig 1: Applying Protective Tape Along Edge Of Body And Quarter Window Glass
Courtesy of MAZDA MOTORS CORP.

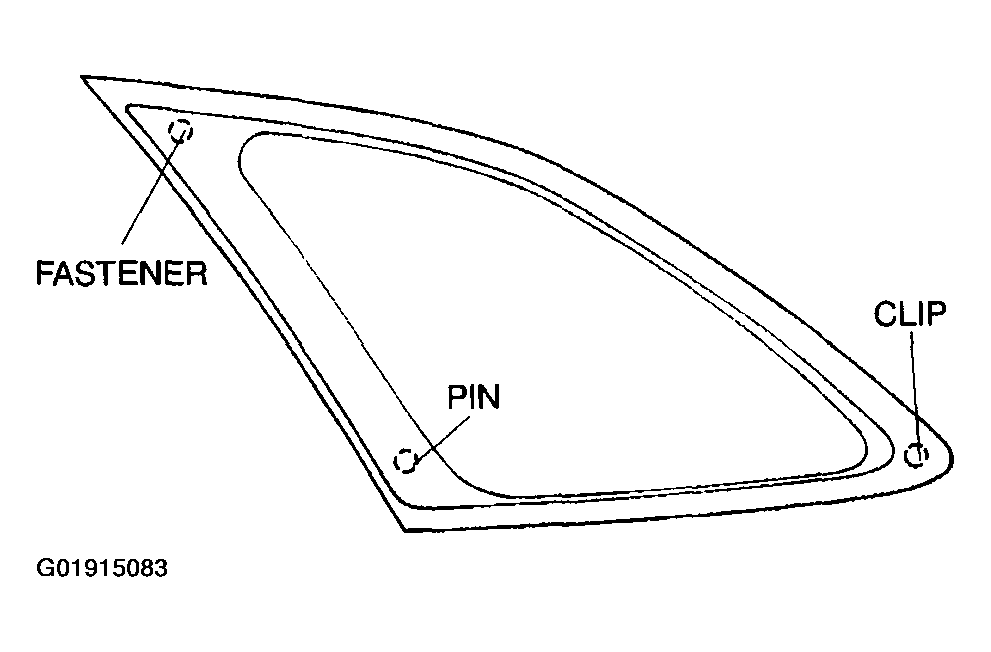

Make a hole through the sealant except fastener, pin and clip from the inside of the vehicle using an awl.

Fig 2: Making Hole Through Sealant Except Fastener, Pin And Clip
Courtesy of MAZDA MOTORS CORP.
Pass the SST (piano wire) through the hole.
WARNING:
- Using a SST (piano wire) with bare hands can cause injury. Always wear gloves when using a SST (piano wire).

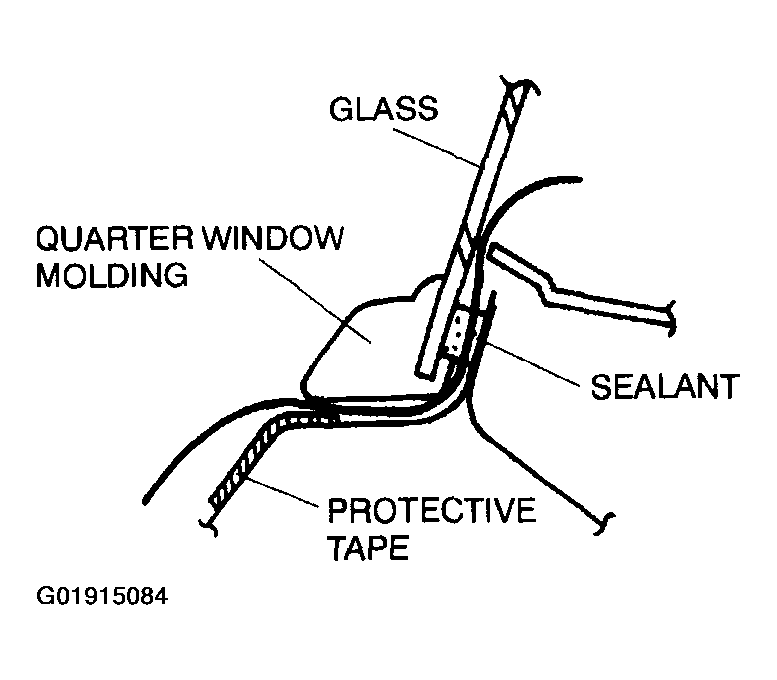

Wind each end of the SST (piano wire) around a bar.

Fig 3: Applying Protective Tape And Sealant
Courtesy of MAZDA MOTORS CORP.

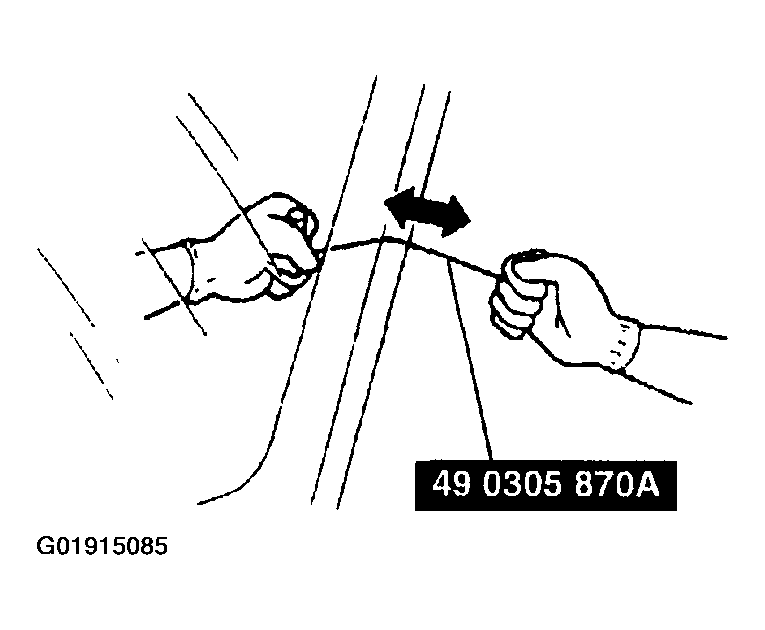

Working with another person, saw through the sealant around the edge of the glass, being careful to not damage the vehicle body.
NOTE:
- Use a long sawing action to spread the work over the whole length of the SST (piano wire) to prevent it from breaking.
Fig 4: Sawing Through Sealant Around Edge Of Glass
Courtesy of MAZDA MOTORS CORP.

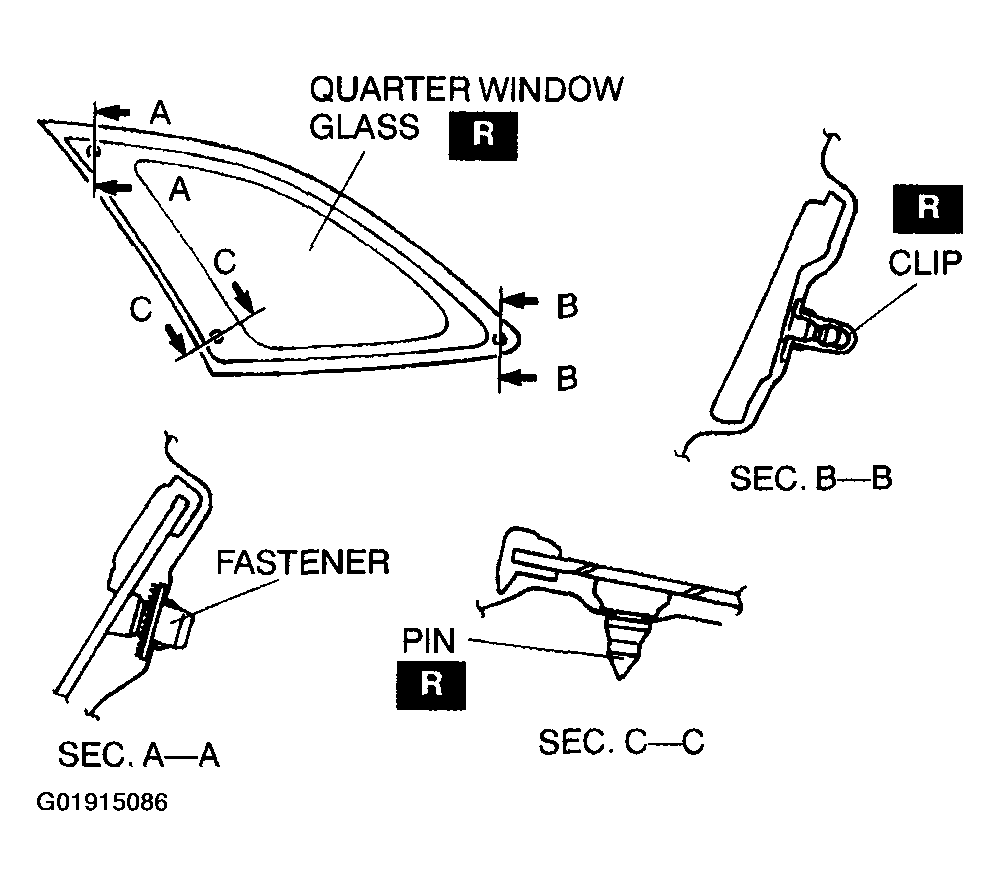

Pull the quarter window glass, then disengage the fastener, pin and clip.
Remove the fastener and pin from the body.

Fig 5: Removing Fastener And Pin From Body
Courtesy of MAZDA MOTORS CORP.
