Not Reusing Rear Window Glass

  1. Use a tool like that shown in the figure, and insert the blade into the sealant.
    NOTE:
    • For the areas of the sealant that are difficult to cut, use the SST  (piano wire) and follow the procedures under "Reusing rear window glass".
  2. Pull through the sealant around the edge of the glass.
  3. Remove the glass.

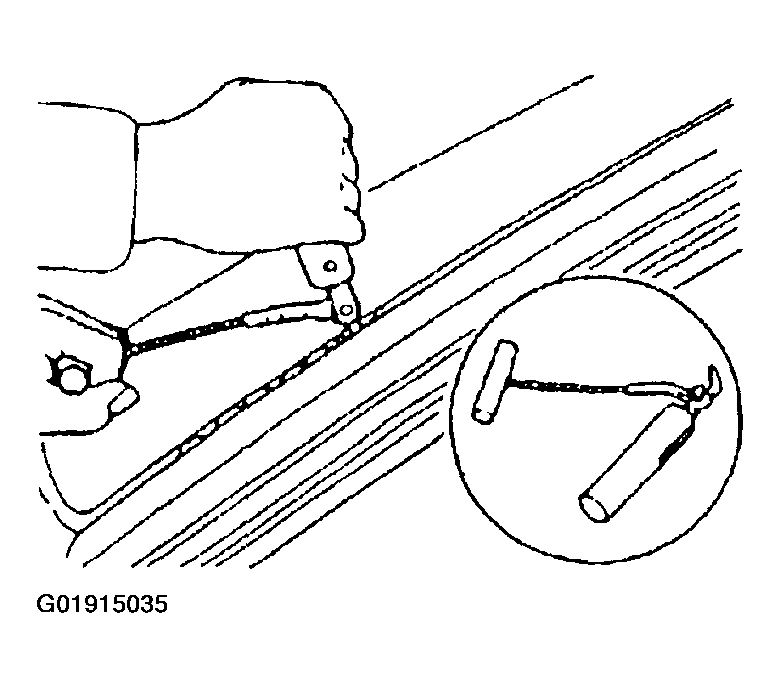

    Fig 1: Removing Glass
    G01915035Courtesy of MAZDA MOTORS CORP.
