Windshield Removal: Notes

  1. Remove the rearview mirror. (See REARVIEW MIRROR REMOVAL  .)
  2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION .)
  4. Apply protective tape along the edge of the body to protect it from damage.
  5. Apply protective tape to the dashboard to protect it from damage.
  6. Cut the lip of the windshield molding using a razor.
    WARNING:
    • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
    NOTE:
    • The windshield molding is a replacement part.

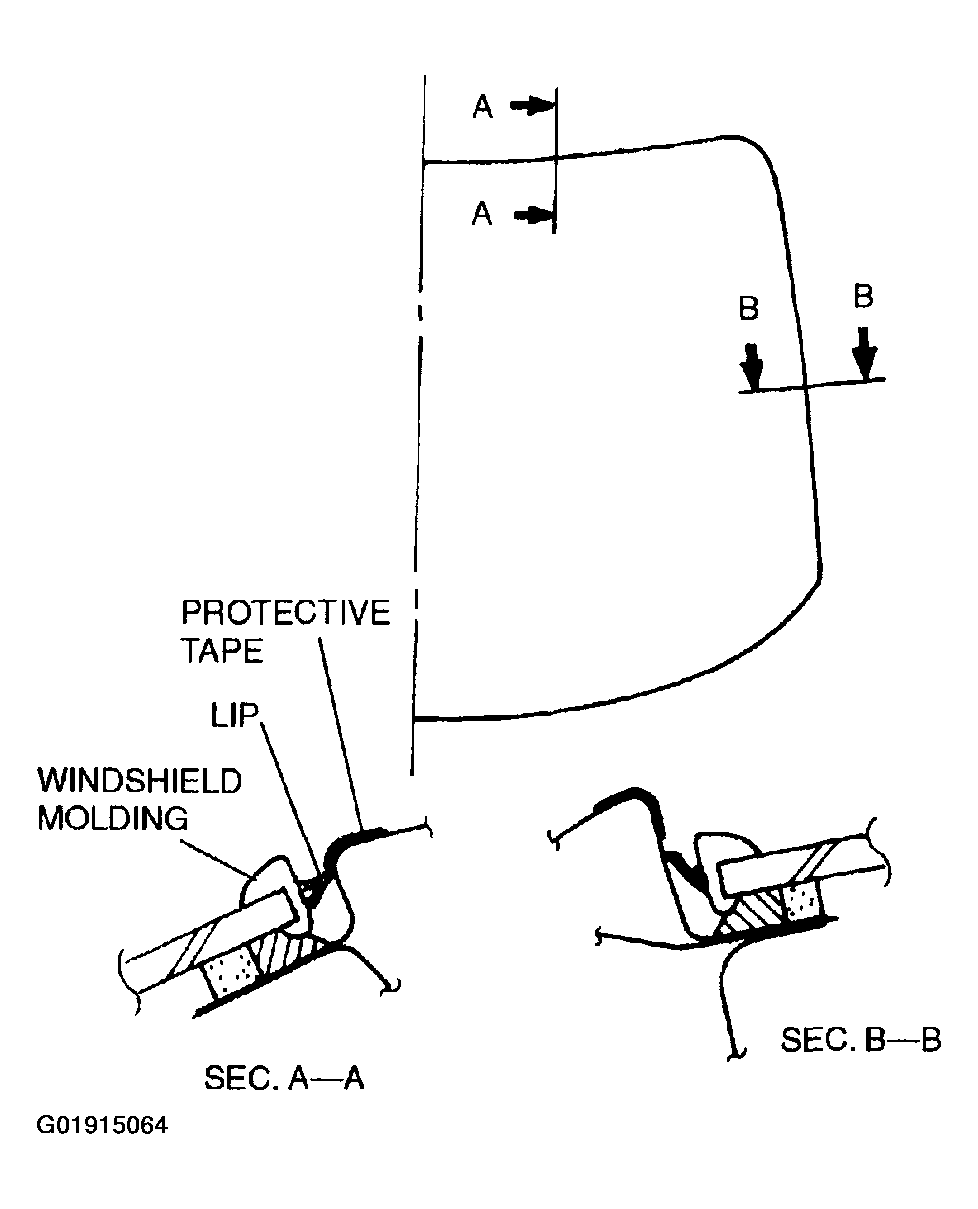

    Fig 1: Apply Protective Tape
    G01915064Courtesy of MAZDA MOTORS CORP.
