Reusing Windshield

NOTE:

Before removing the windshield from the body, mark the position of the windshield by affixing tape to the windshield and body panel.

Make a hole through the sealant except fasteners and spacers from the inside of the vehicle using an awl.

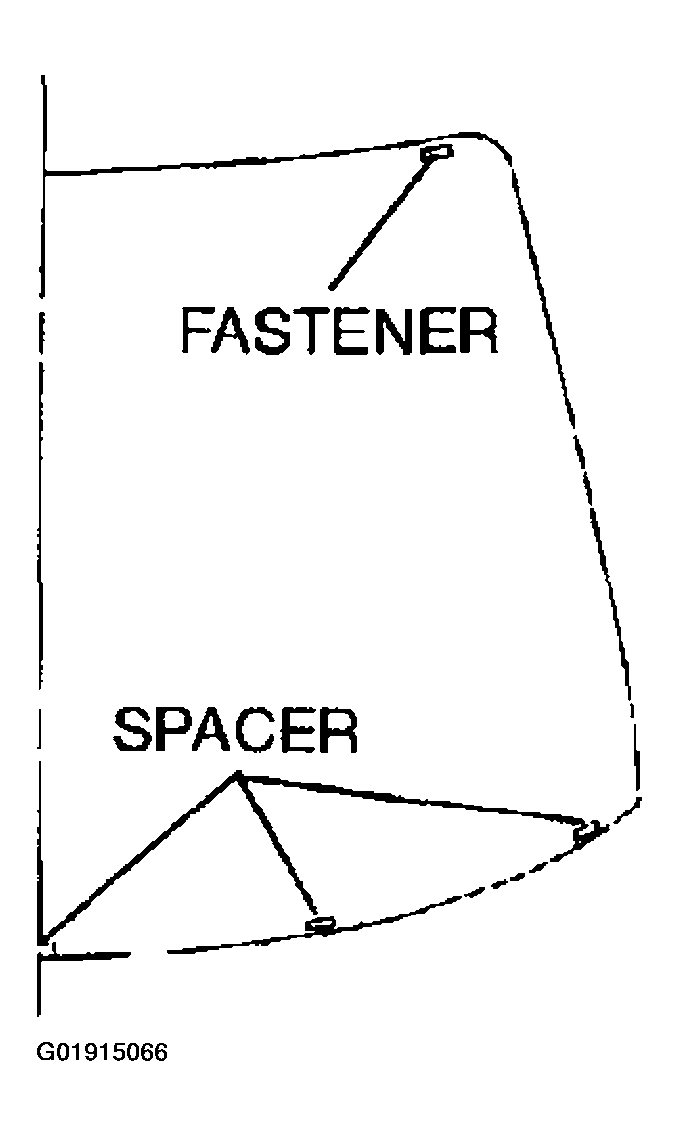

Fig 1: Identifying Faster And Spacer
Courtesy of MAZDA MOTORS CORP.
Pass the SST (piano wire) through the hole.
WARNING:
- Using a SST (piano wire) with bare hands can cause injury. Always wear gloves when using a SST (piano wire).
Wind each end of the SST (piano wire) around a bar.

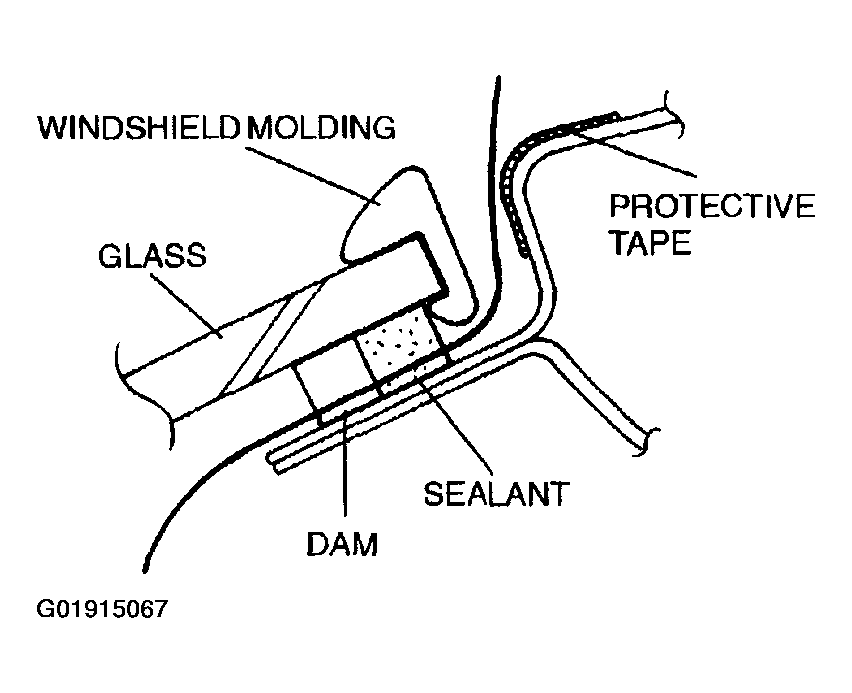

Fig 2: Applying Protective Tape
Courtesy of MAZDA MOTORS CORP.
Working with another person, saw through the sealant around the edge of the glass.
NOTE:
- Use a long sawing action to spread the work over the whole length of the SST (piano wire) to prevent it from breaking.
Remove the windshield.

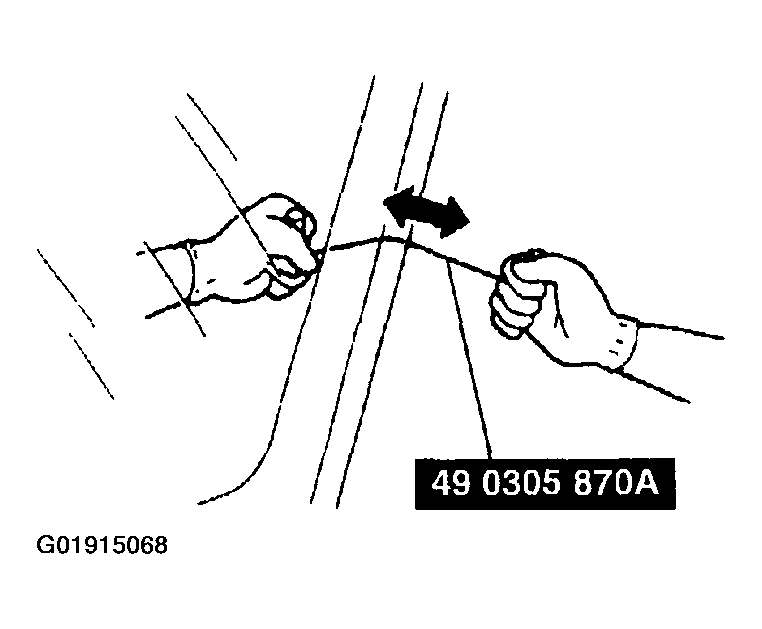

Fig 3: Removing Windshield
Courtesy of MAZDA MOTORS CORP.
Remove the dam from the windshield.
Remove the fasteners.
Remove spacers A and B.

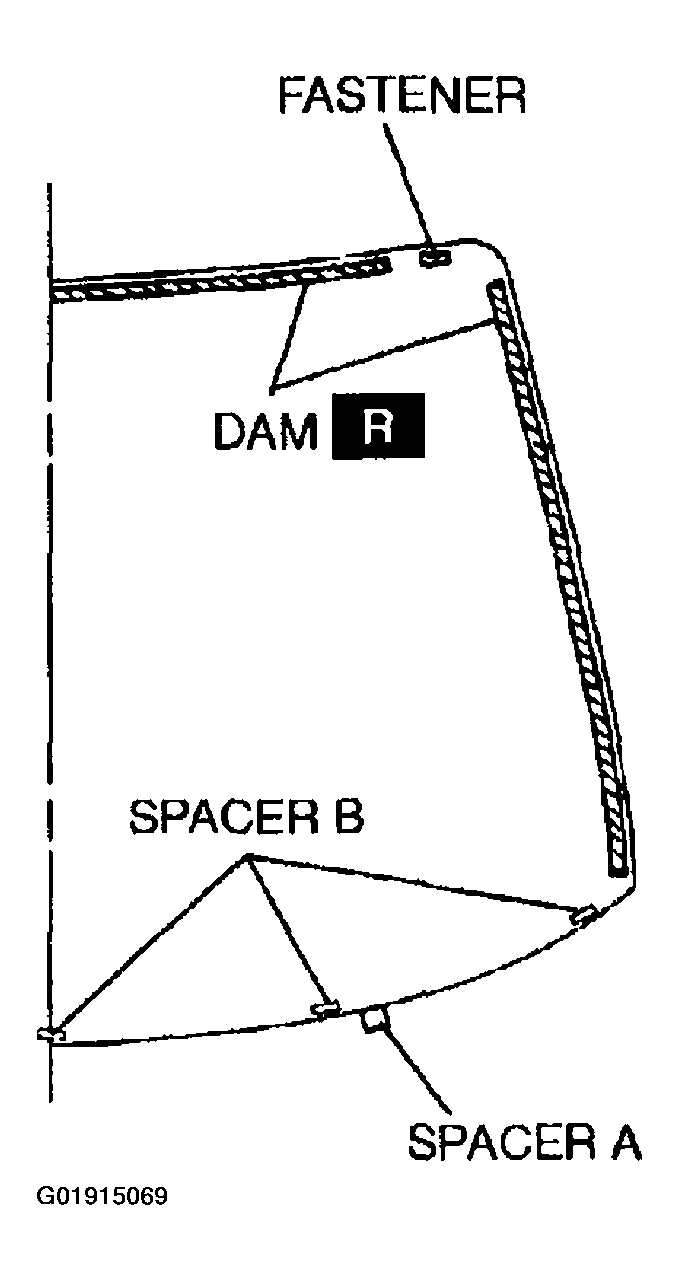

Fig 4: Removing Faster And Spacer
Courtesy of MAZDA MOTORS CORP.
