Specification (Unloaded)

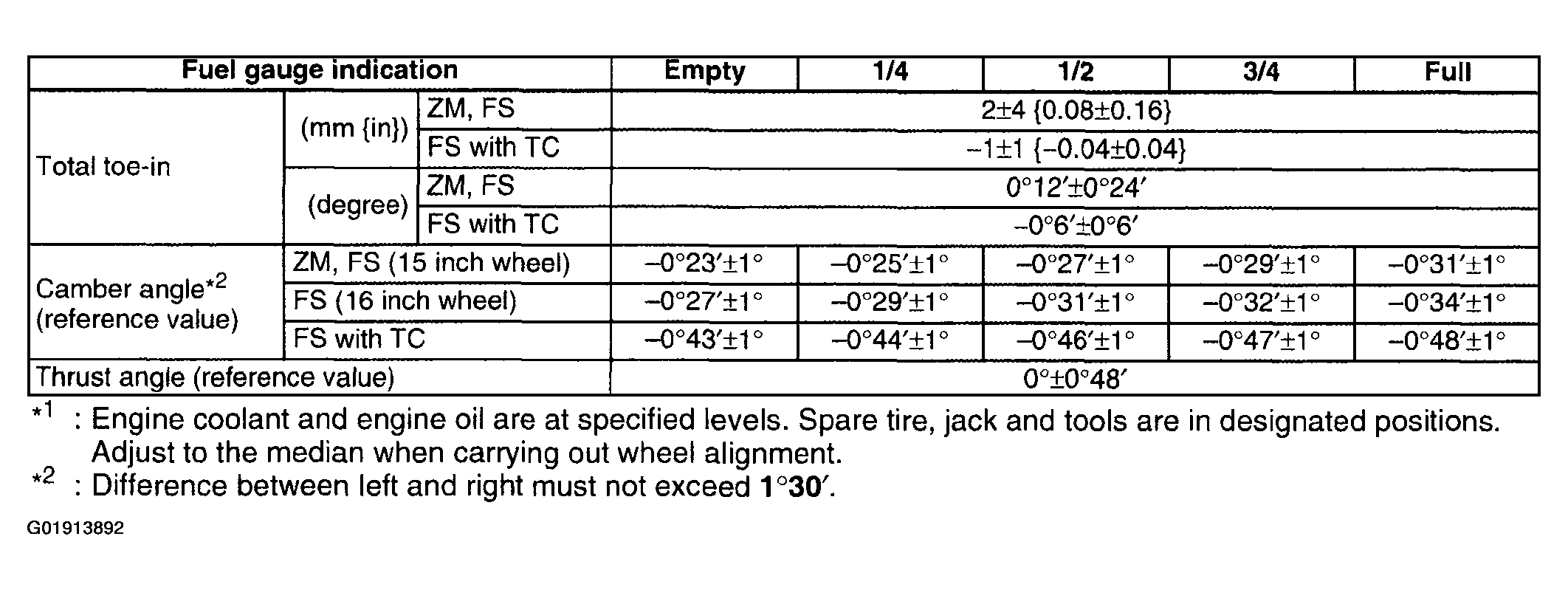

Fig 1: Rear Wheel Alignment Specifications (Unloaded)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
