Common Connector List

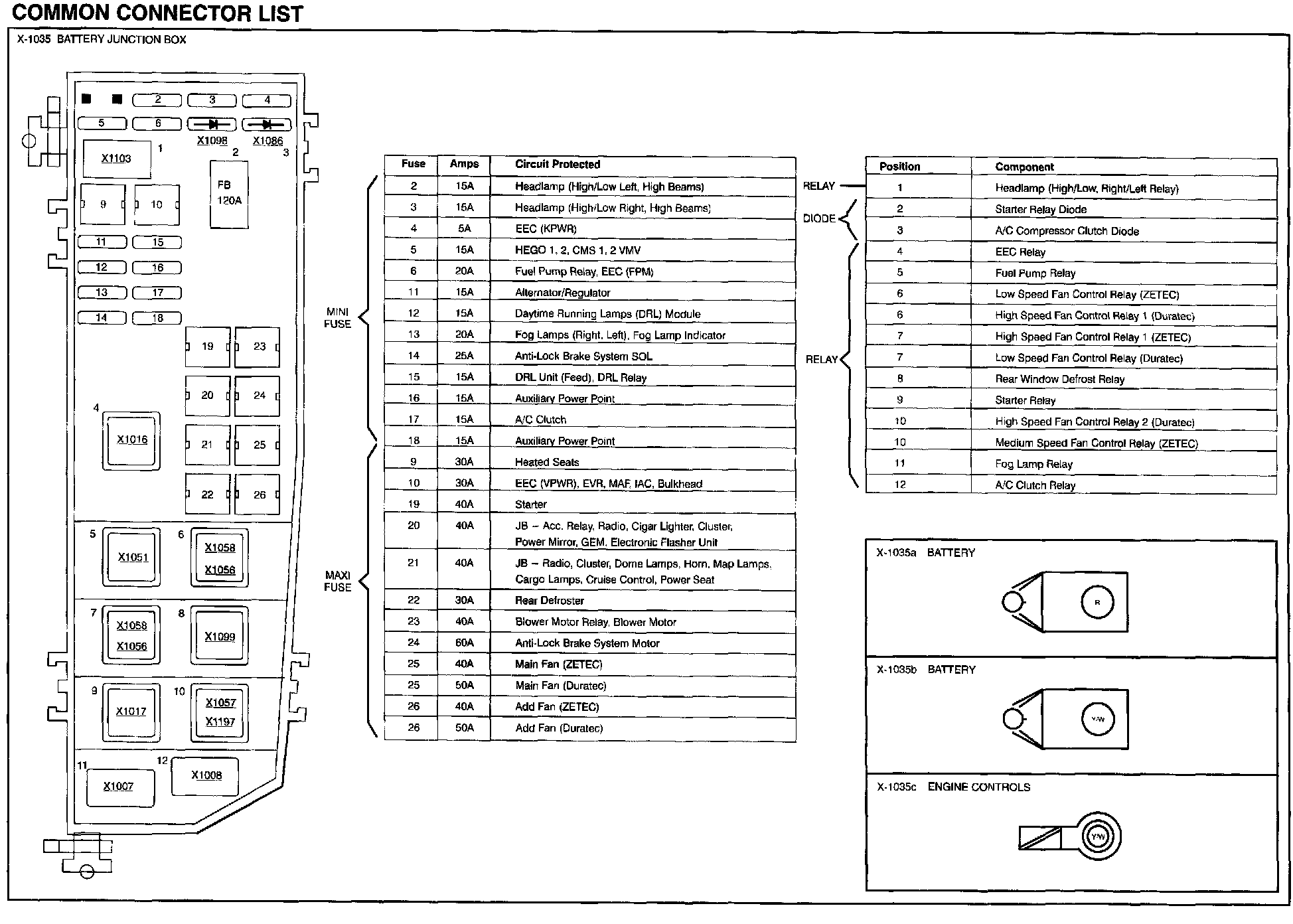

X-1035 - X-1035c:

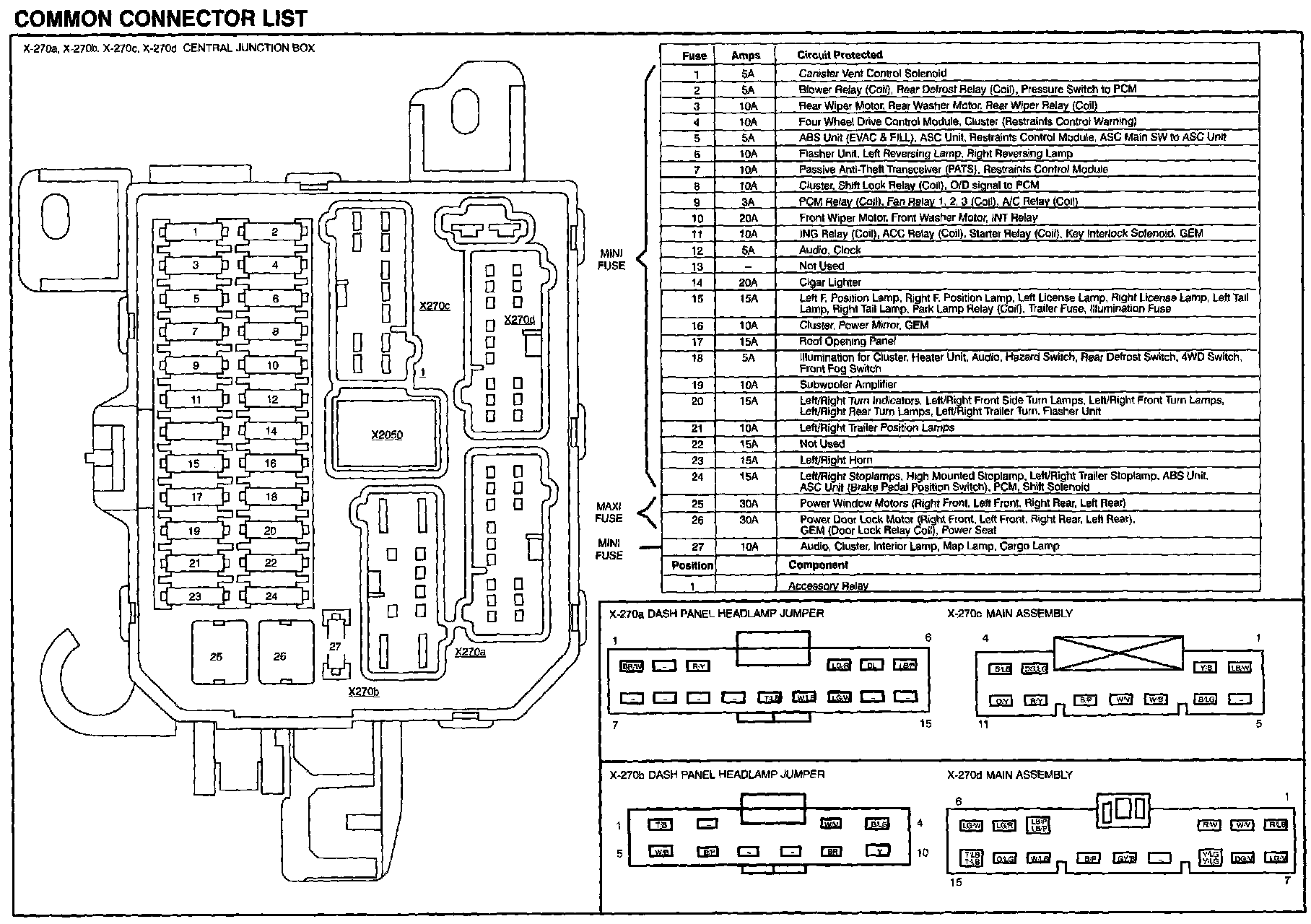

X-270a - X-270d:

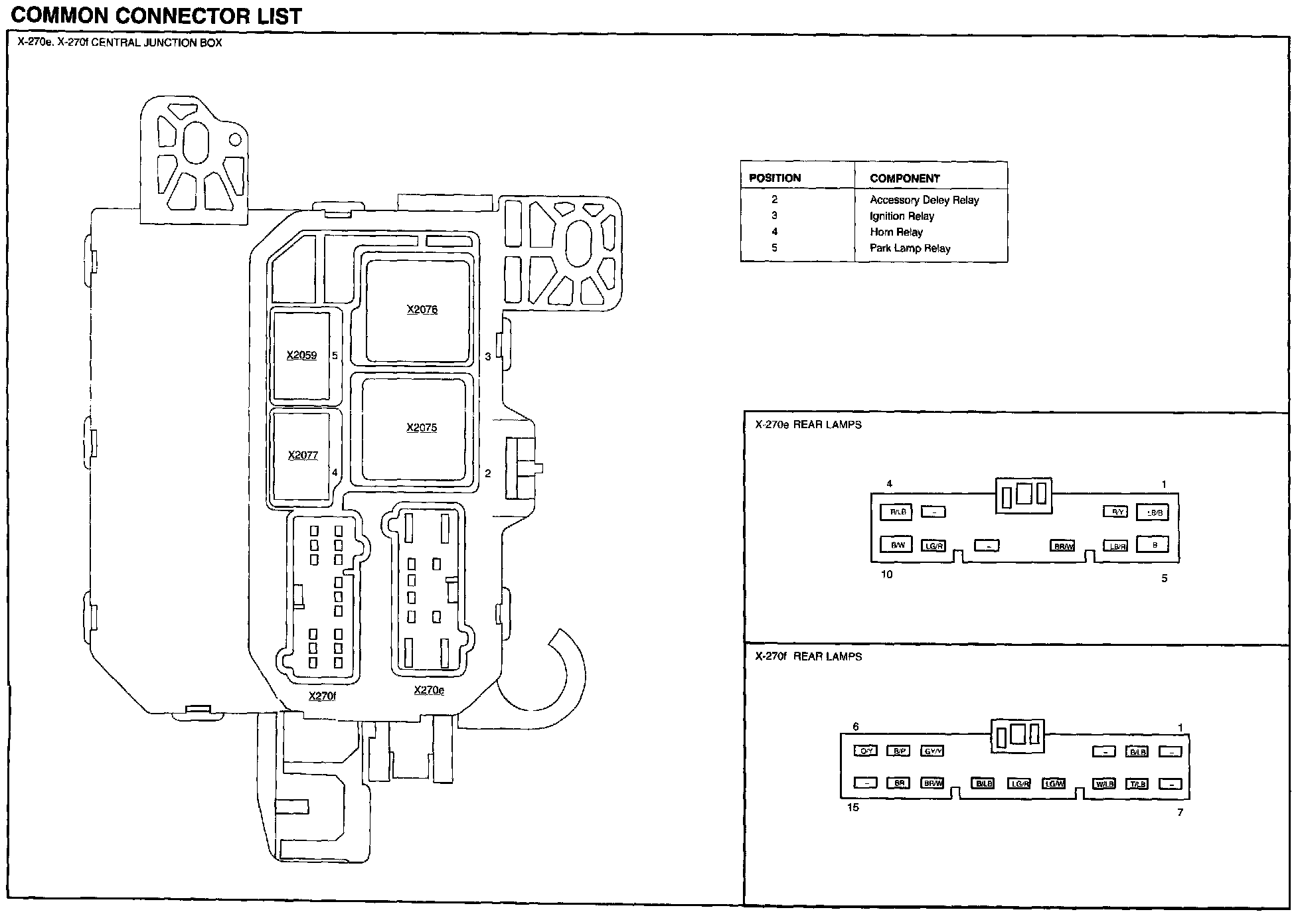

X-270e - X-270f:

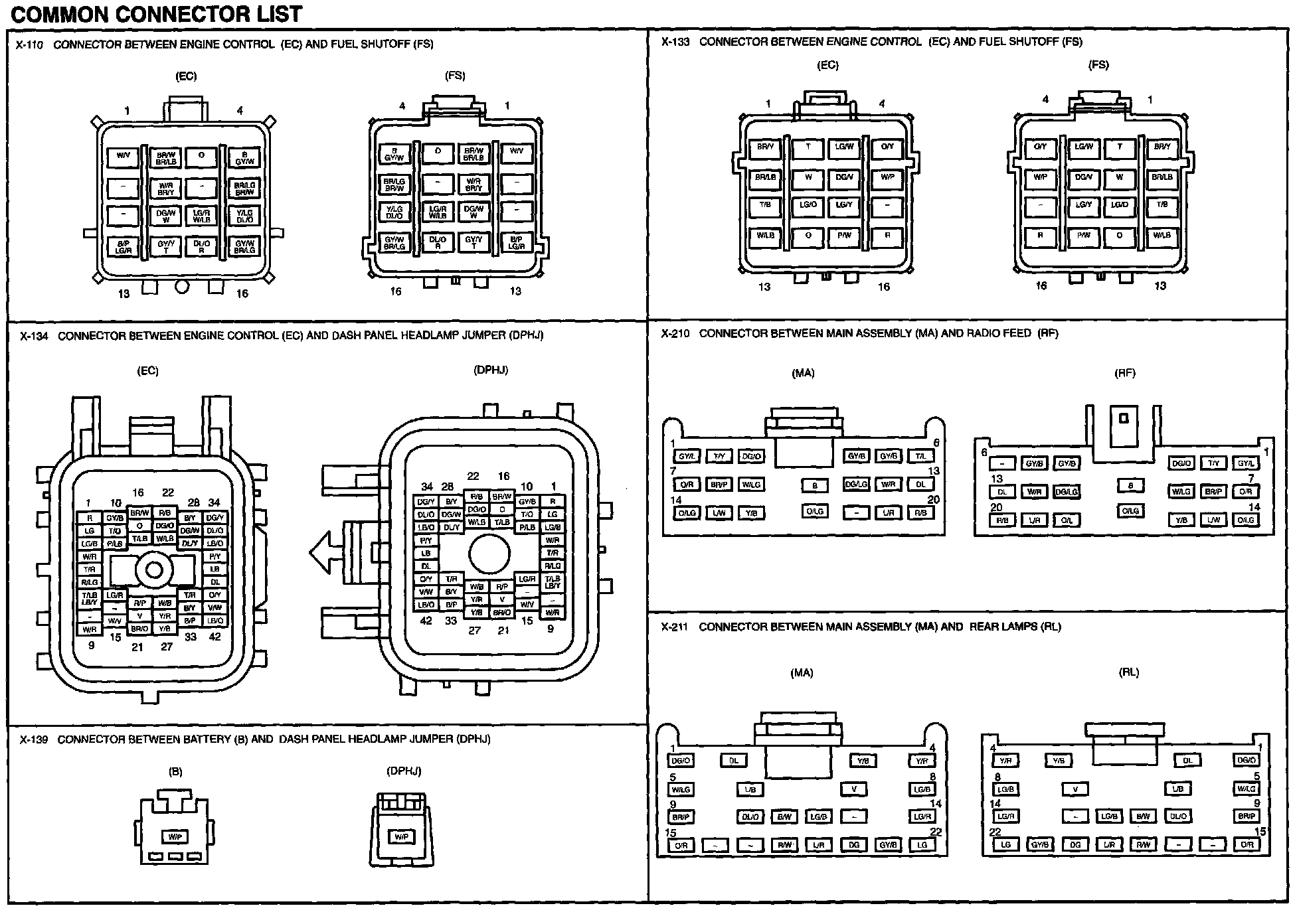

X-110 - X-211:

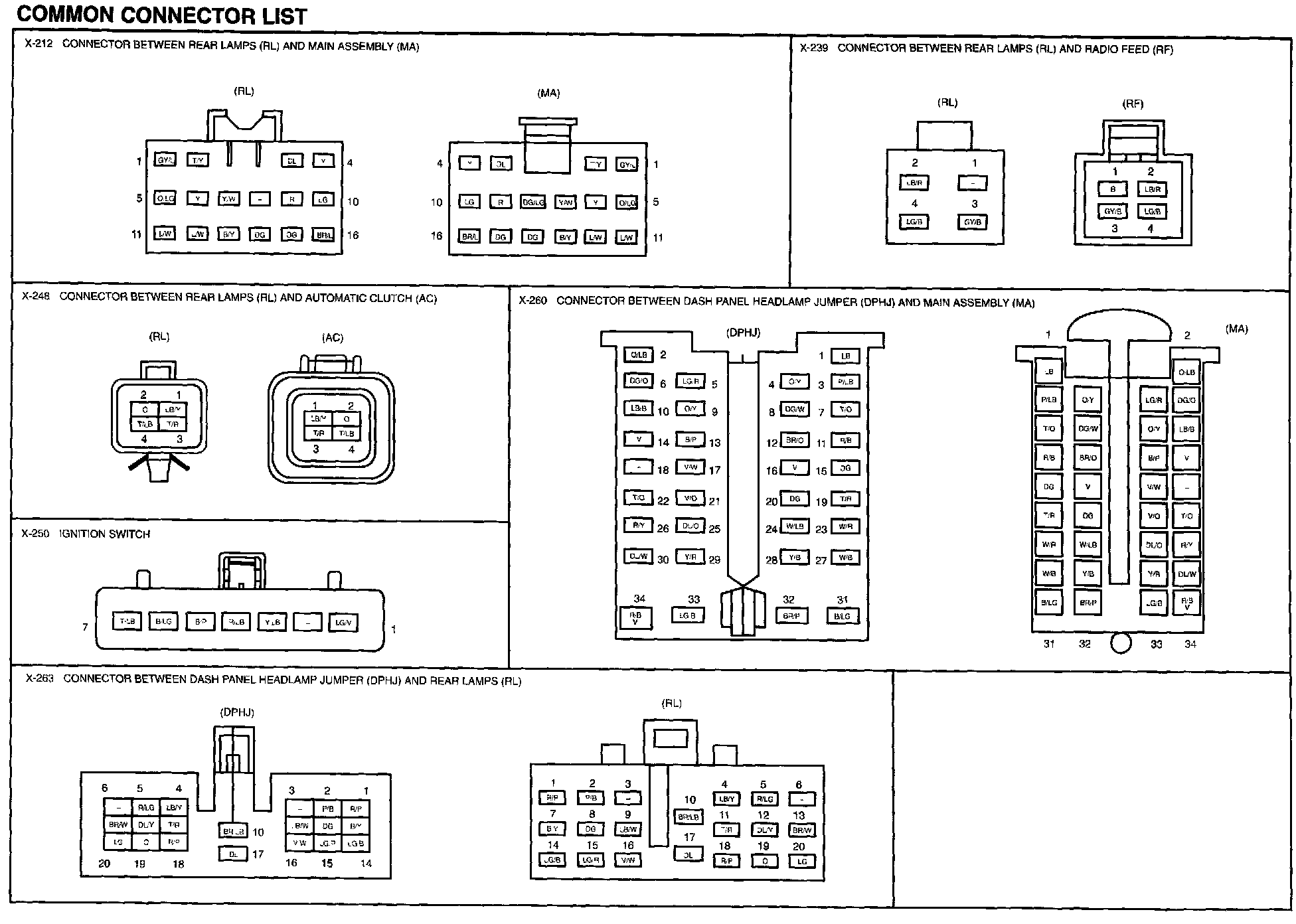

X-212 - X-263:

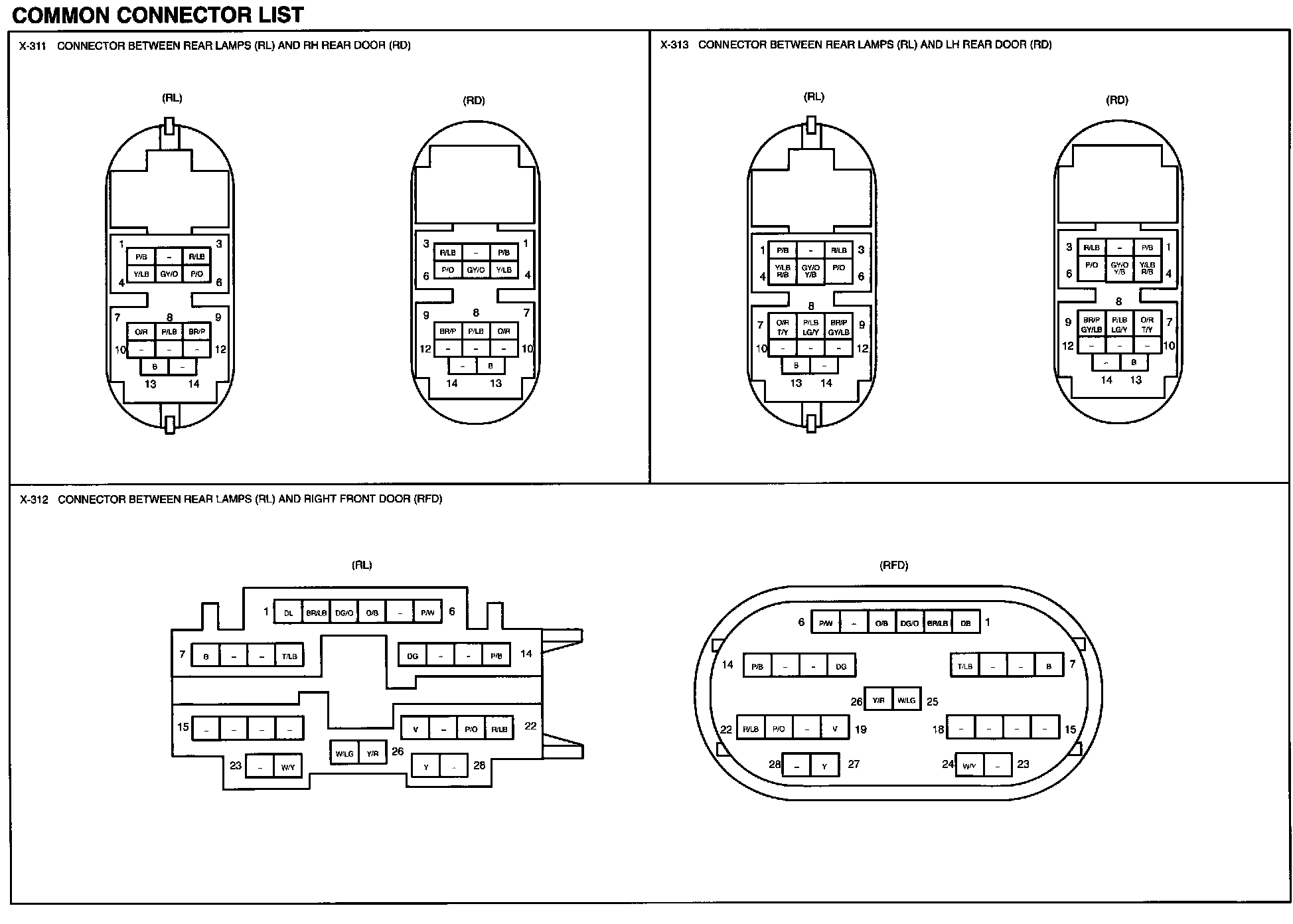

X-311 - X-313:

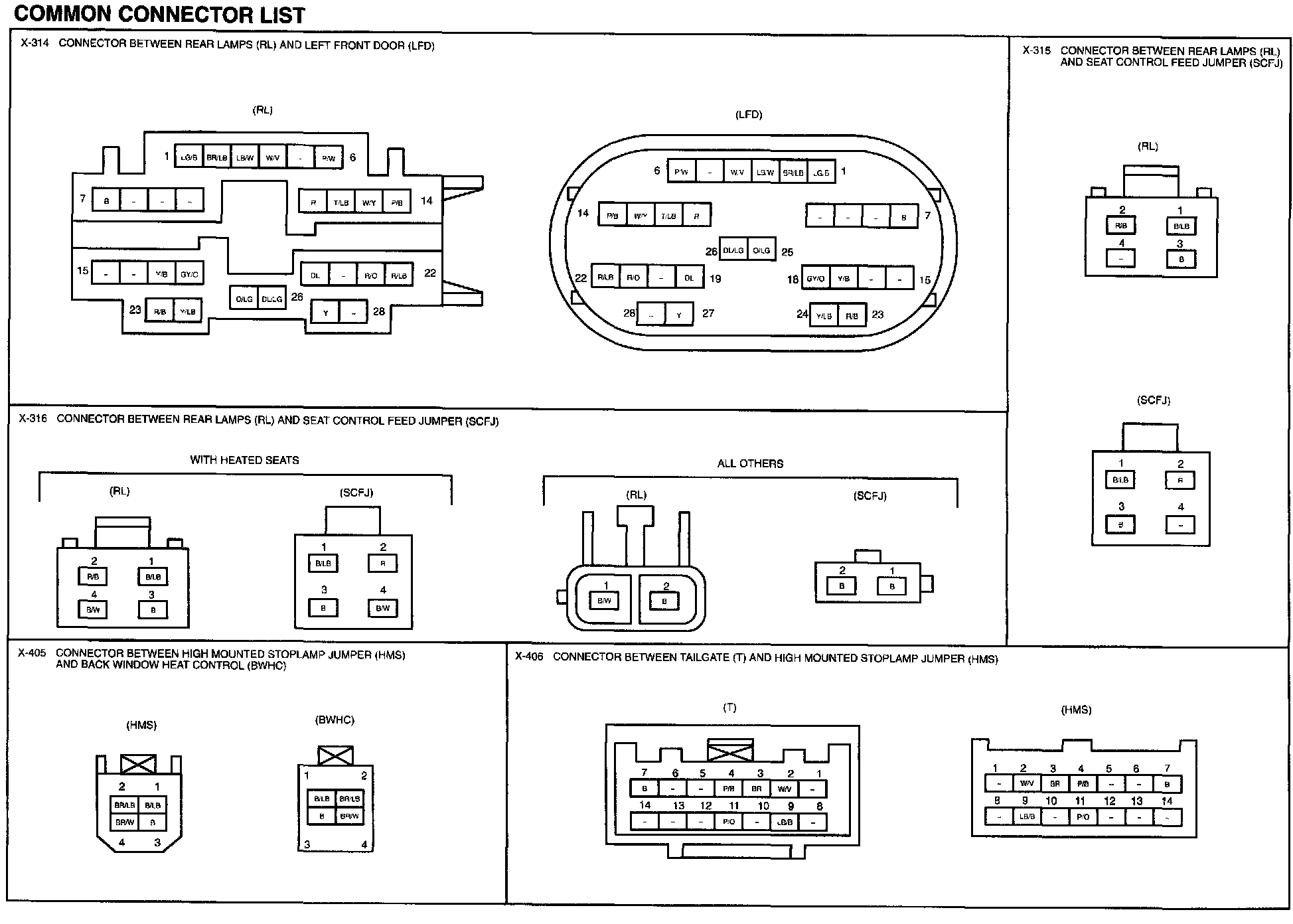

X-314 - X-406:

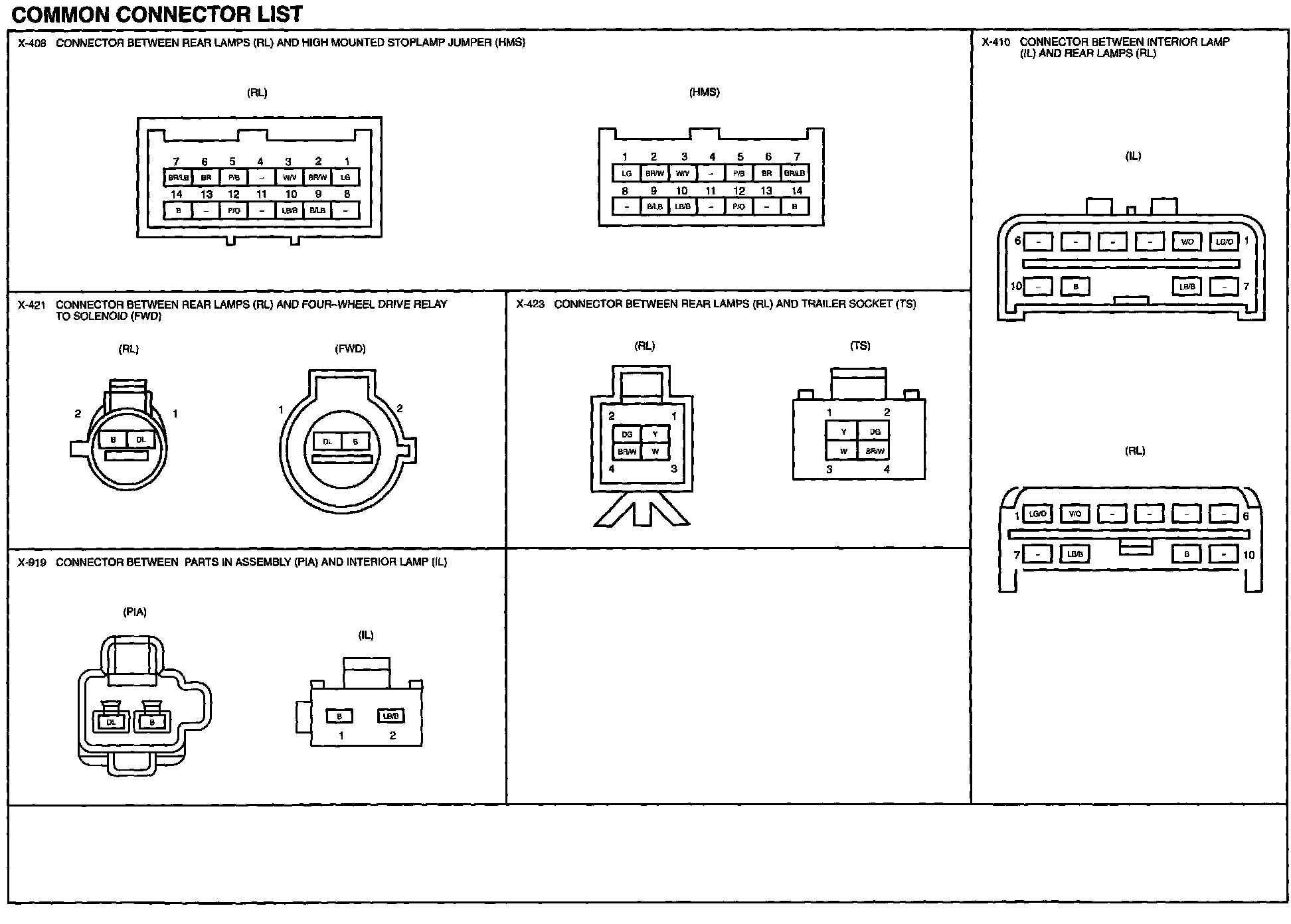

X-408 - X-919:
