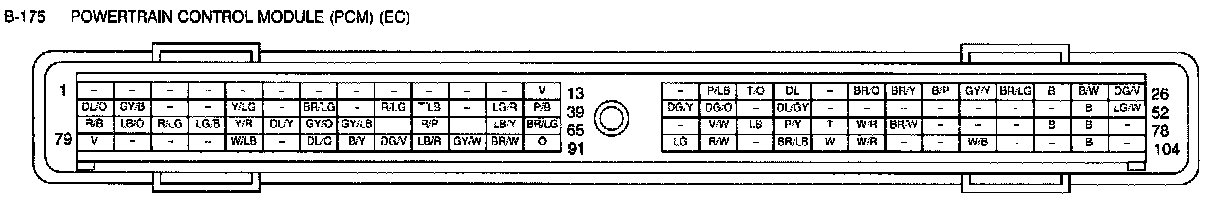

Engine Control Module

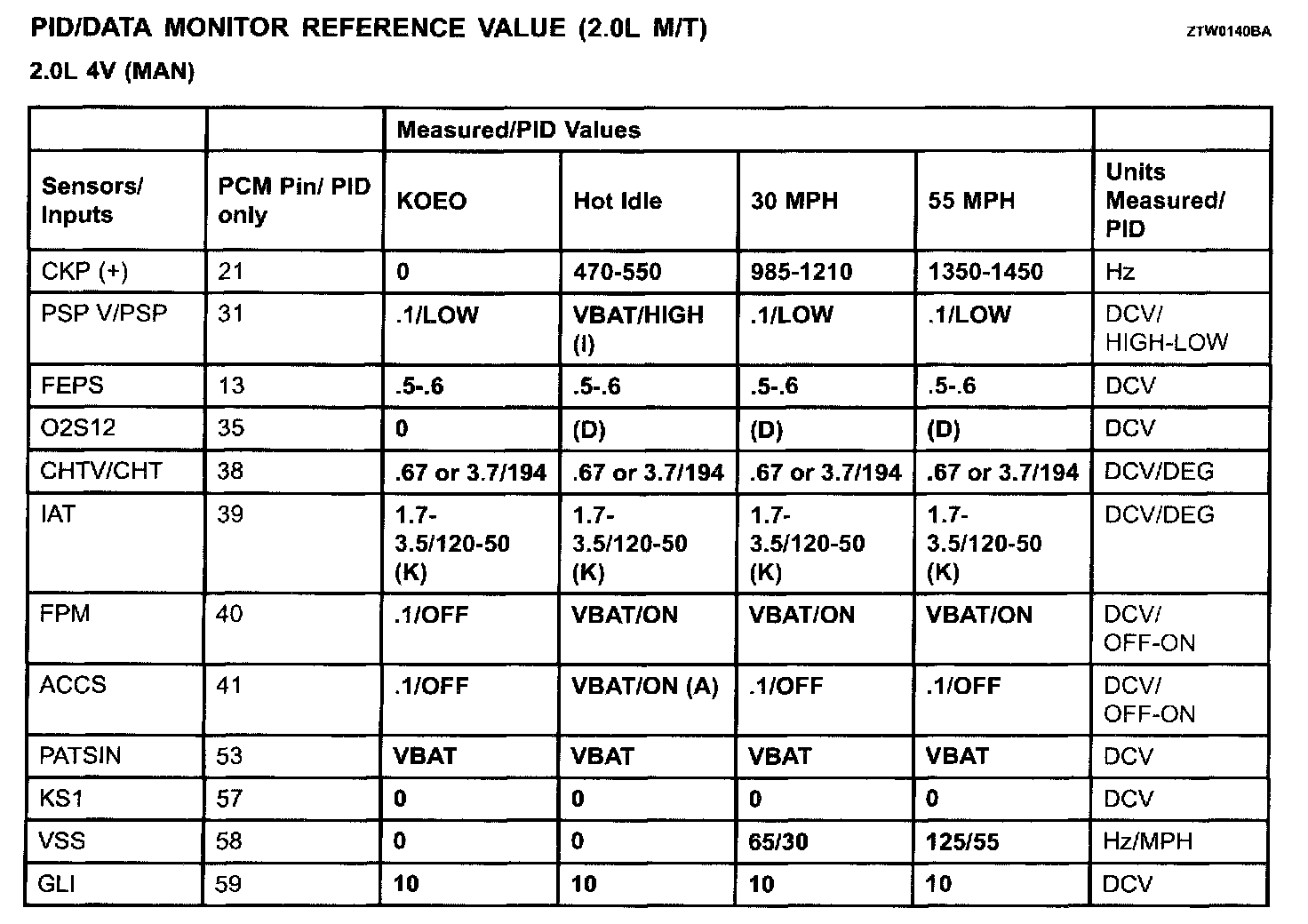

PID/Data Monitor Reference Value (2.0L M/T):

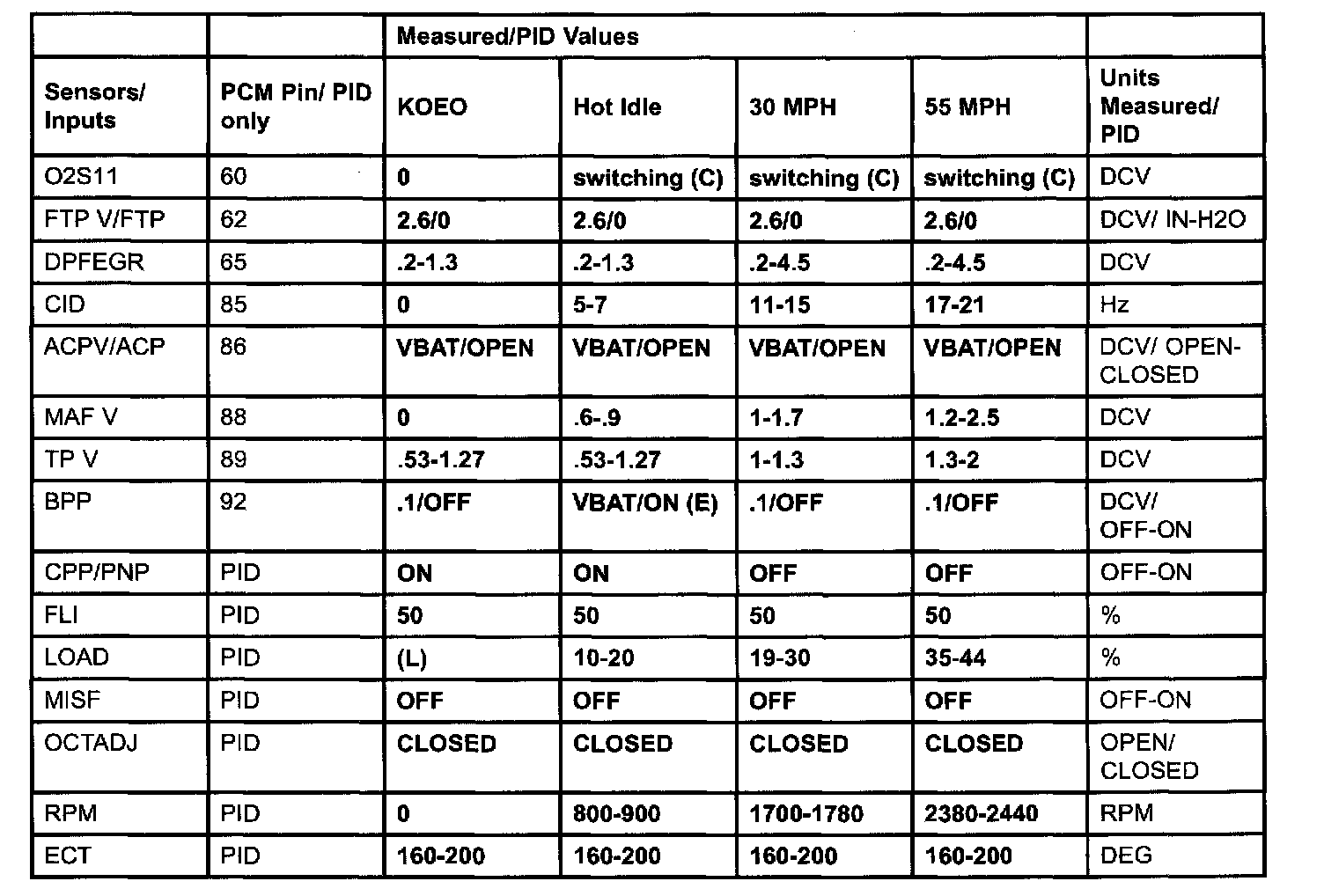

PID/Data Monitor Reference Value (2.0L M/T):

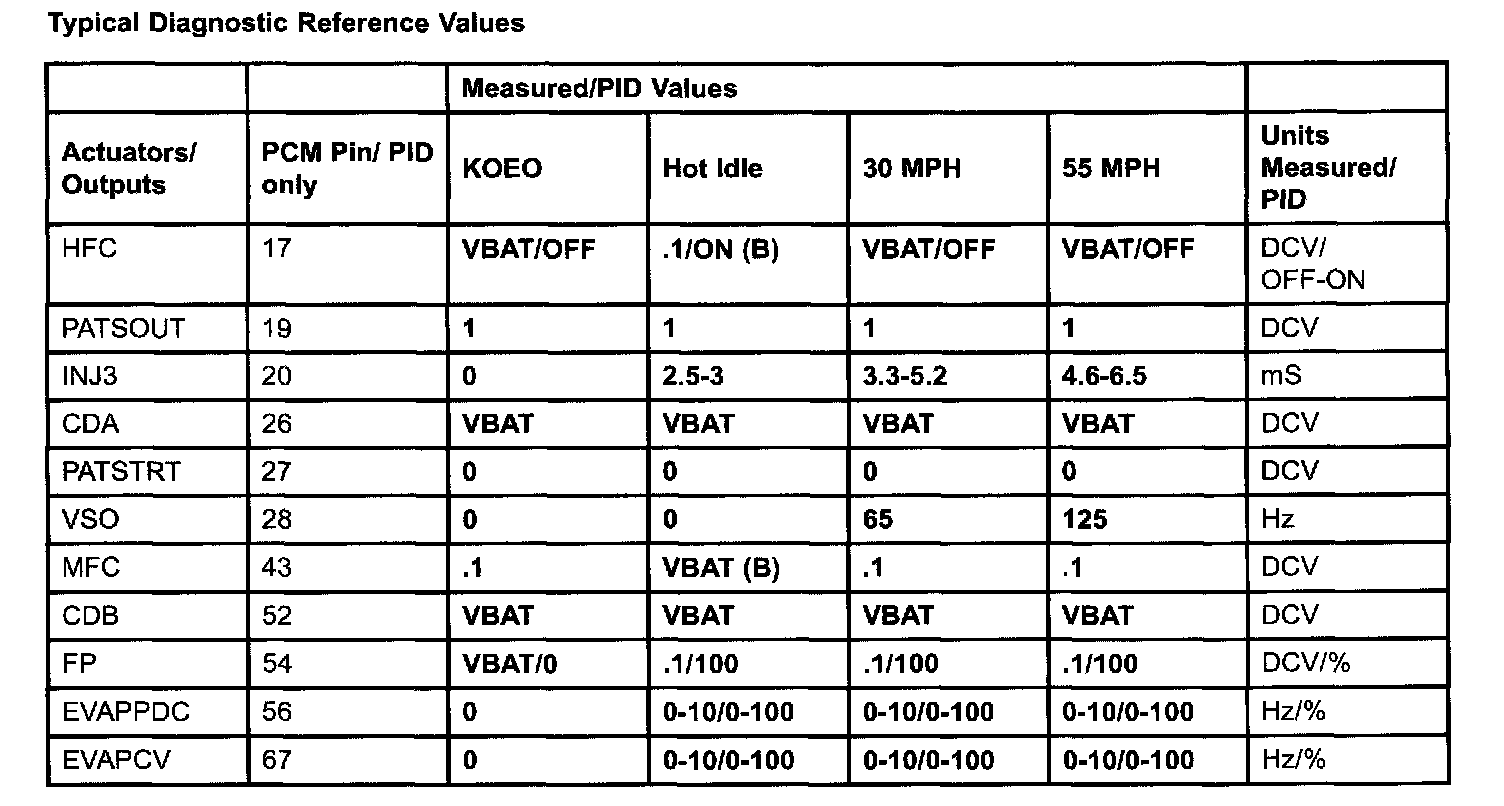

Typical Diagnostic Reference Values:

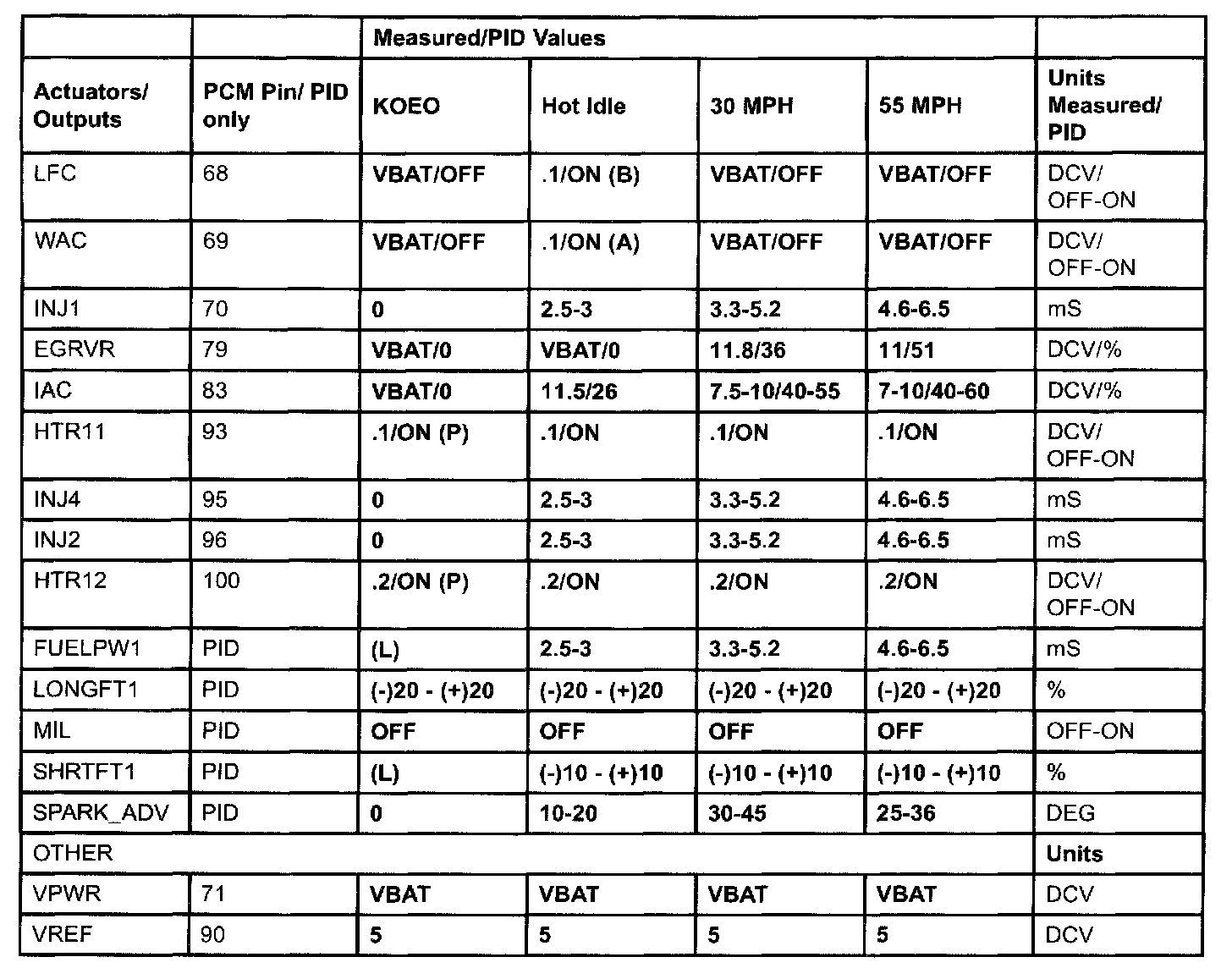

Typical Diagnostic Reference Values:

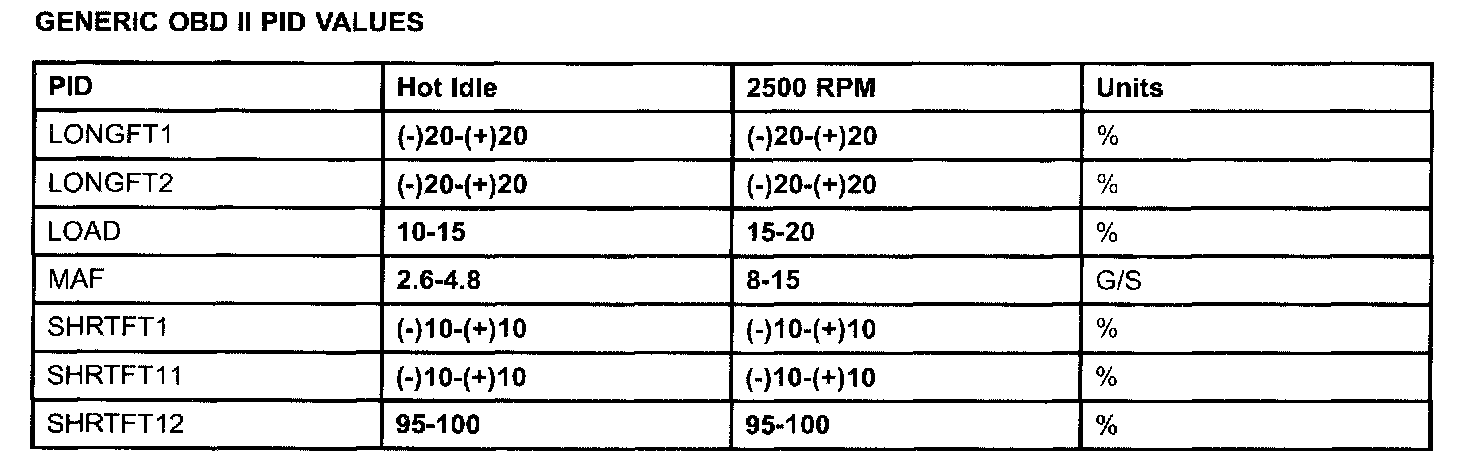

Generic OBD II PID Values:
