Direction of View For Connector




Part-side connector
Direction of view is from the terminal side.
* : Part names are shown only when there are multiple connector drawings.




Vehicle-harness-side connector
Direction of view is from the harness side.9
* : Part names are shown only when there are multiple connector drawings.




Other

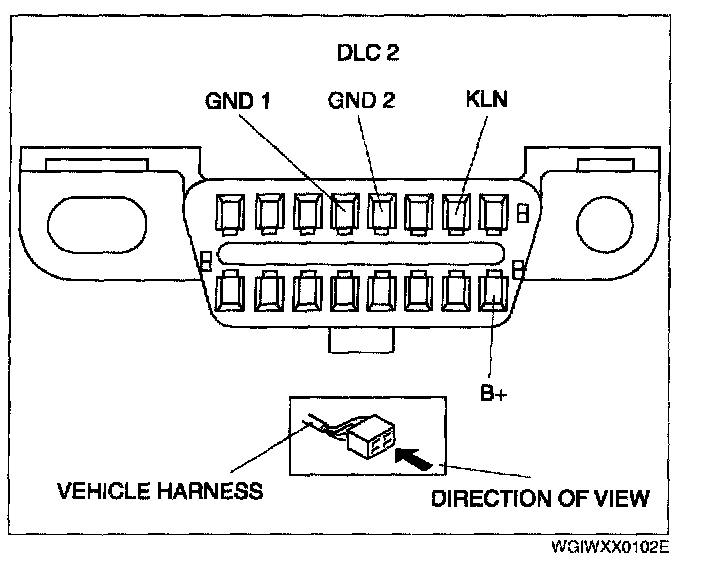

Because vehicle-harness-side connectors, such as the DLC 2, have to be viewed from the terminal side, the direction of view is from the terminal side.
