Climate Control Assembly

Removal and Installation

1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT CLUSTER FINISH PANEL.

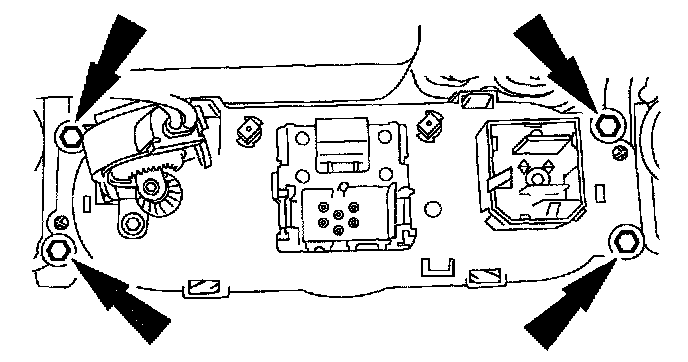

2. Remove the four screws and the climate control assembly.
3. To install, reverse the removal procedure.
