Climate Control Assembly Illumination Bulbs

Removal and Installation

1. Remove the instrument panel center finish panel. For additional information refer to INSTRUMENT CLUSTER FINISH PANEL.

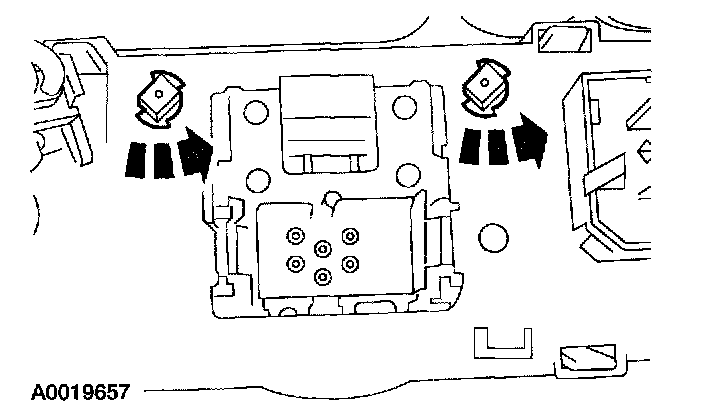

2. Remove the illumination bulb(s) by turning a quarter turn counterclockwise and lifting straight up.
3. To install, reverse the removal procedure.
