Rear Wheel Alignment

REAR TOE ADJUSTMENT

Note:
^ Jounce the vehicle to make sure that the suspension is in its normal resting position.

1. Check the toe setting using suitable wheel alignment equipment.

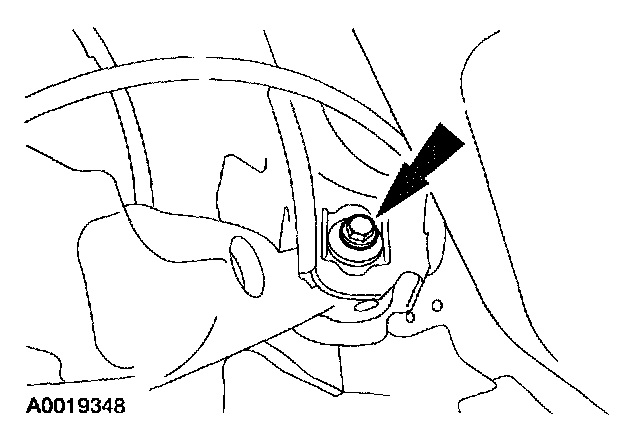

2. Loosen the LH and RH rear suspension trailing arm and bushing bolt.

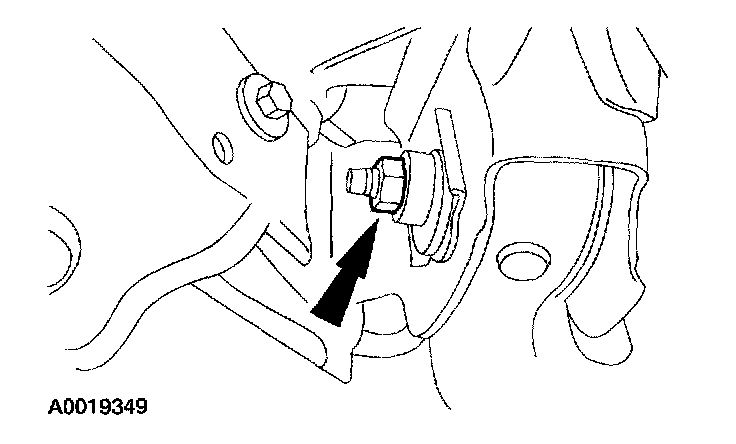

3. Turn the LH and RH adjusting cams simultaneously until the toe is within specification.

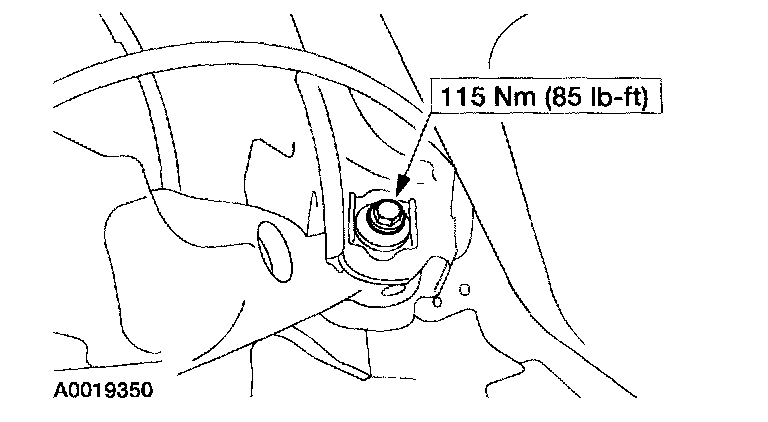

4. Tighten the LH and RH rear suspension trailing arm and bushing bolts.
