Knock Sensor: Service and Repair

KNOCK SENSOR (KS)

Removal and Installation

1. Raise and support the vehicle. Refer to LIFTING.

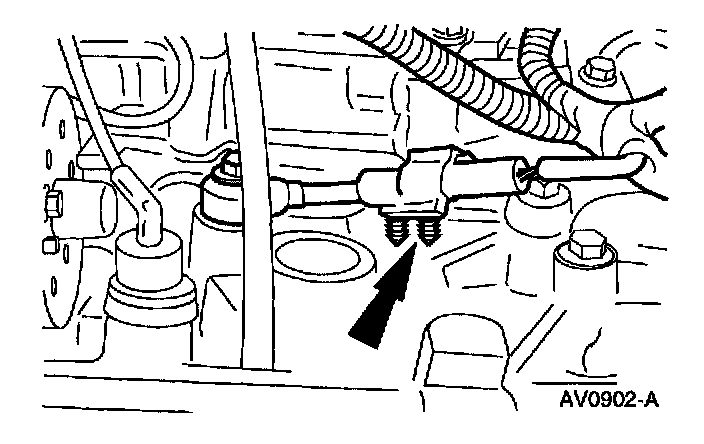

2. Disconnect the KS electrical connector and remove the connector from the mounting bracket.

NOTE: The knock sensor (KS) is located on the RH side of the cylinder block.

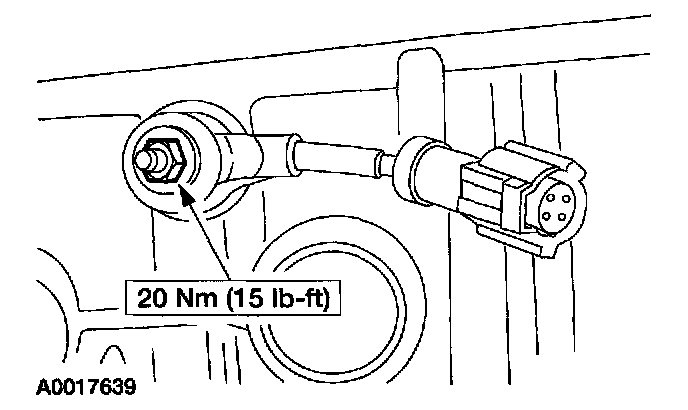

3. Remove the nut and the KS.
4. To install, reverse the removal procedure.
