Freeze Frame PID Data Access Procedure

Freeze Frame PID Data Access Procedure
1. Perform the necessary vehicle preparation and visual inspection. Hook-up the WDS or equivalent Tester to the vehicle.

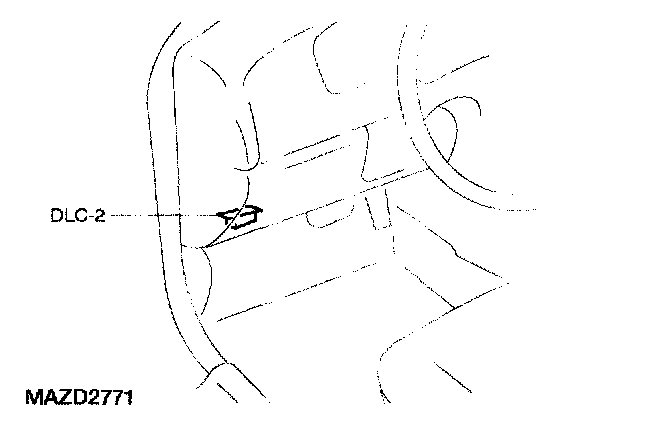

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Record the FREEZE FRAME PID DATA by WDS or equivalent.
