WDS

PID/DATA Monitor and Record Procedure
1. Perform the necessary vehicle preparation and visual inspection. Hook-up the WDS or equivalent Tester to the vehicle.

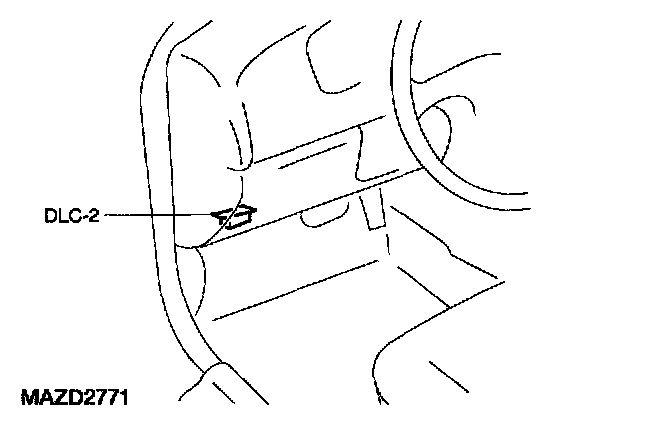

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Access and monitor PIDs by WDS or equivalent.
