Test 15: Ignition Scope Test

CAUTION: Fouled plugs or a damaged ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage.

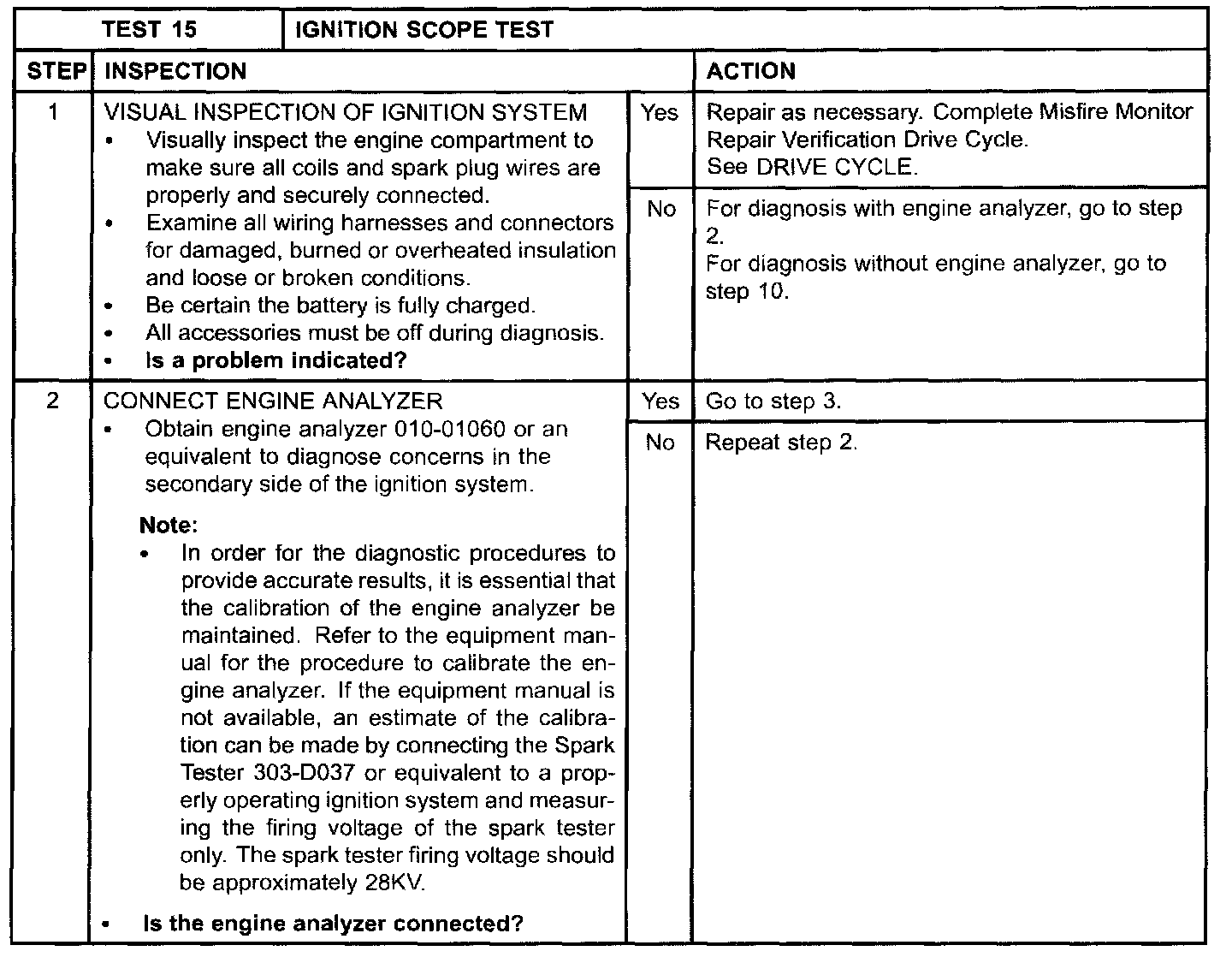

Step 1 - 2:

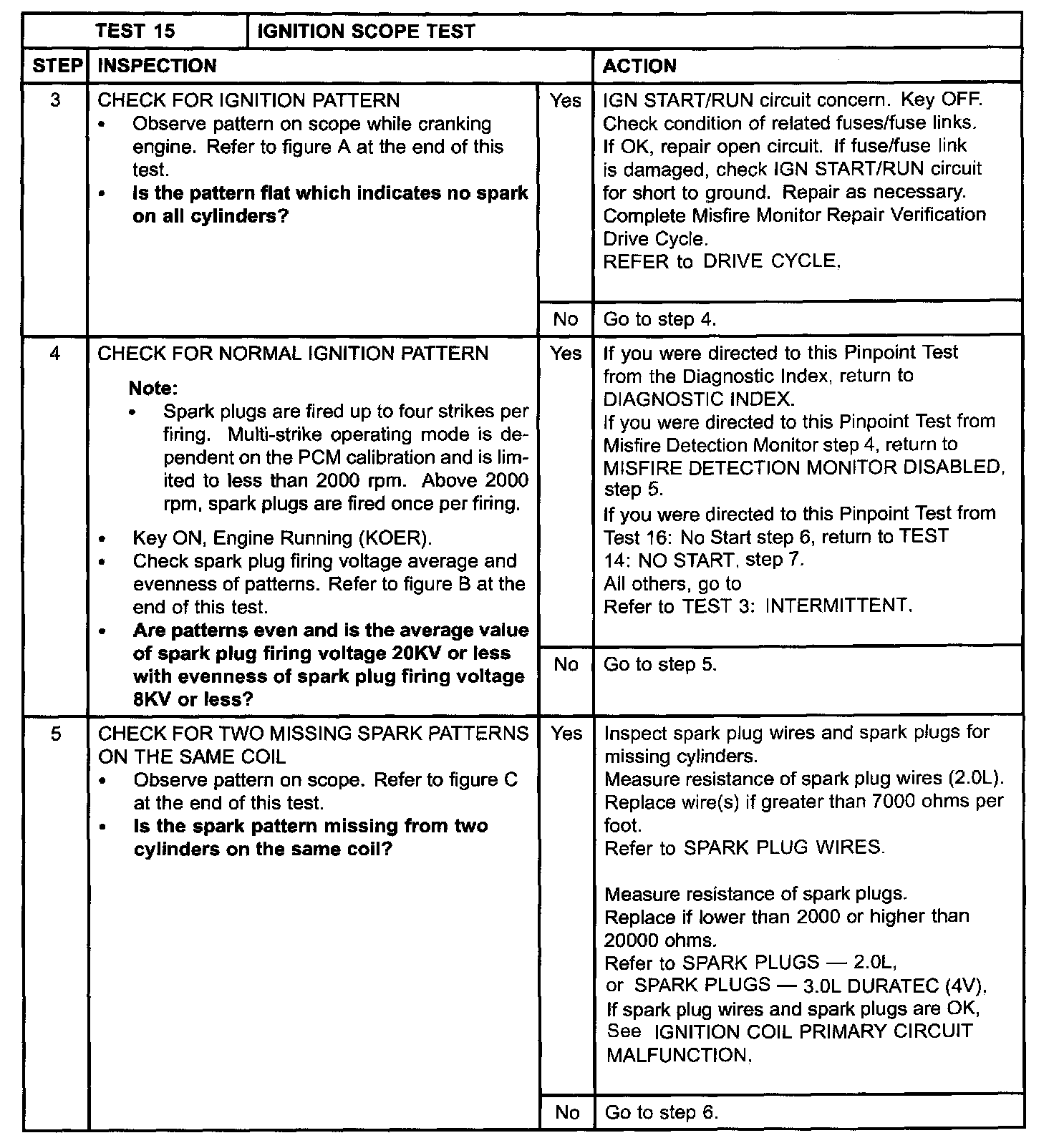

Step 3 - 5:

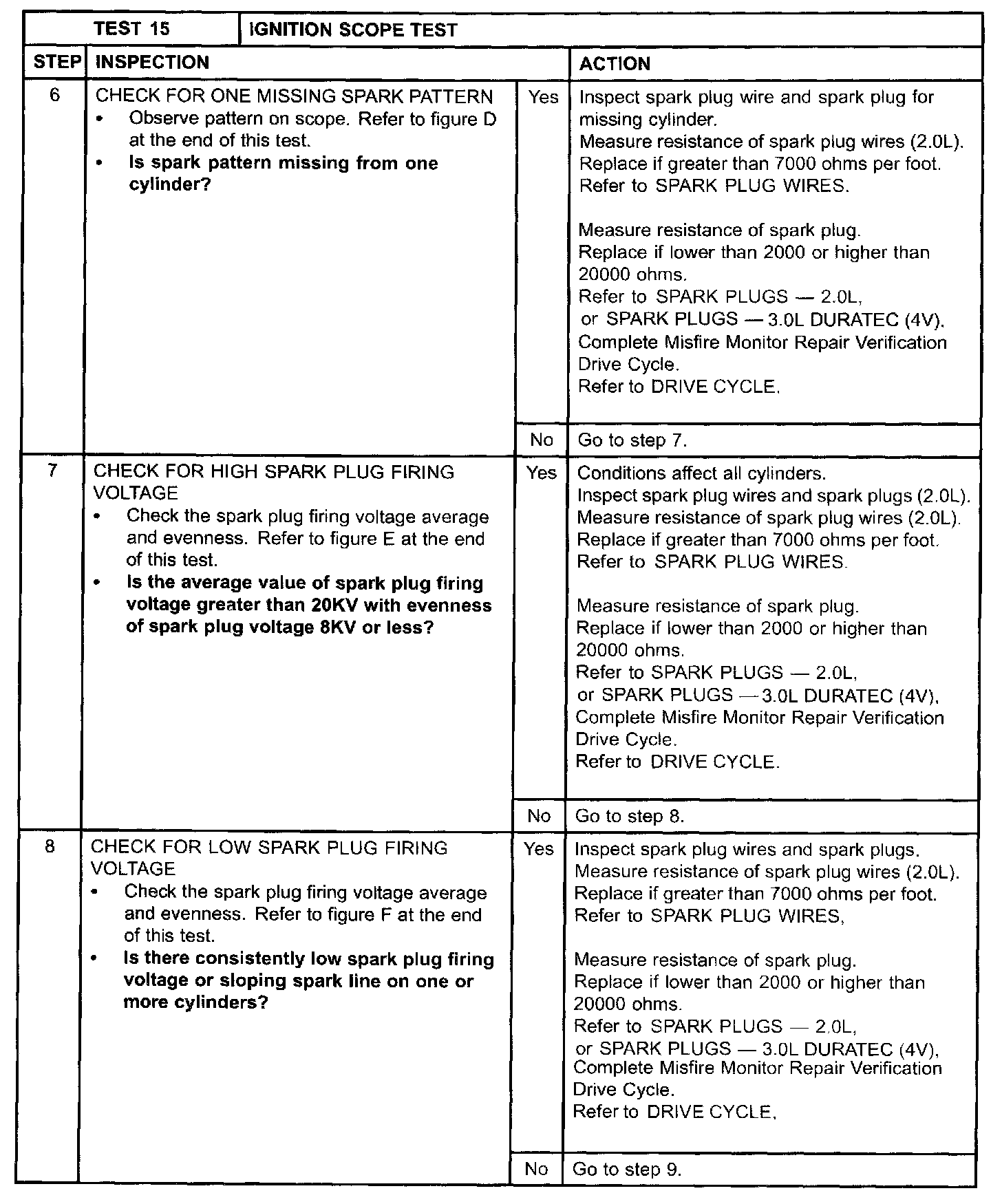

Step 6 - 8:

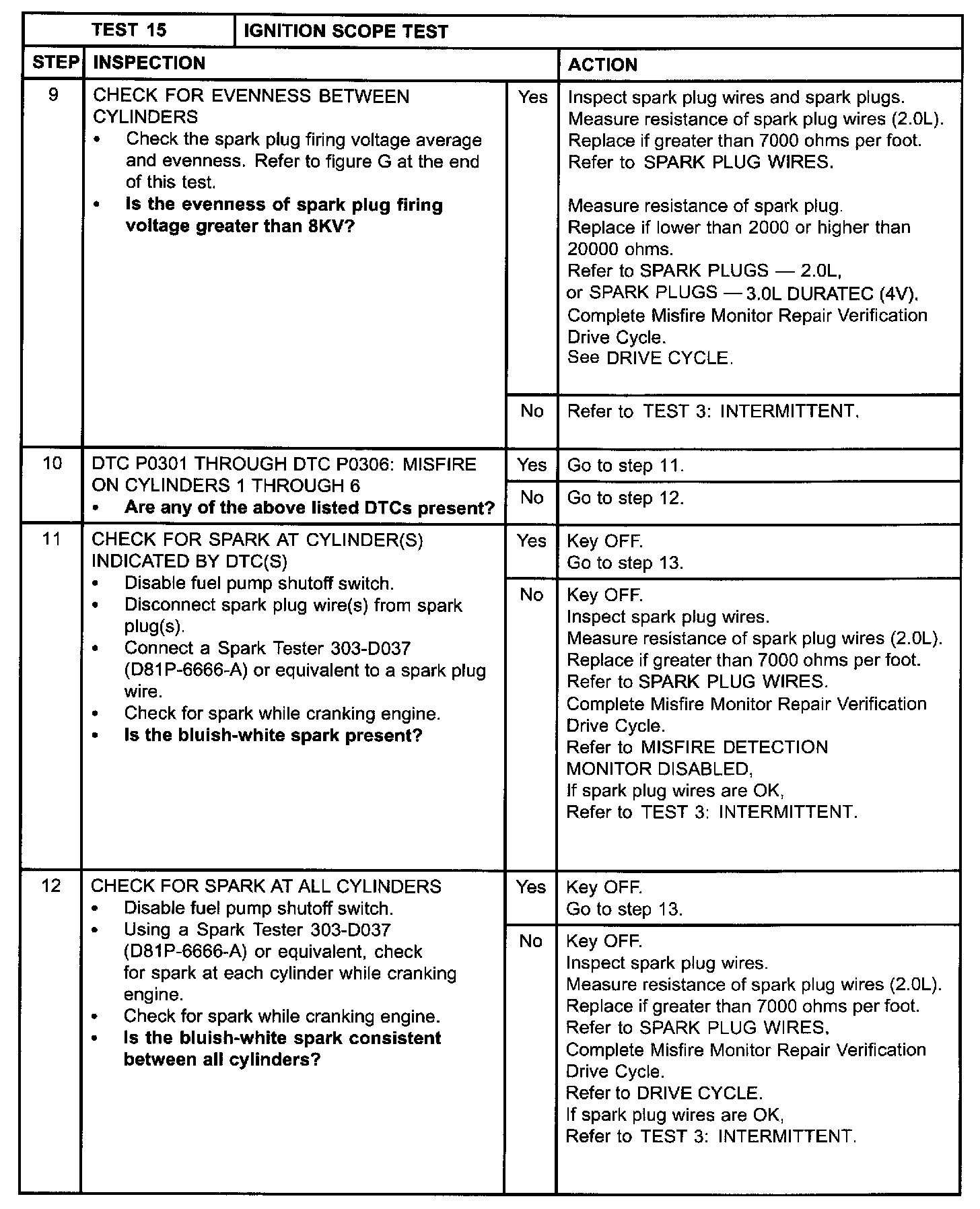

Step 9 - 12:

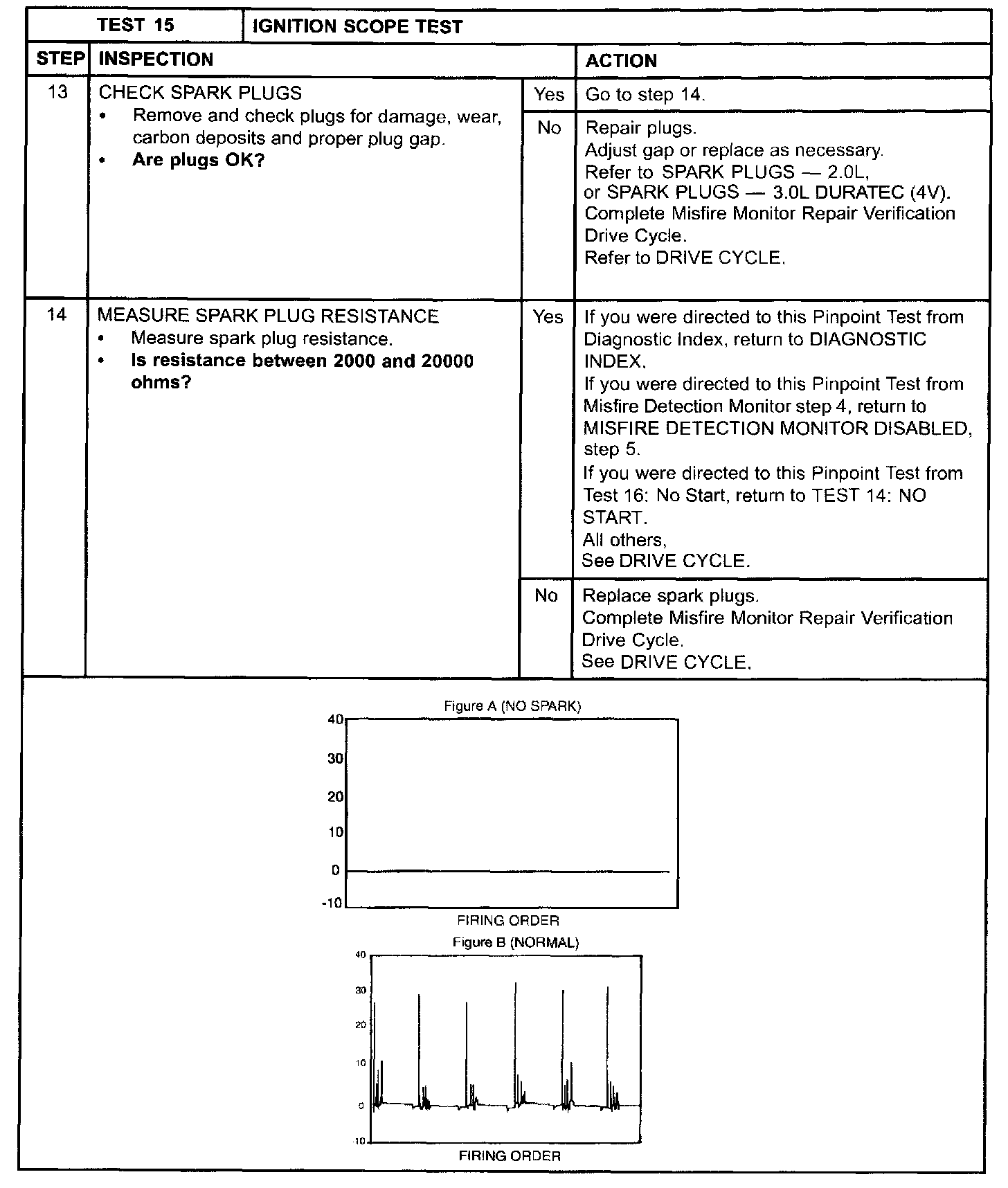

Step 13 - 14:
