Test 3: Intermittent

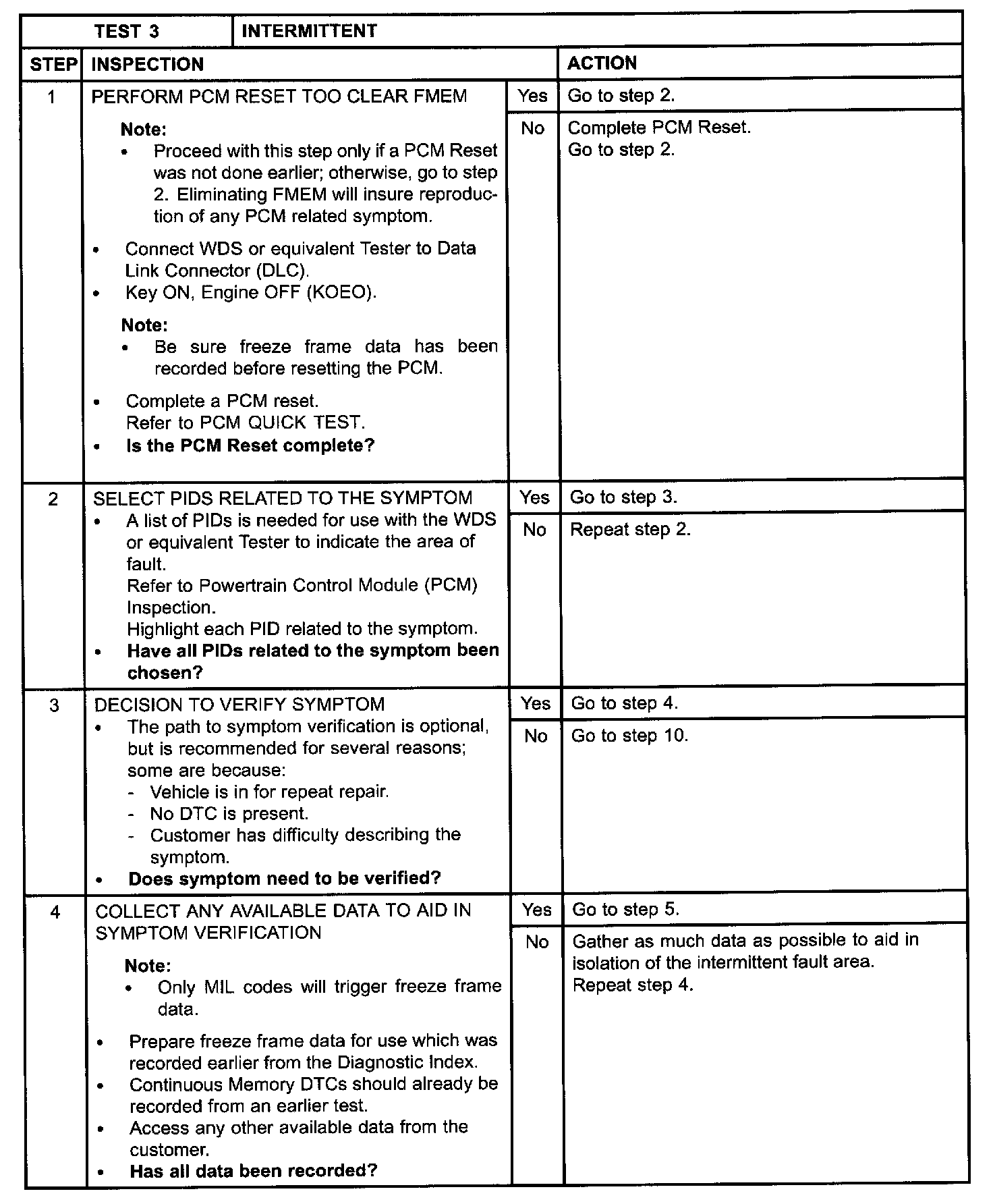

Step 1 - 4:

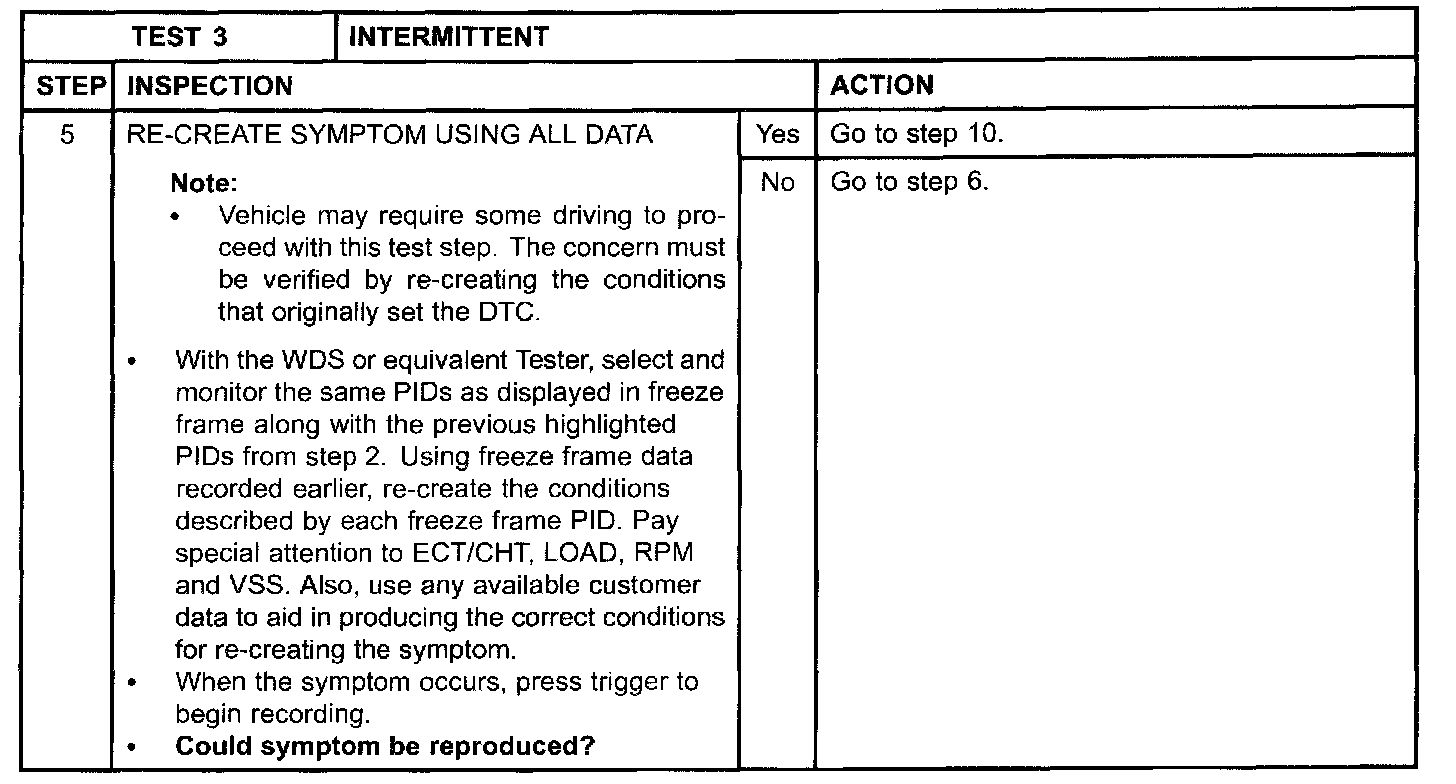

Step 5:

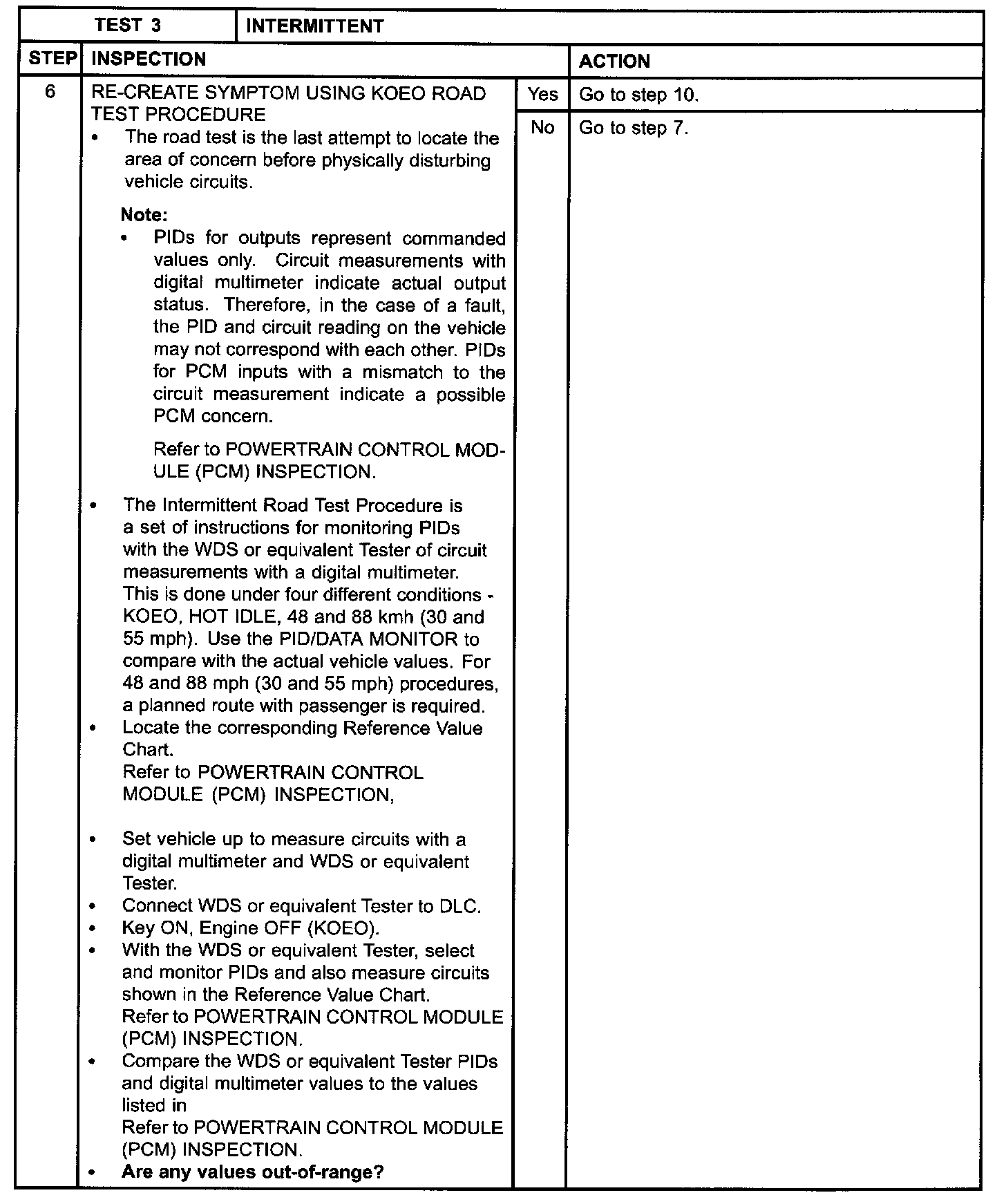

Step 6:

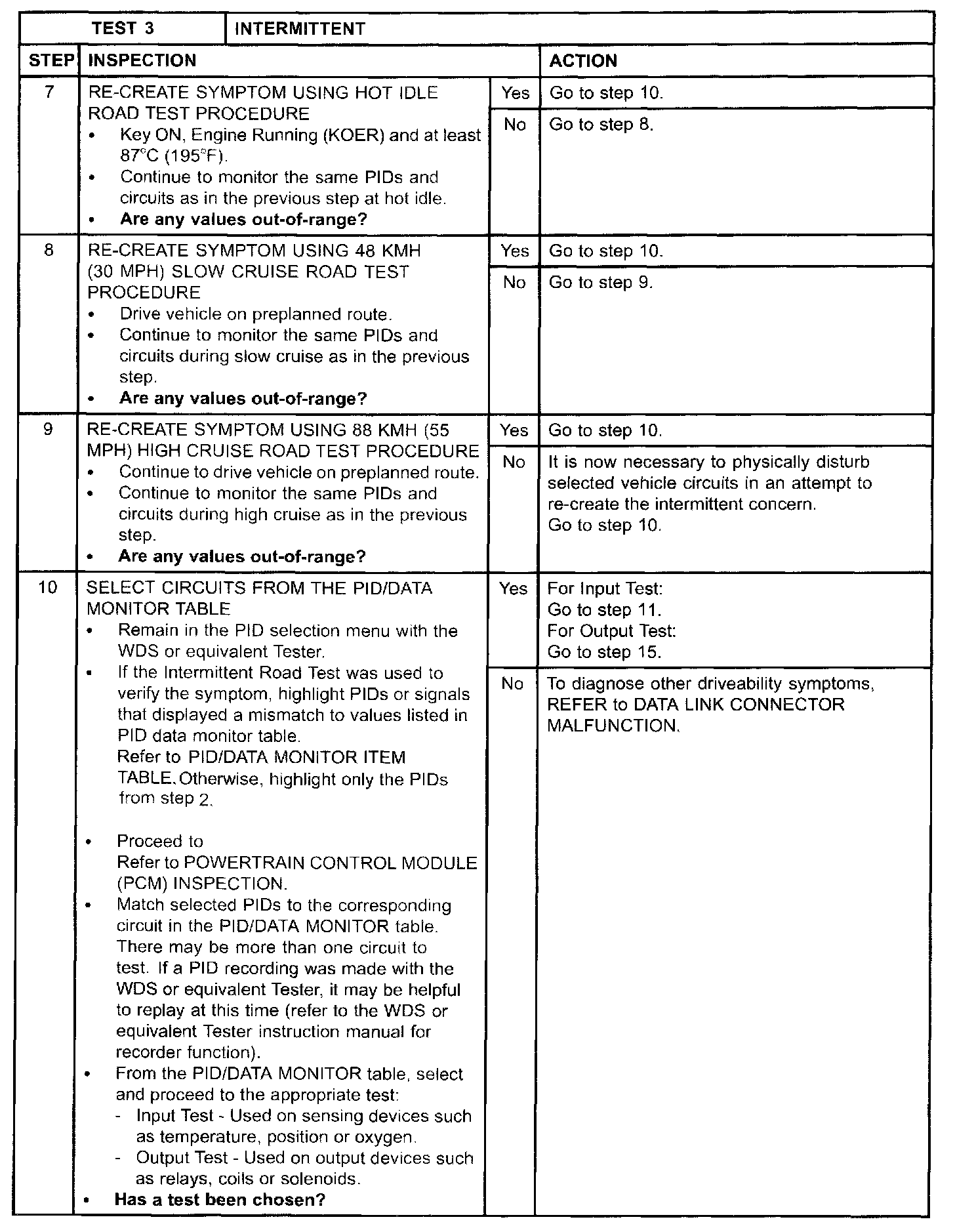

Step 7 - 10:

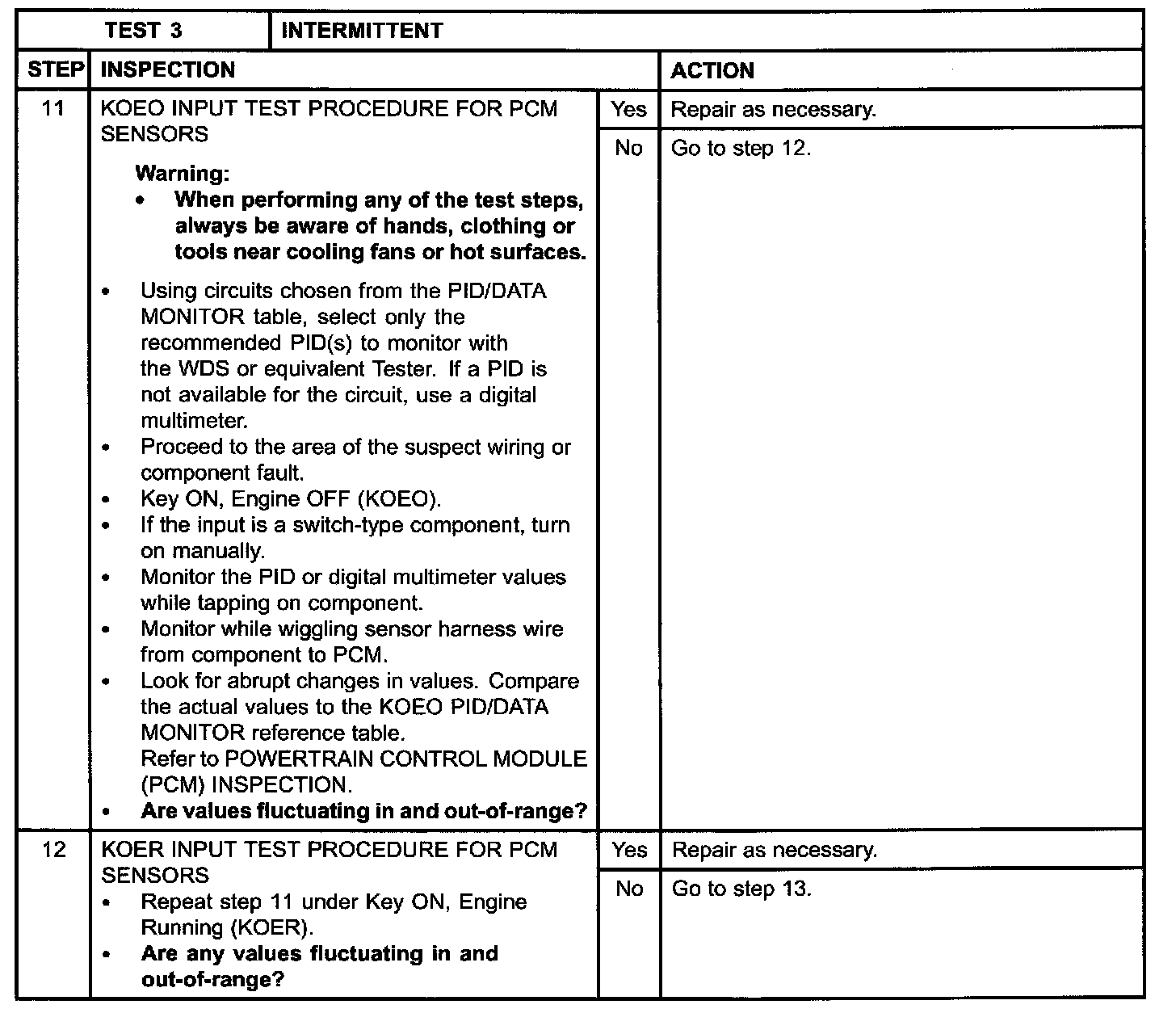

Step 11 - 12:

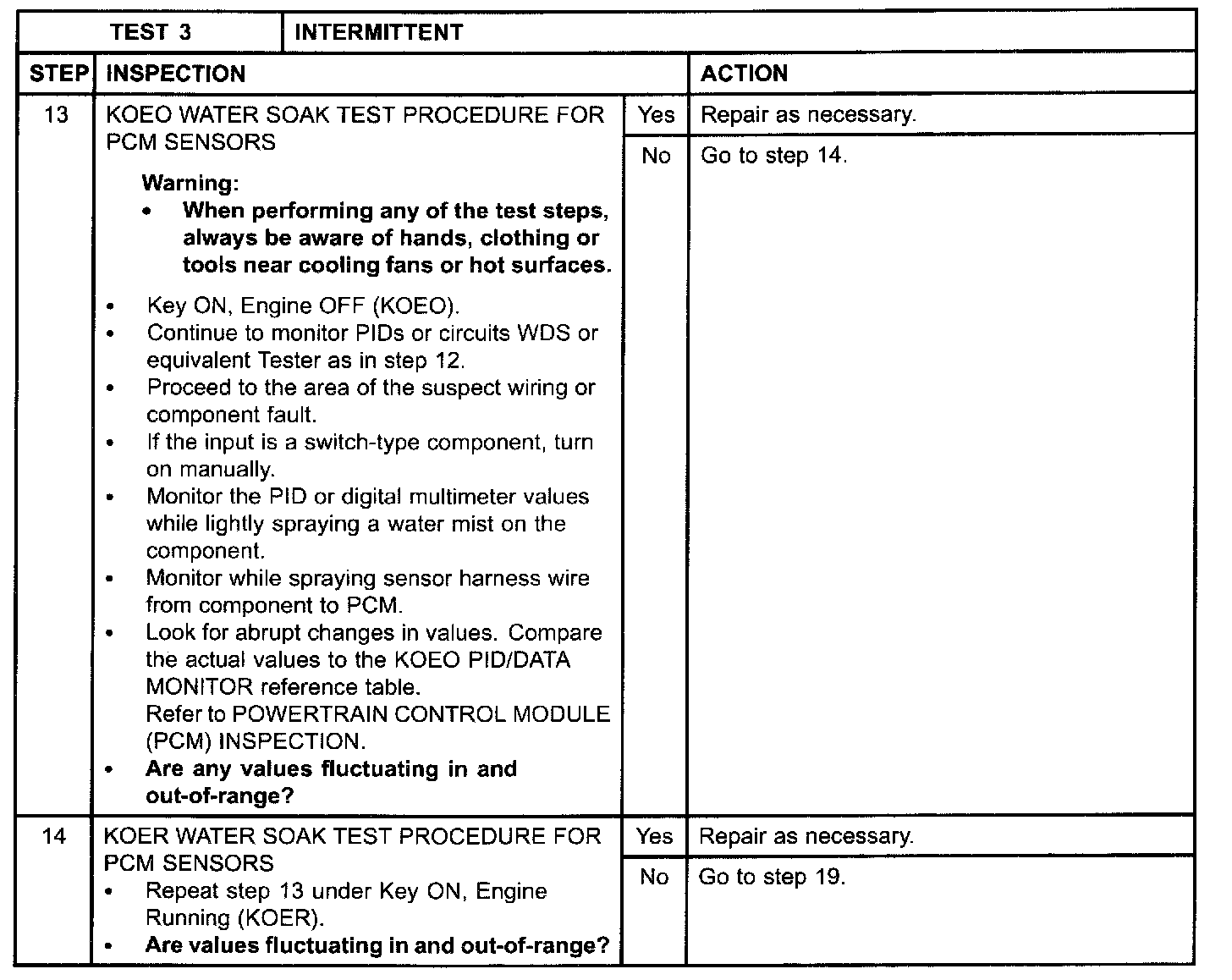

Step 13 - 14:

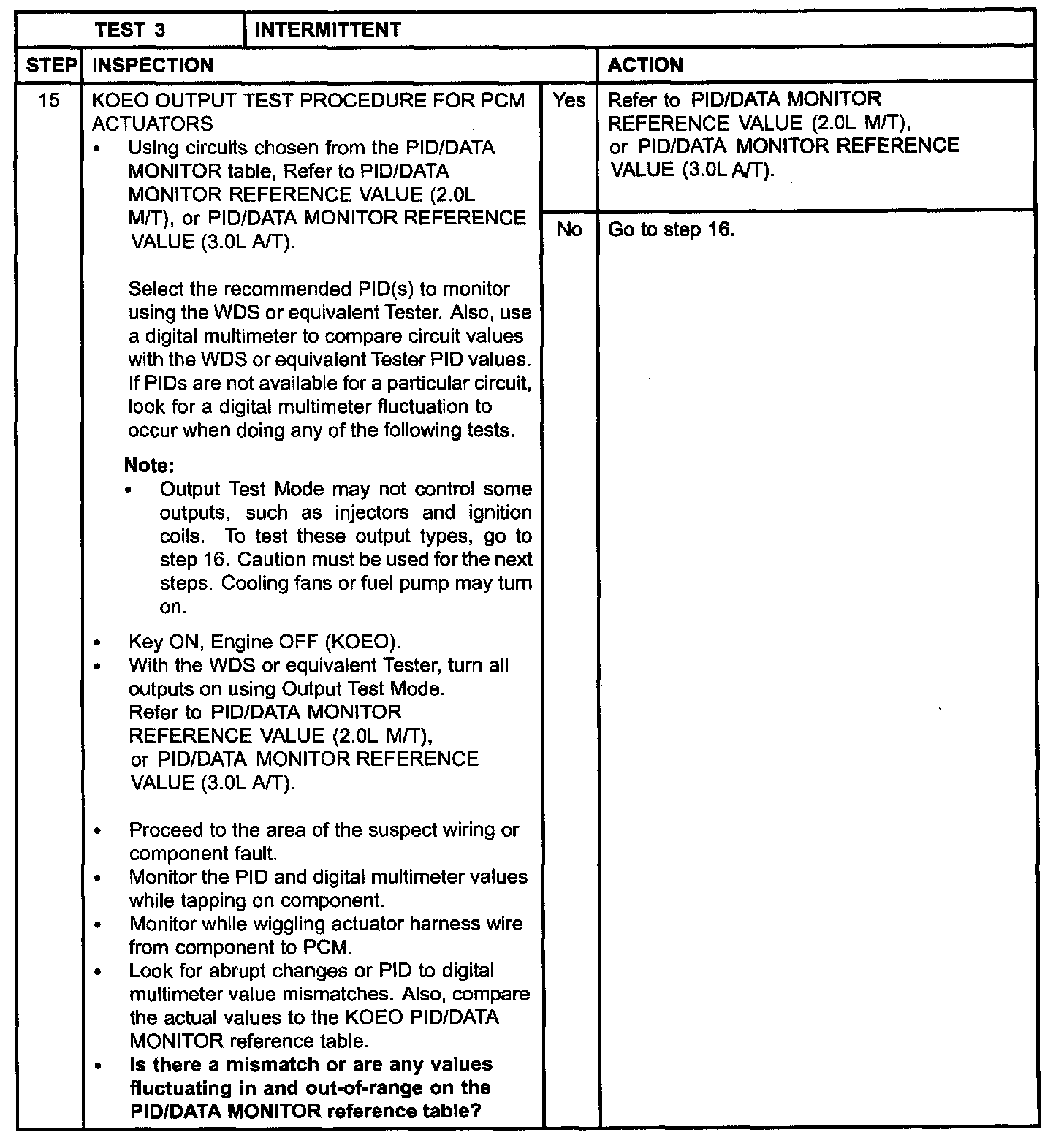

Step 15:

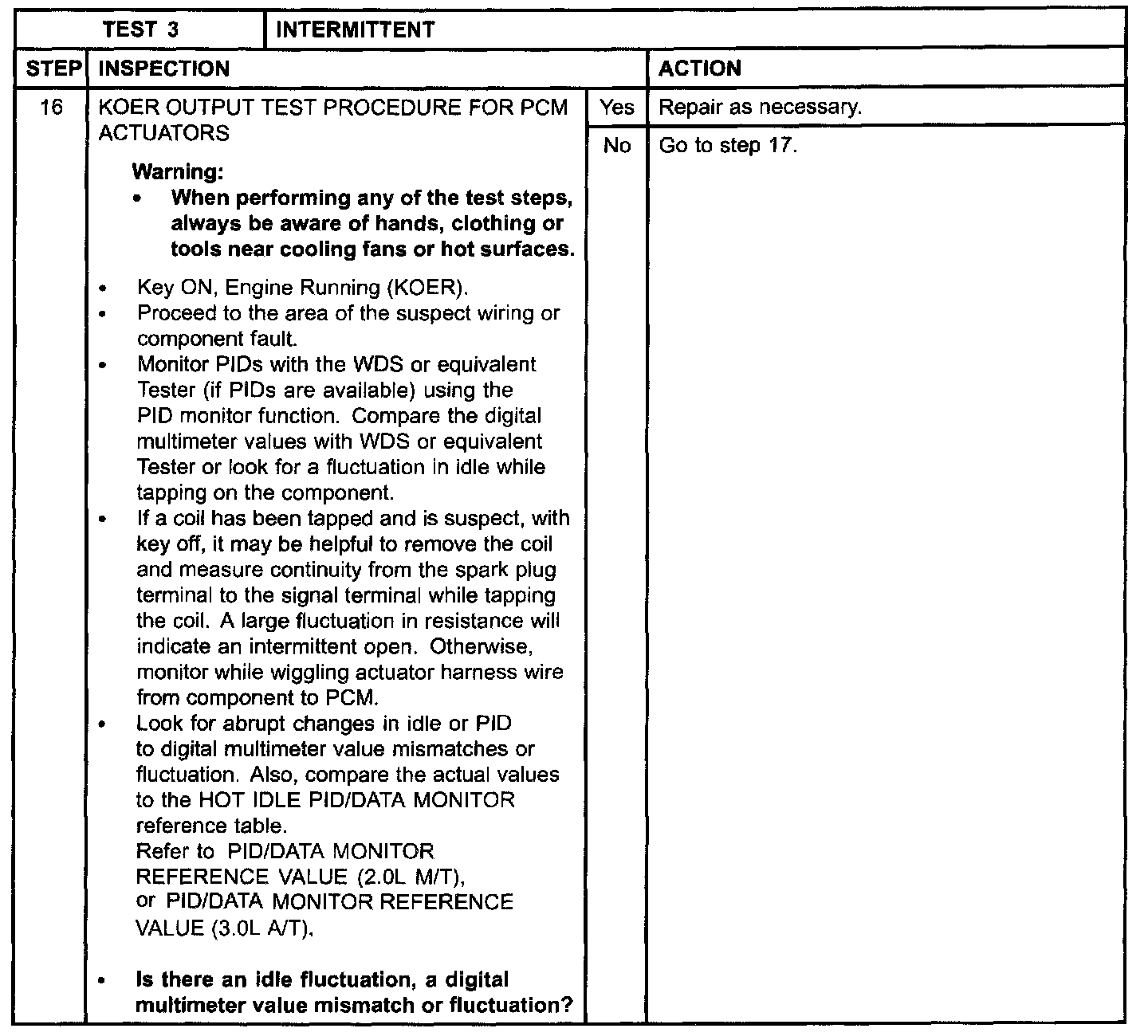

Step 16:

Step 17 - 18:

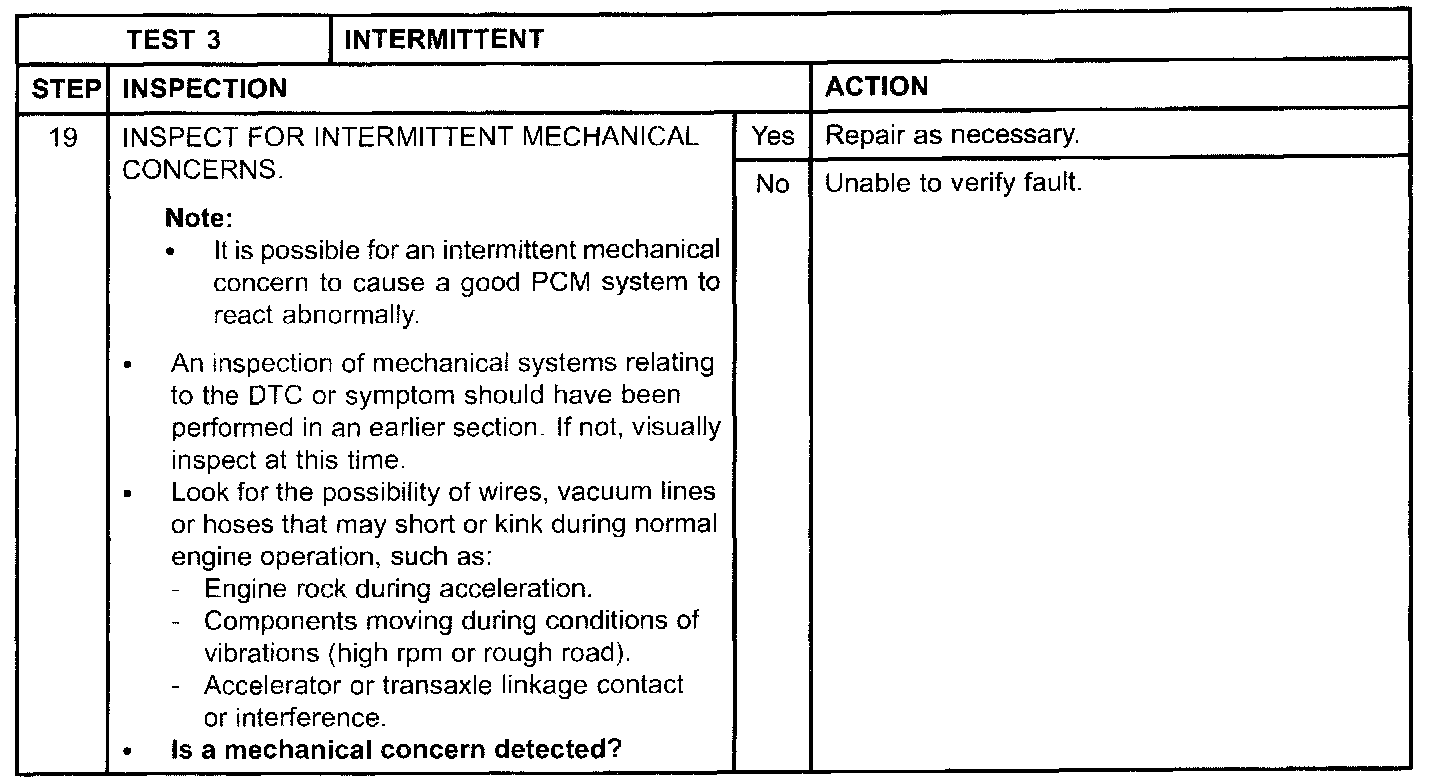

Step 19:

WARNING: When performing any of the test steps, always be aware of hands, clothing or tools near cooling fans or hot surfaces.


NOTE: PIDs selected from the PID/DATA MONITOR table will display commanded values only. Digital multimeter measurements will display actual values.
