Removal and Installation

NOTE:

The removal and installation procedures for all window control switches are similar.

Remove the front door trim panel or the rear door trim panel. Refer to FRONT DOOR TRIM PANEL or REAR DOOR TRIM PANEL .

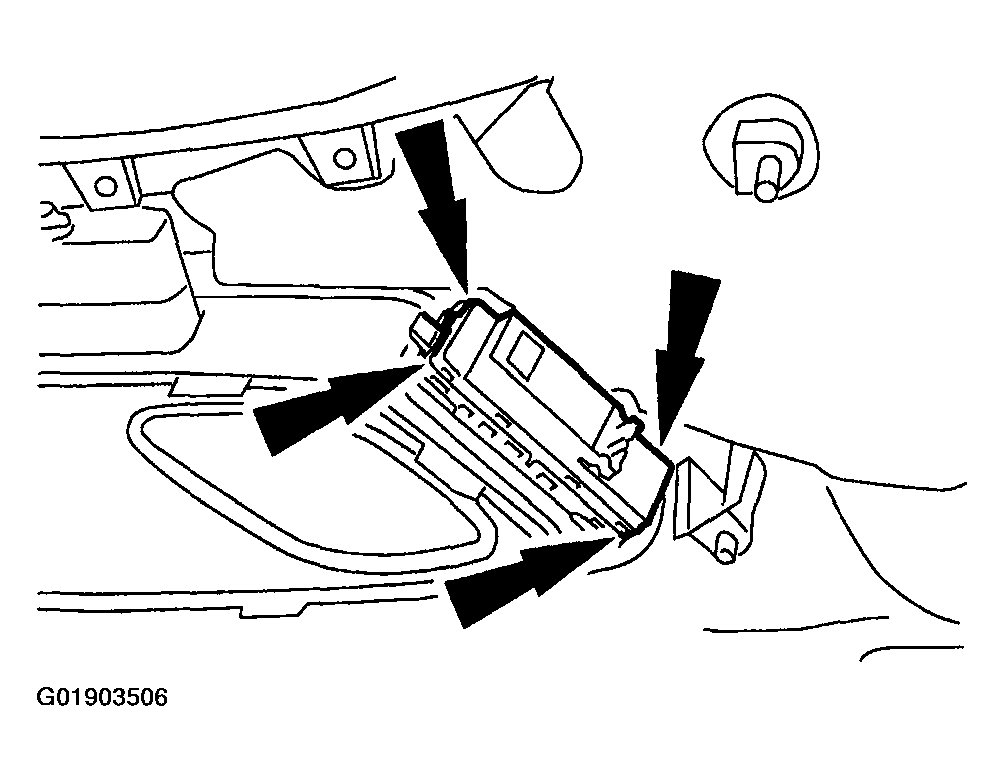

Fig 1: Releasing Locking Clips And Removing Window Control Switch
Courtesy of MAZDA MOTORS CORP.
Release the locking clips and remove the window control switch.
To install, reverse the removal procedure.
