Special Tools

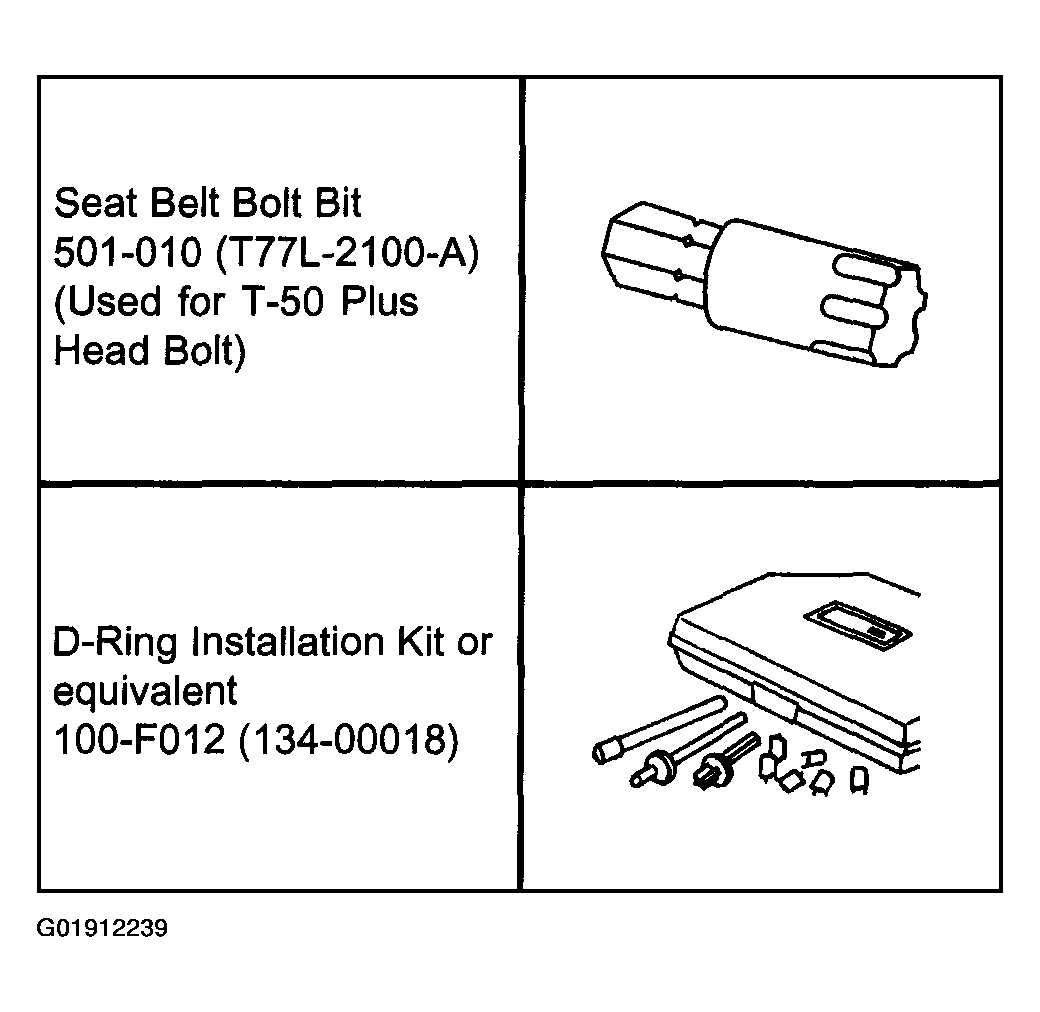

Fig 1: Identifying Special Service Tools (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

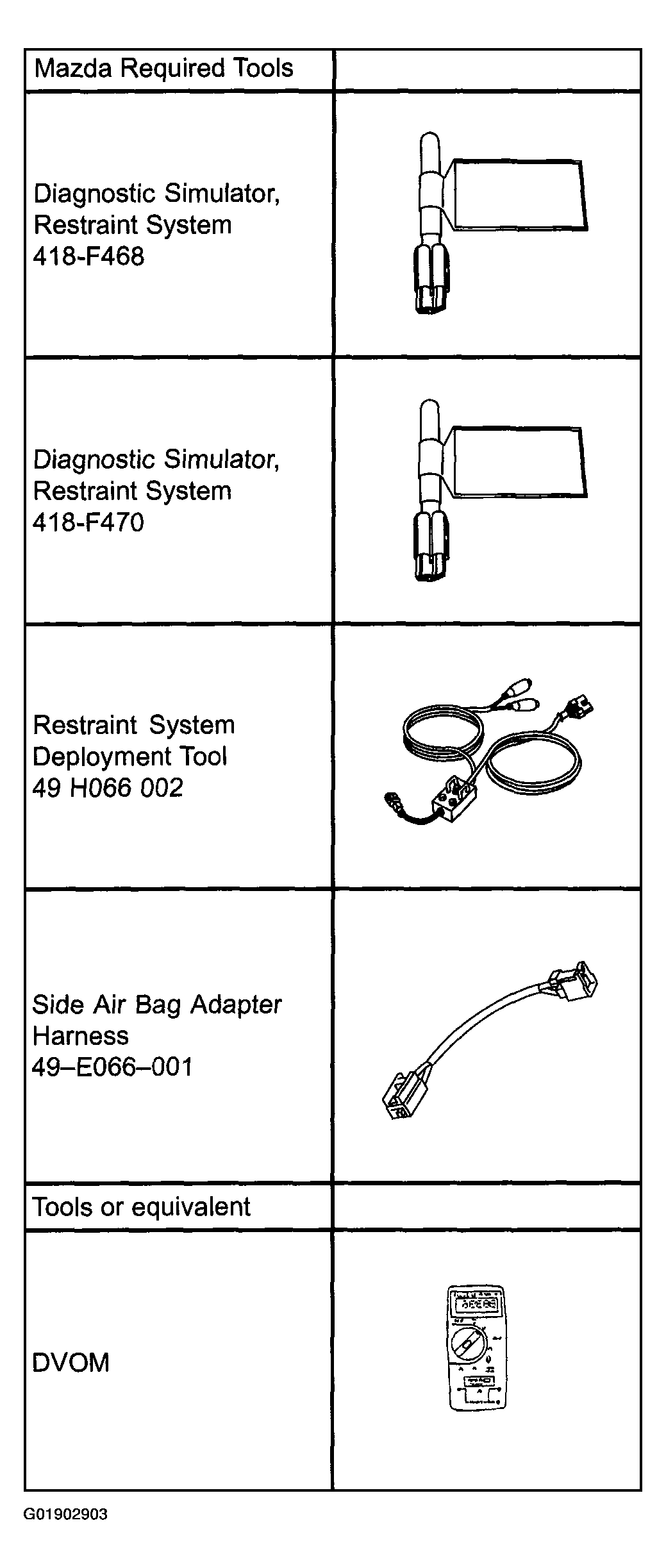

Fig 2: Identifying Special Service Tools (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
