Mirrors: Testing and Inspection

POWER OUTER MIRROR INSPECTION

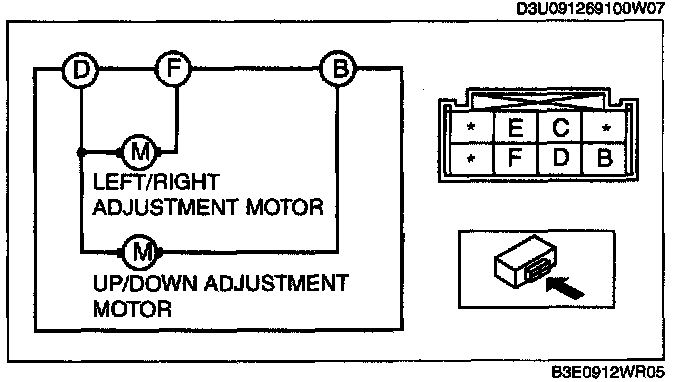

1. Apply battery positive voltage to the power outer mirror terminals and inspect the operation of the power outer mirror.
- If not as specified, replace the power outer mirror.

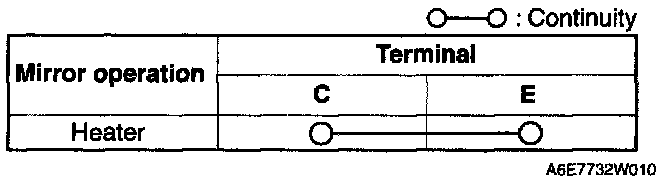

2. Inspect for continuity between the power outer mirror heater terminals.
- If not as specified, replace the power outer mirror.
