System Specifications

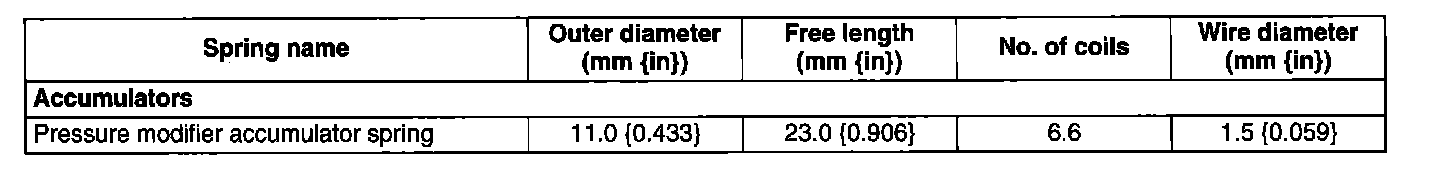

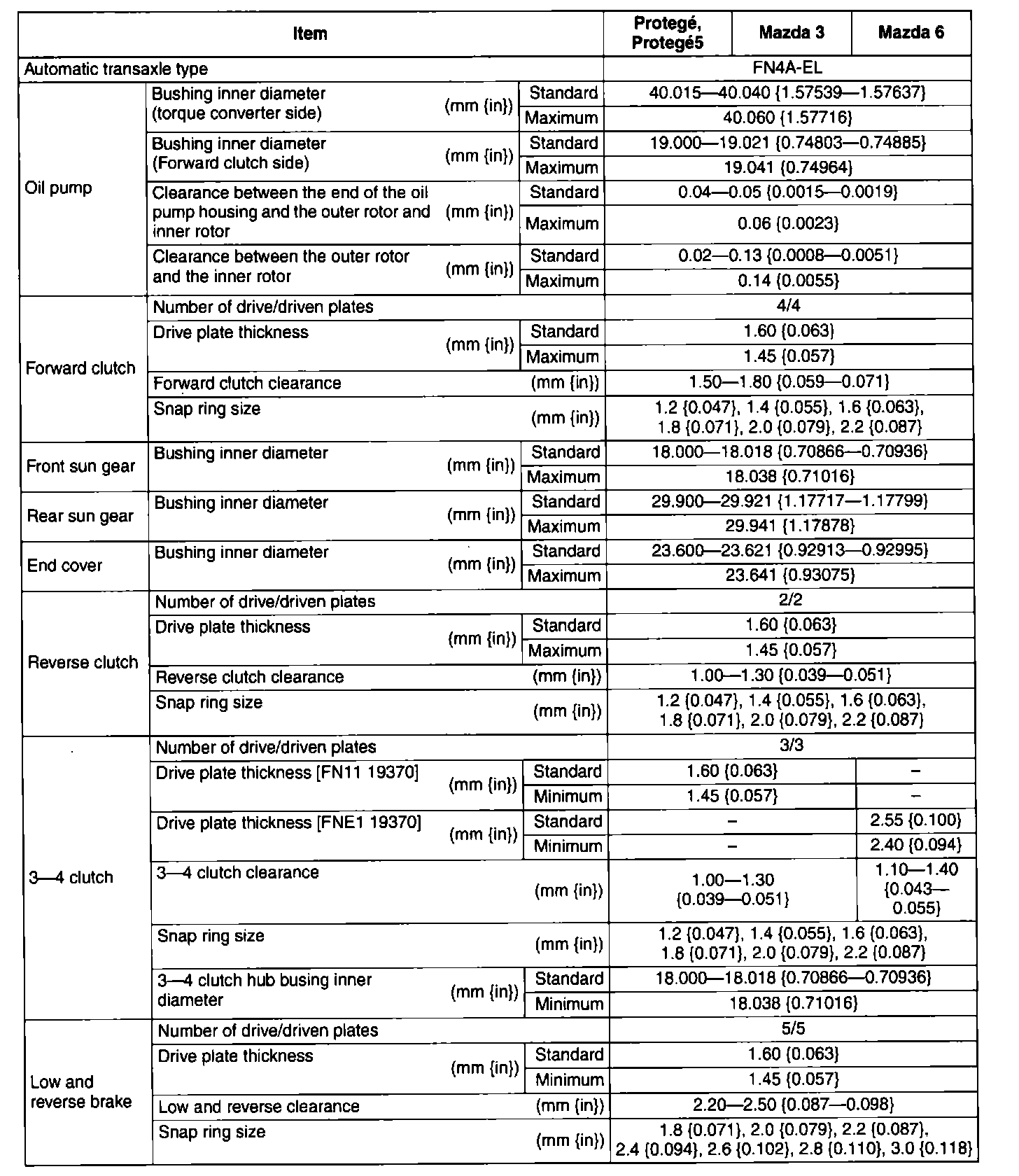

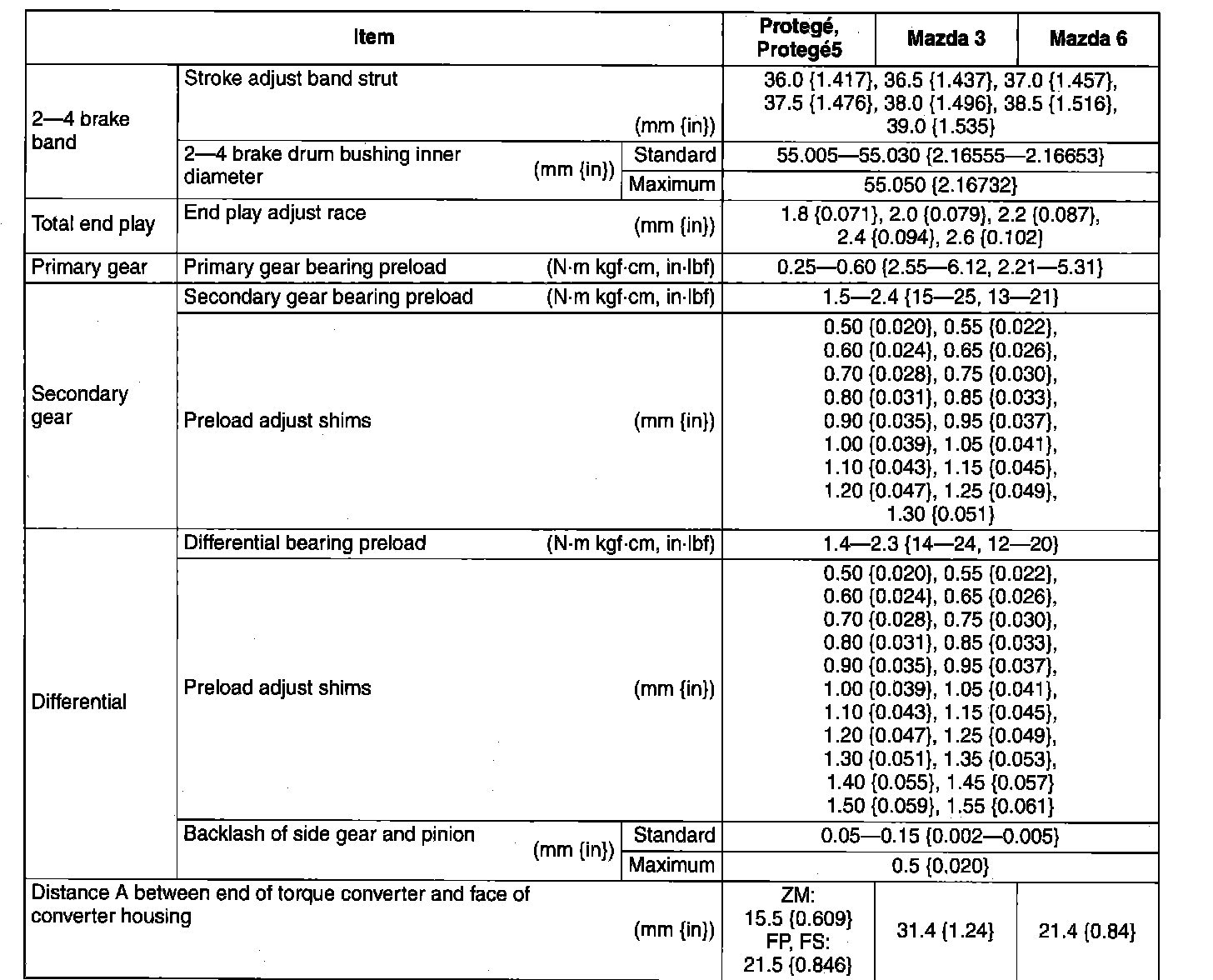

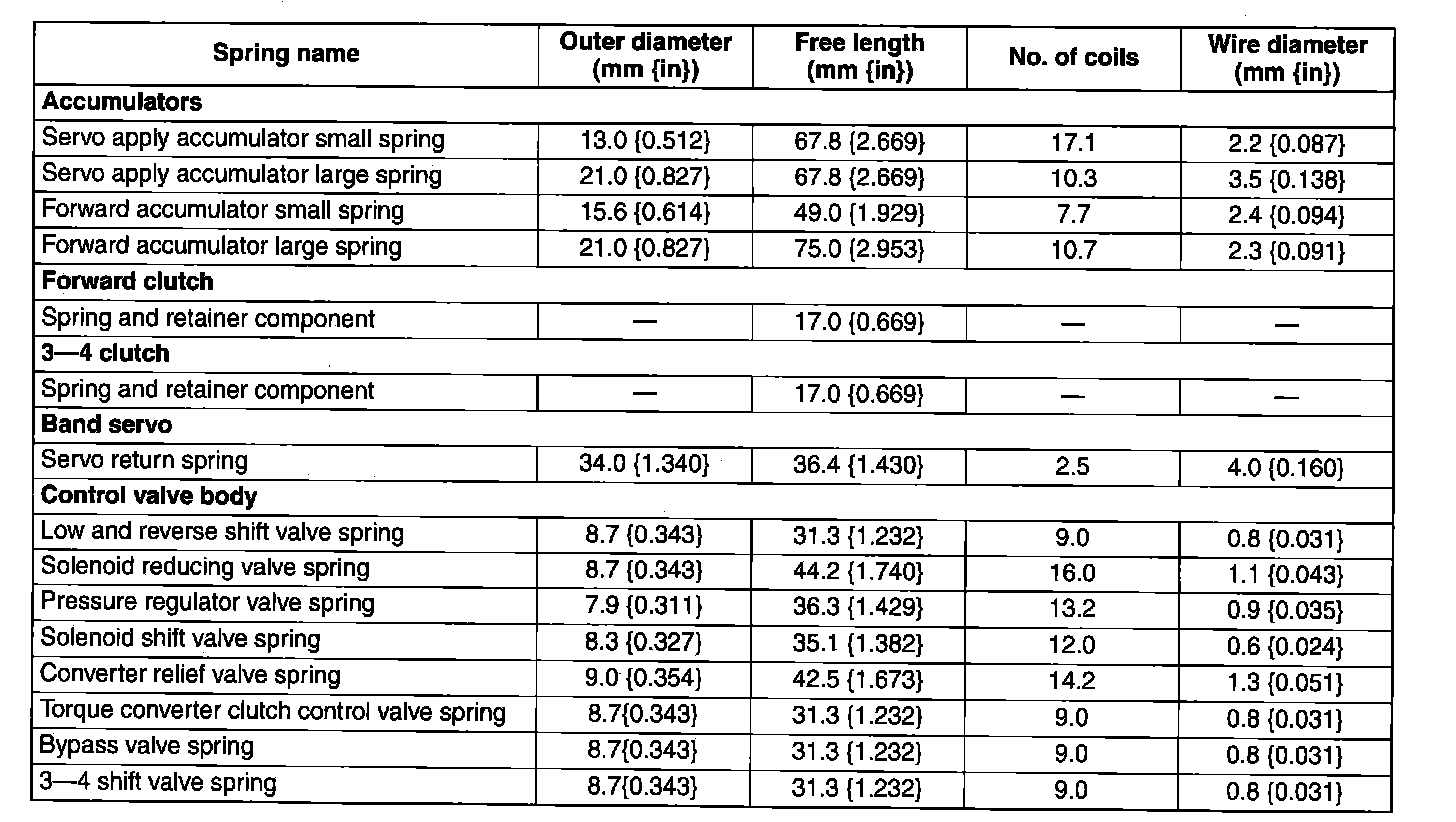

TRANSMISSION/TRANSAXLE TECHNICAL DATA


OIL PAN
Tightening torque 5.9 - 7.8 Nm (60 - 80 kgf-cm, 53 - 69 inch lbs.)
