Navigation Module: Service and Repair

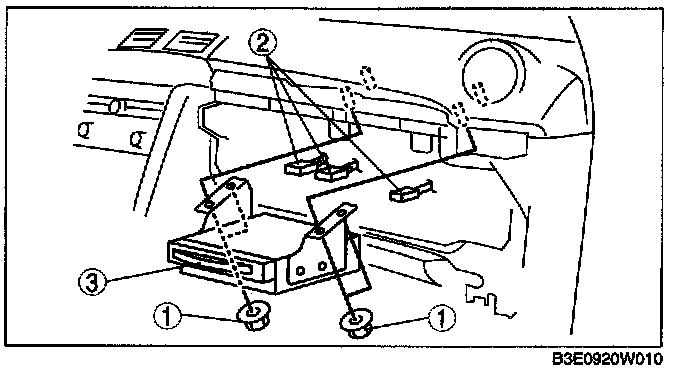

CAR-NAVIGATION UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Decoration panel
2. Front scuff plate
3. Front side trim
4. Glove compartment

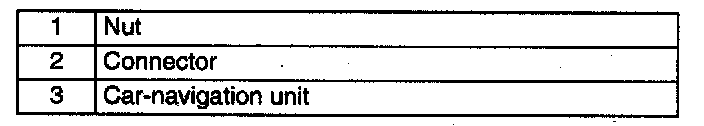

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
