Radiator Support: Service and Repair

SHROUD PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Front bumper
2. Front combination light
3. Front bumper reinforcement
4. Hood latch

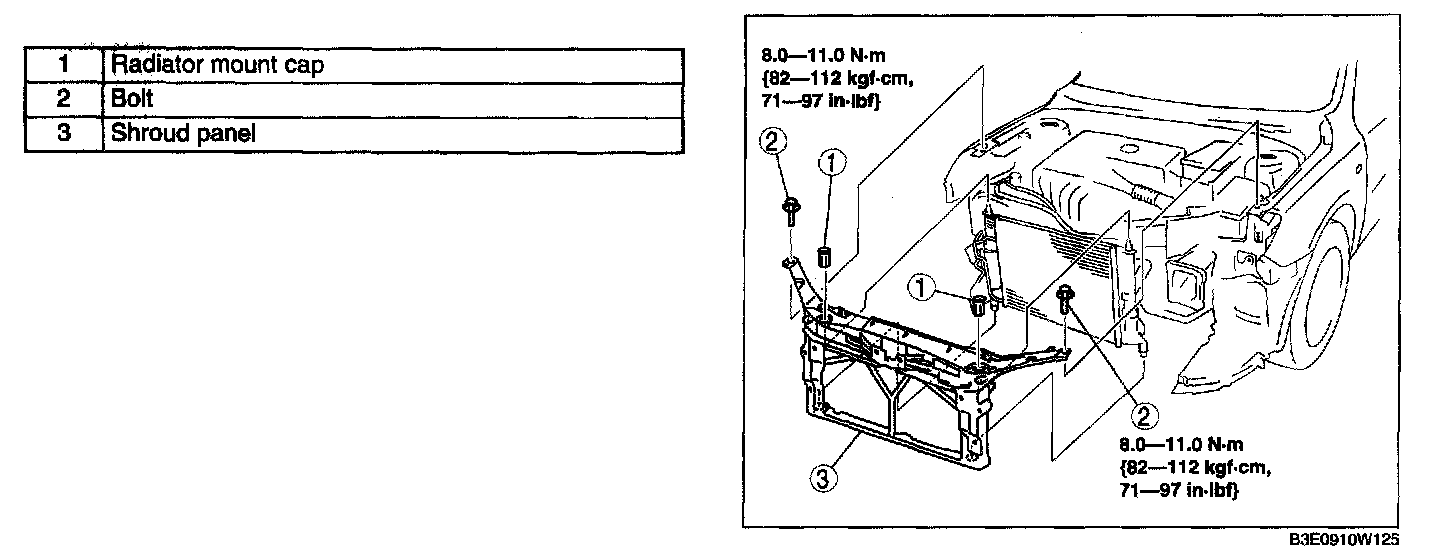

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
