Normal Scan Data Values

PID/Data Monitor and Record Procedure





1. Connect the WDS or equivalent to the vehicle DLC-2 connector.
2. Access and monitor PIDs using the WDS or equivalent.

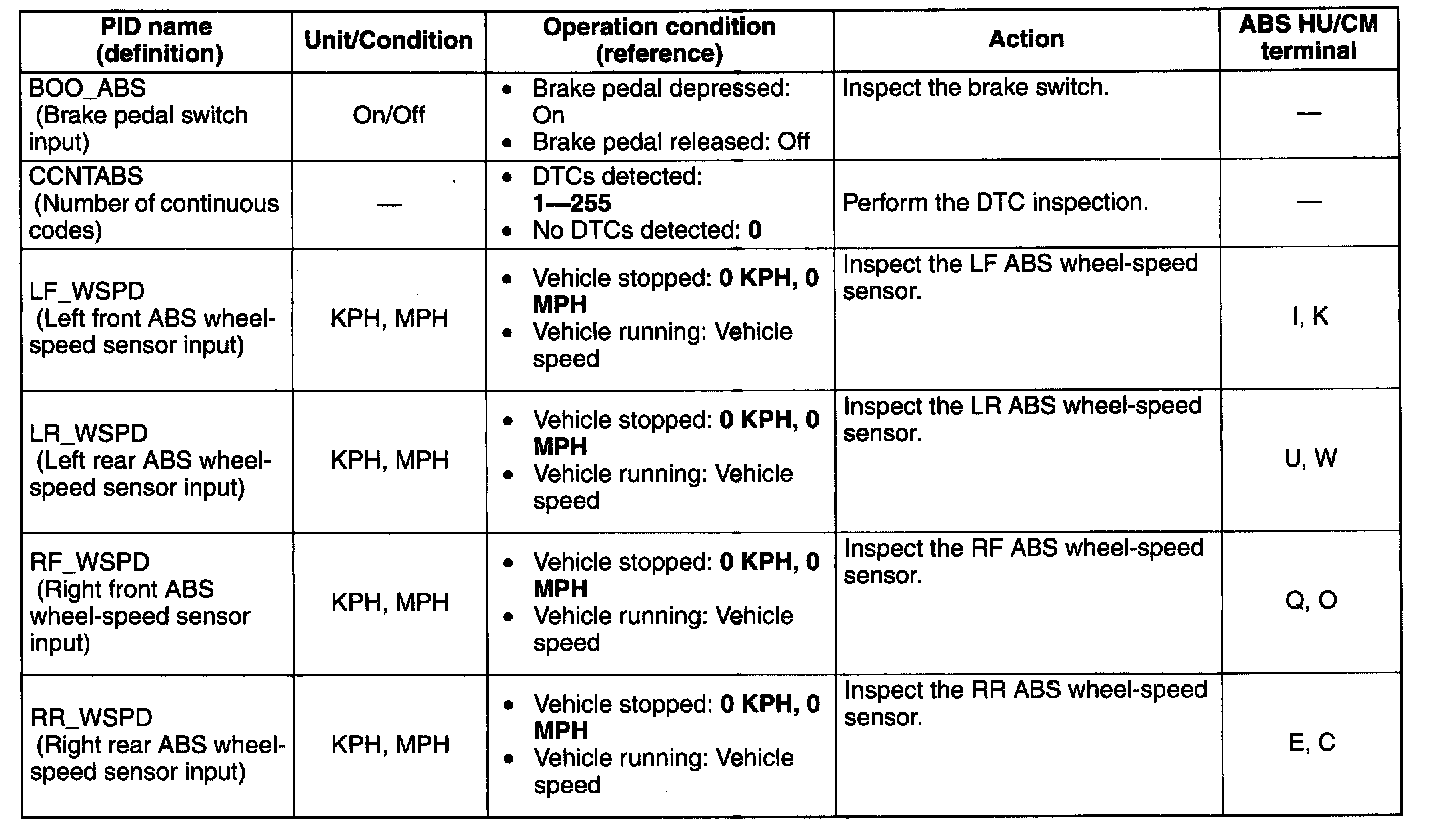

PID/DATA Monitor Table
