Discharge Headlight Control Module Removal/Installation

DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION

WARNING: Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings.

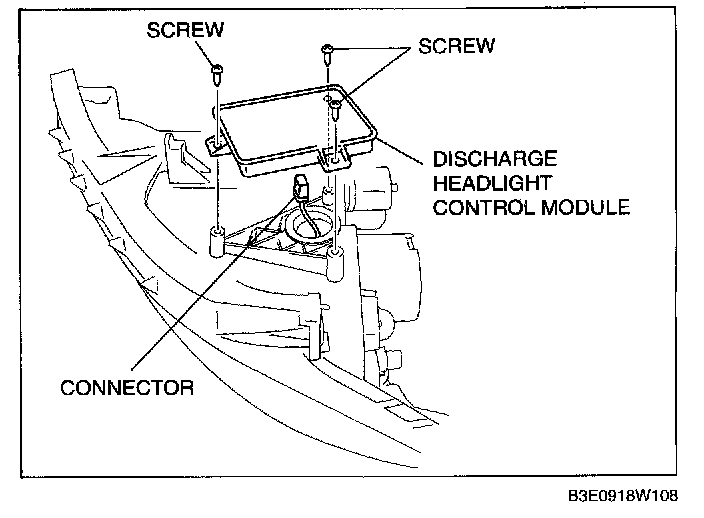

1. Disconnect the negative battery cable.
2. Remove the front bumper.
3. Remove the front combination light.




4. Remove screws.
5. Disconnect the connector.
6. Remove the discharge headlight control module.
7. Install in the reverse order of removal.
