Mini ISO Relay: Testing and Inspection

RELAY INSPECTION

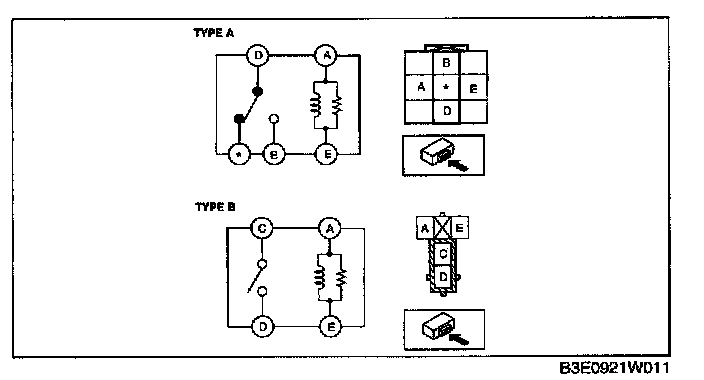

Relay Type:

Relay type

Type A

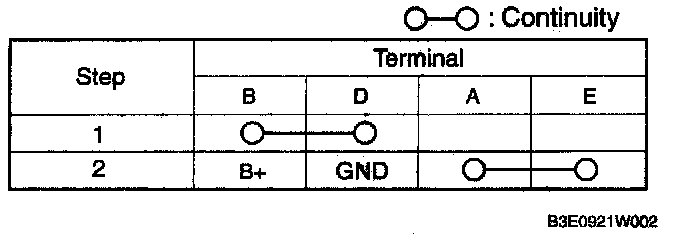

1. Verify the continuity between the relay terminals.
- If not as indicated in the table, replace the relay.

Type B

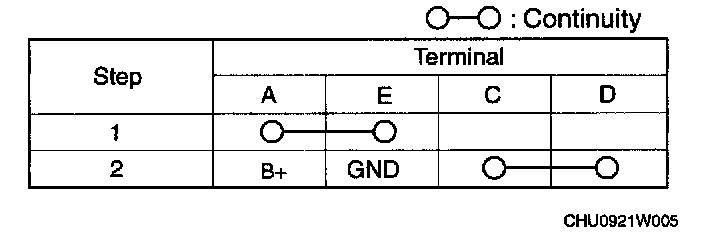

1. Verify the continuity between the relay terminals.
- If not as indicated in the table, replace the relay.
