Monitoring System and Control System Device Relationship Chart

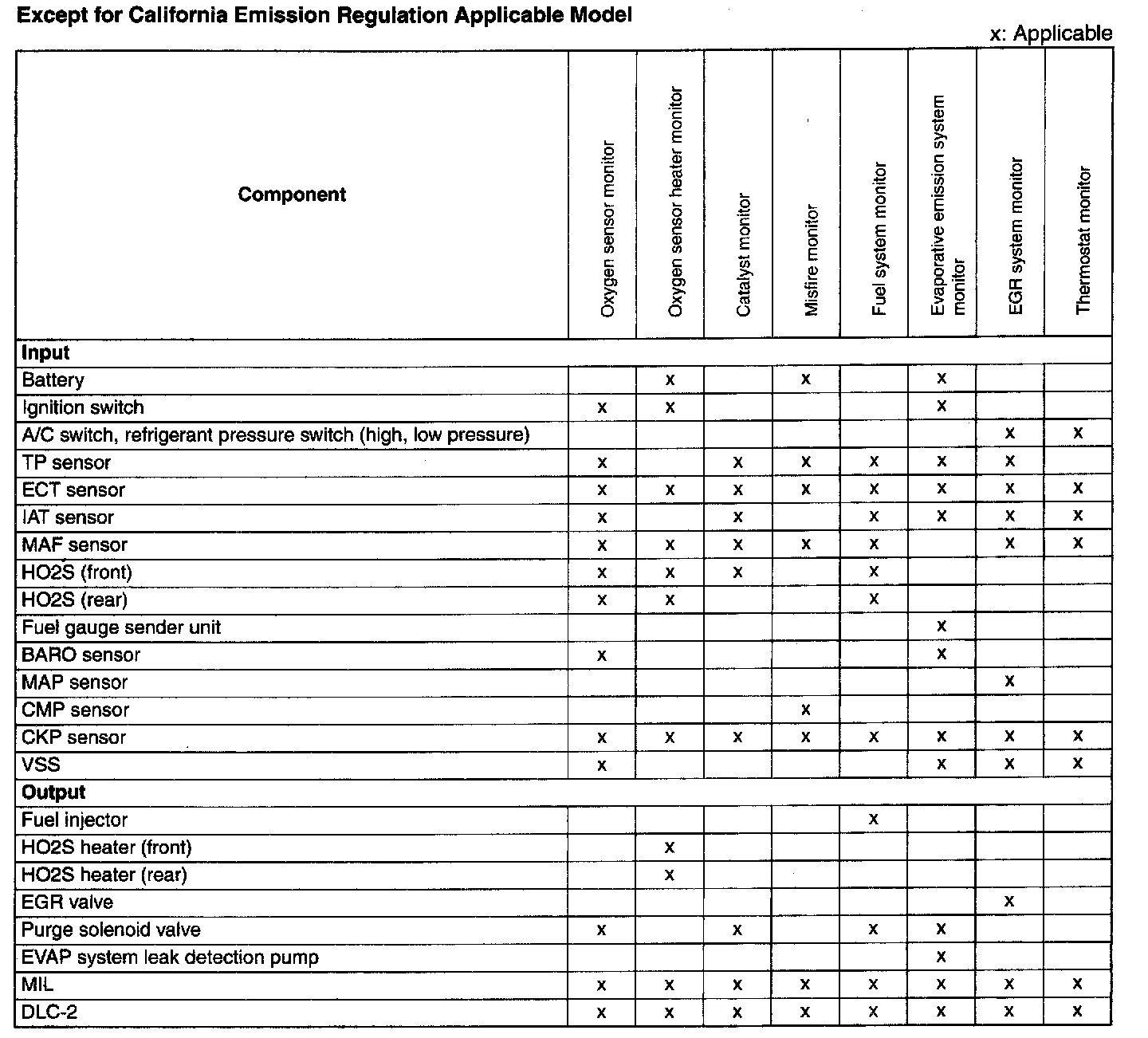

Monitoring System And Control System Device Relationship Chart Part 1:

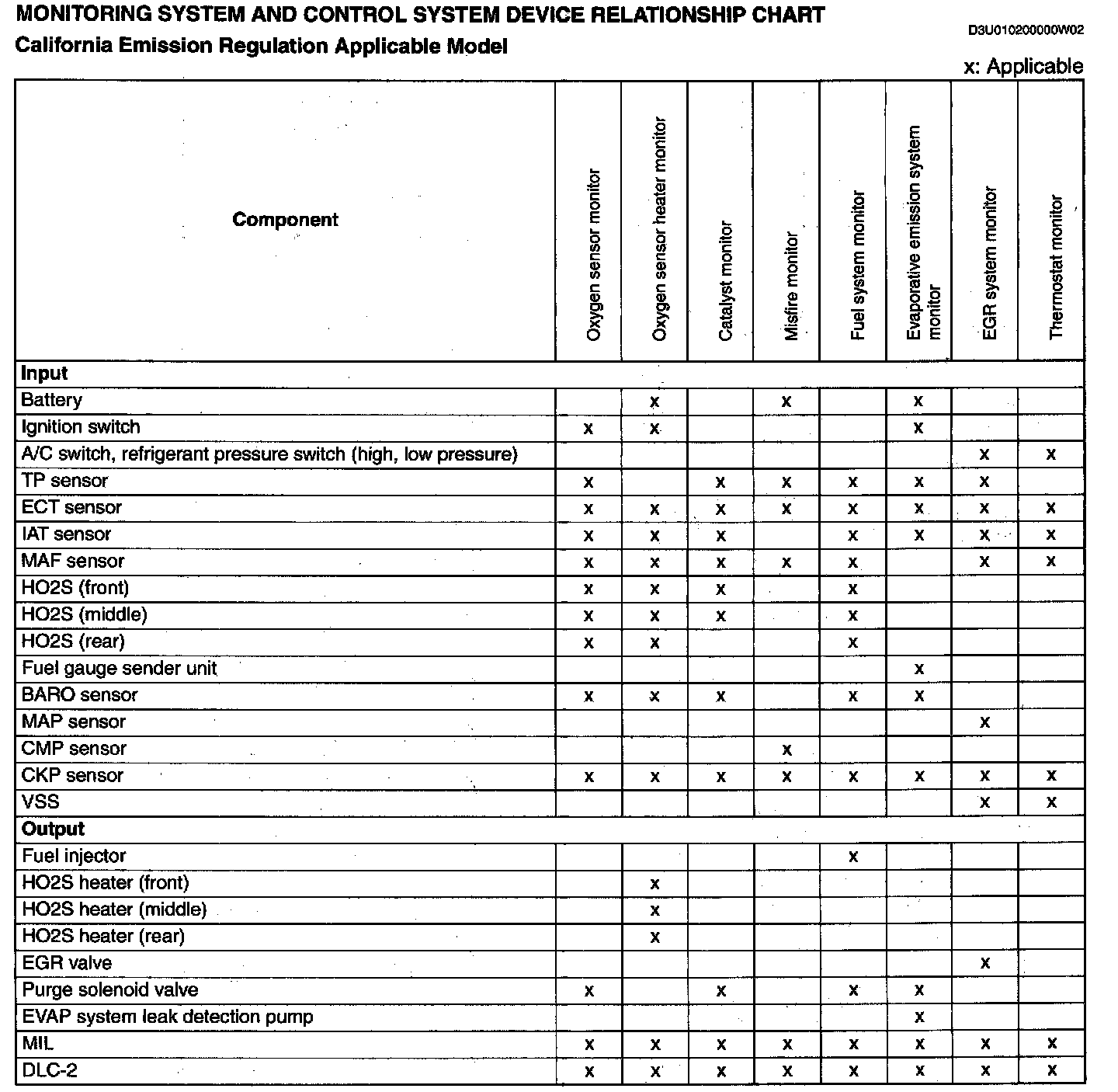

Monitoring System And Control System Device Relationship Chart Part 2:
