Symptom Quick Diagnostic Chart

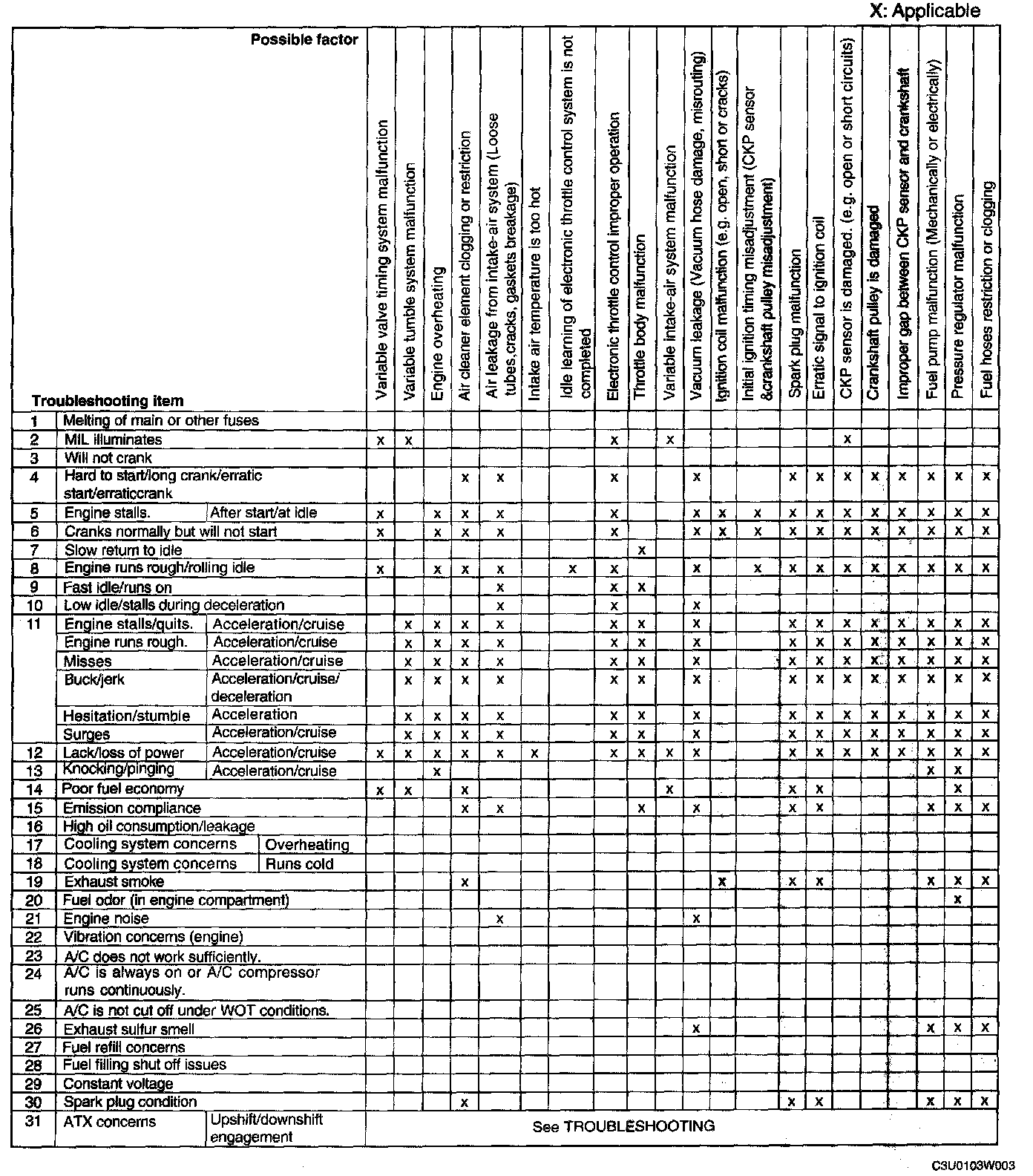

Quick Diagnostic Chart Part 1:

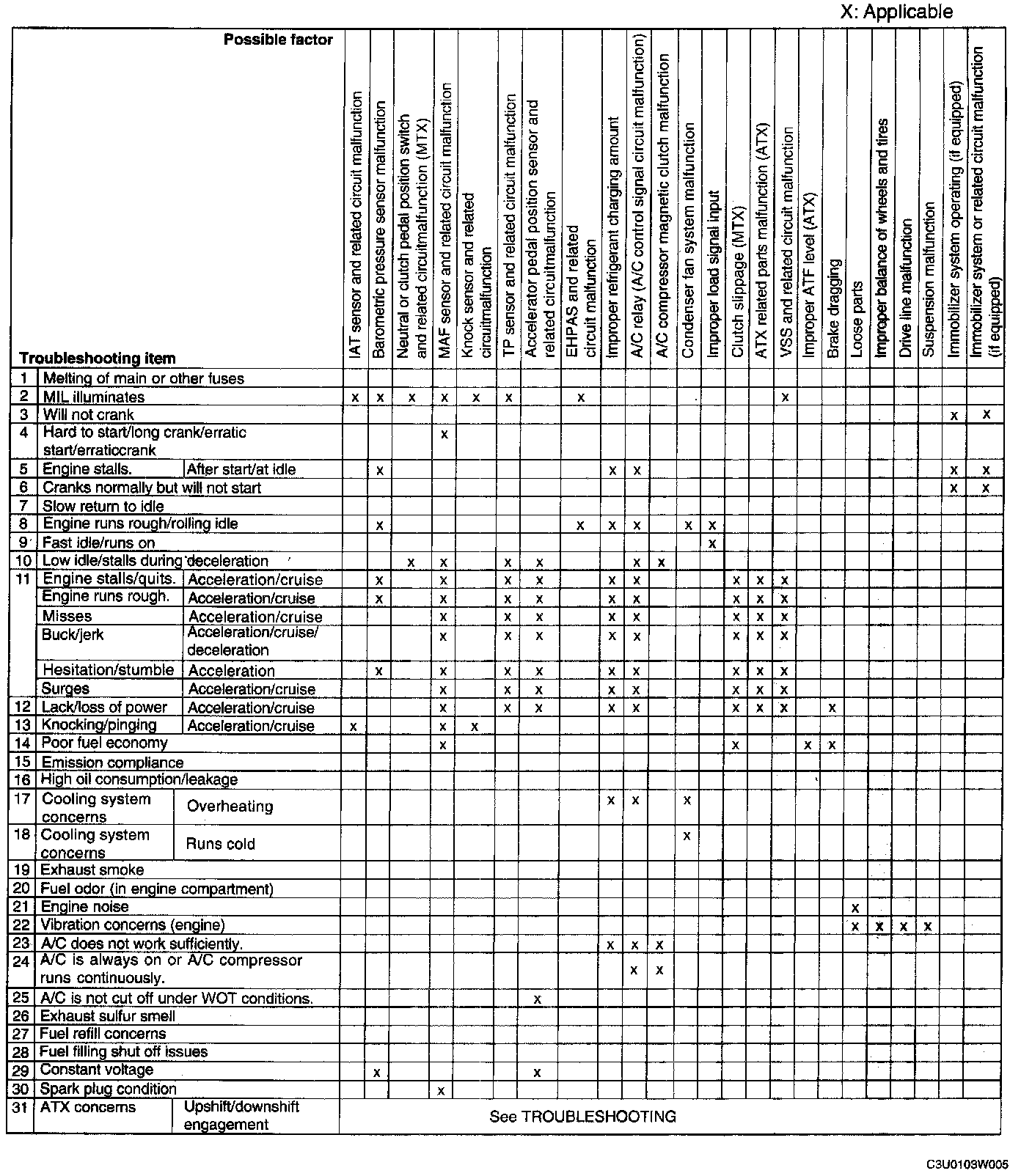

Quick Diagnostic Chart Part 2:

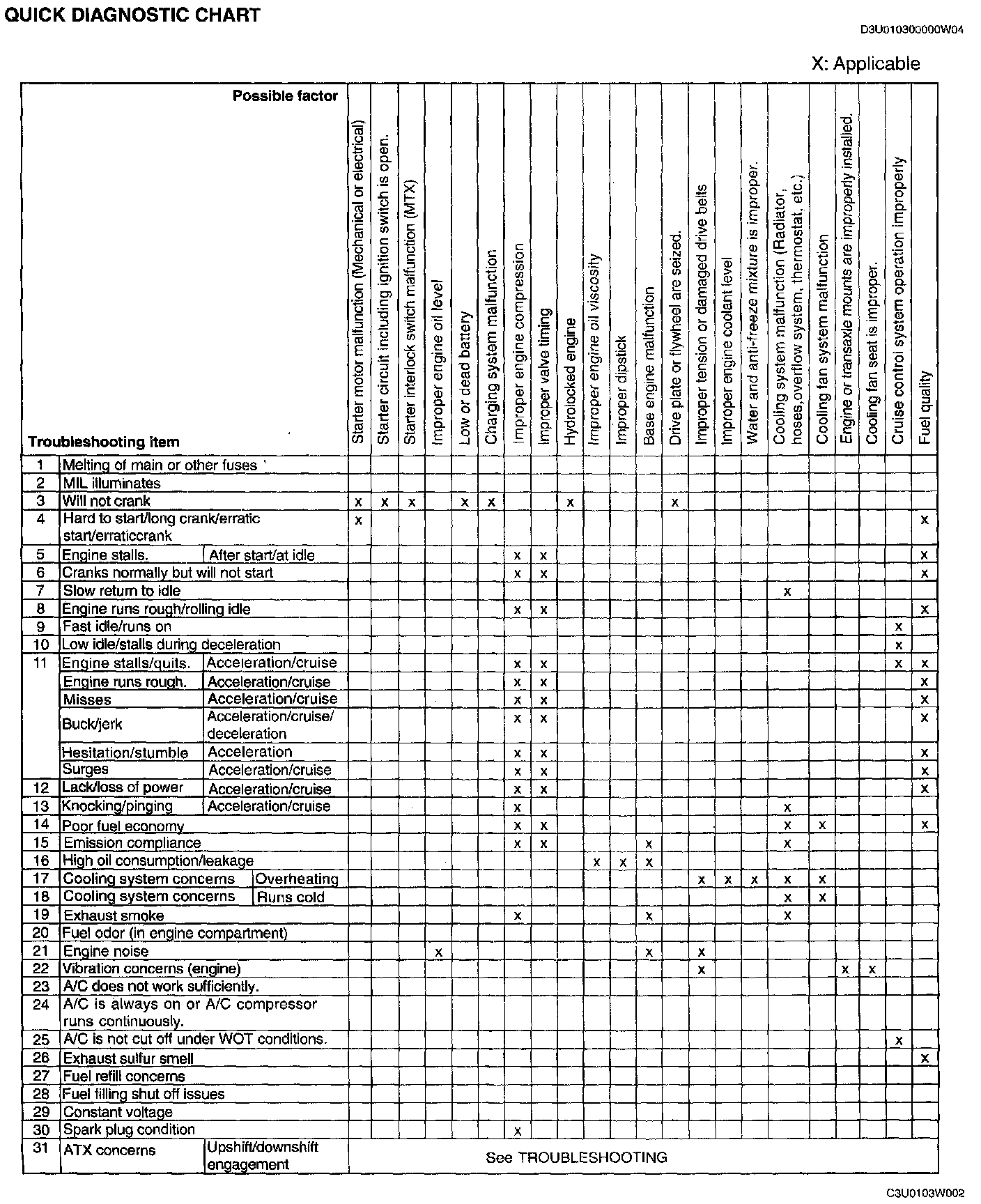

Quick Diagnostic Chart Part 3:

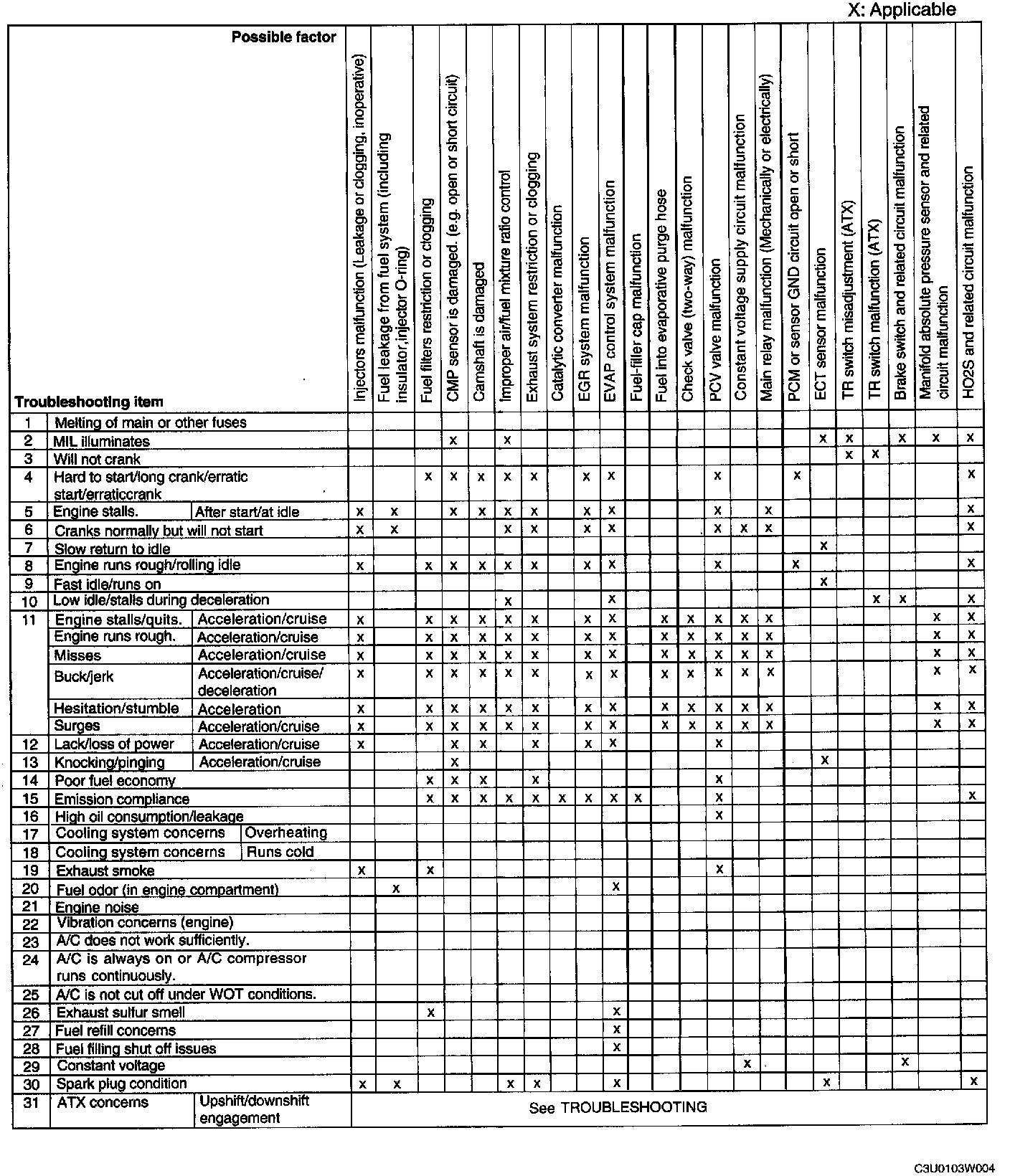

Quick Diagnostic Chart Part 4:
