Vehicle Speed Sensor Inspection (Without ABS)

VEHICLE SPEED SENSOR INSPECTION (WITHOUT ABS)
1. Remove the vehicle speed sensor.

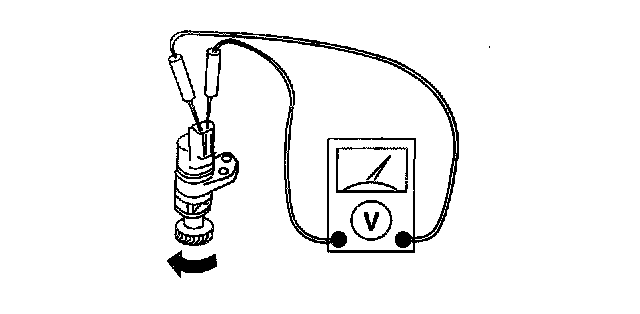

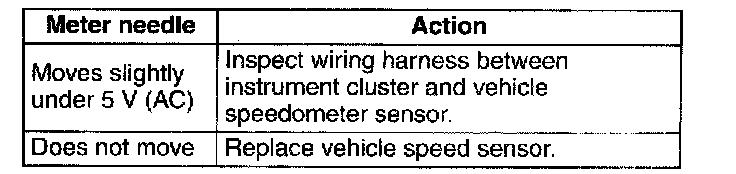

2. Measure the voltage between the vehicle speed sensor terminals while the gear is turning.
3. Install the vehicle speed sensor.
