Connectors
ConnectorsDisconnecting connectors

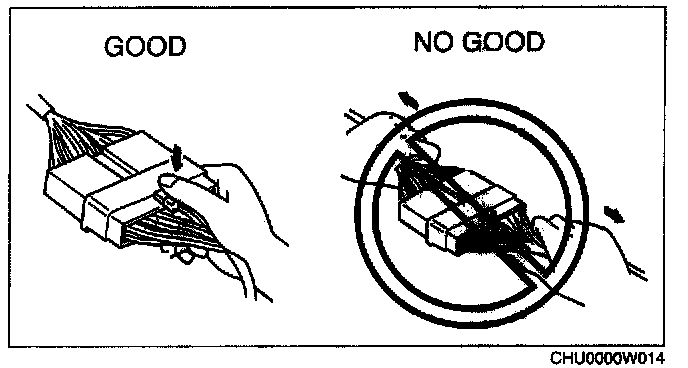

- When disconnecting connector, grasp the connectors, not the wires.

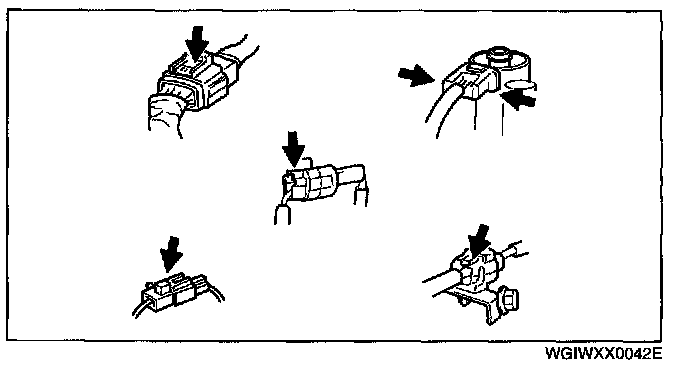

- Connectors can be disconnected by pressing or pulling the lock lever as shown.
Locking connector

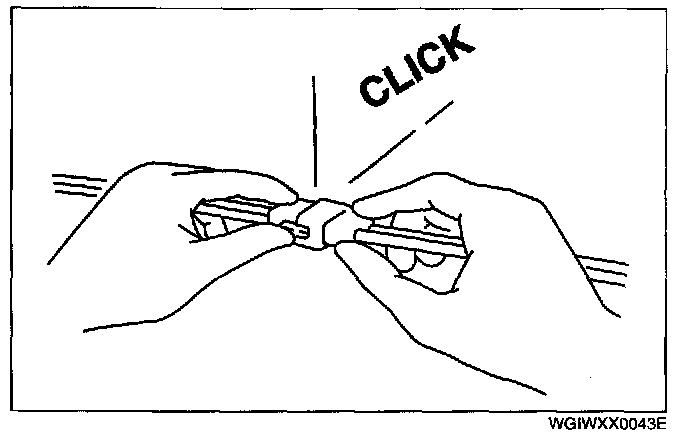

- When locking connectors, listen for a click indicating they are securely locked.
Inspection

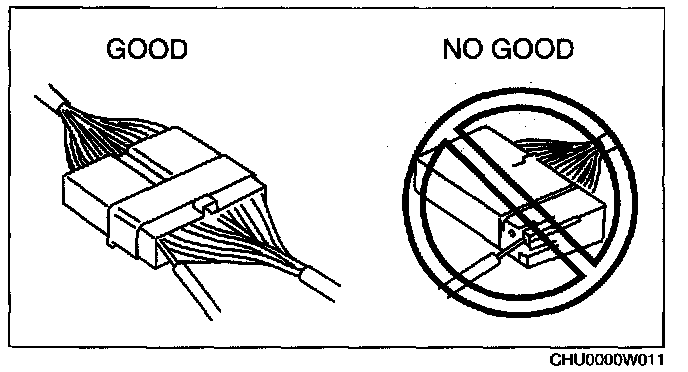

- When a tester is used to inspect for continuity or measuring voltage, insert the tester probe from the wiring harness side.
- Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.

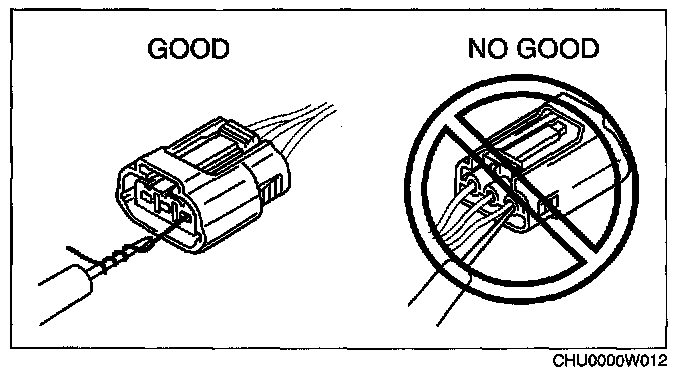

CAUTION: To prevent damage to the terminal, wrap a thin wire around the tester probe before inserting into terminal.
