Technical Data

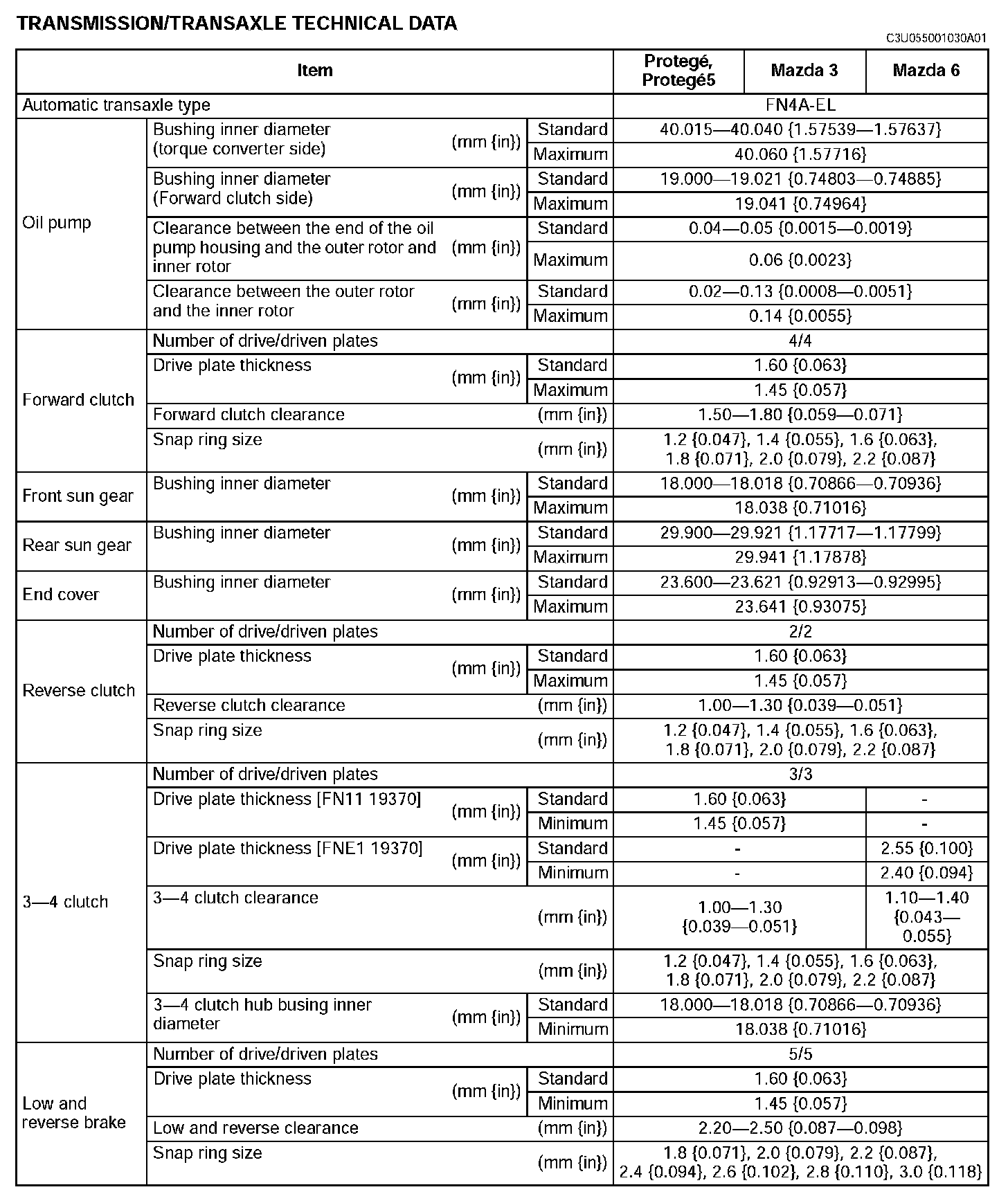

TRANSMISSION/TRANSAXLE TECHNICAL DATA

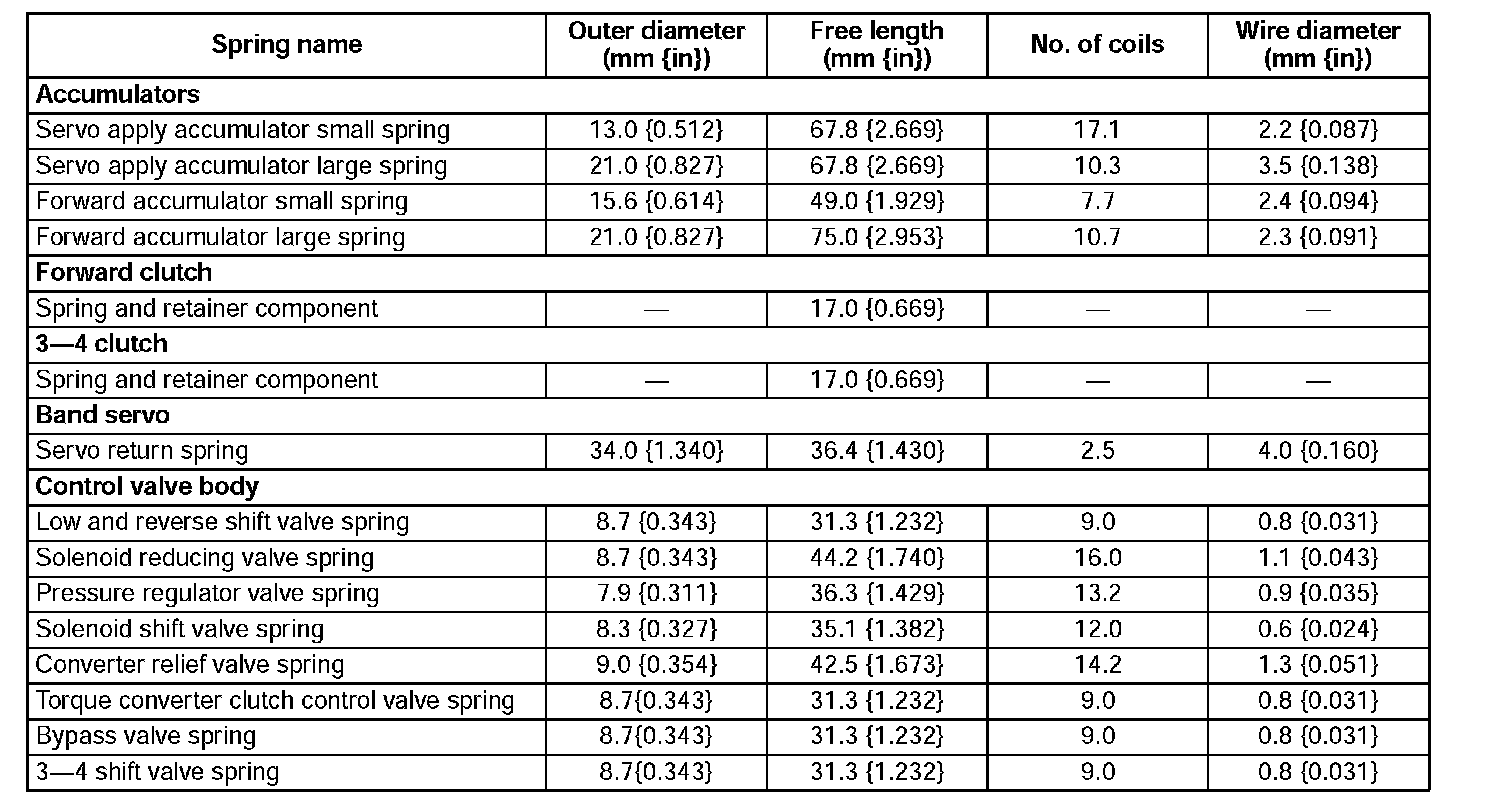

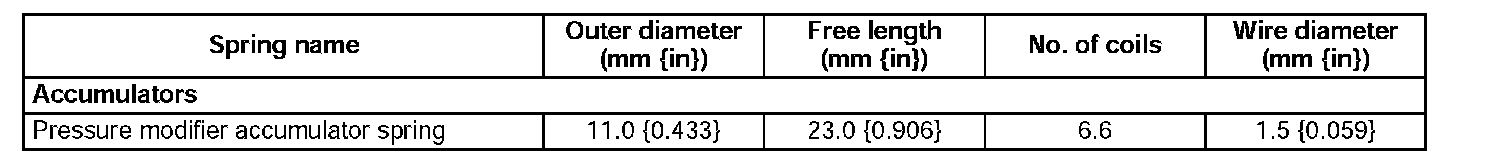

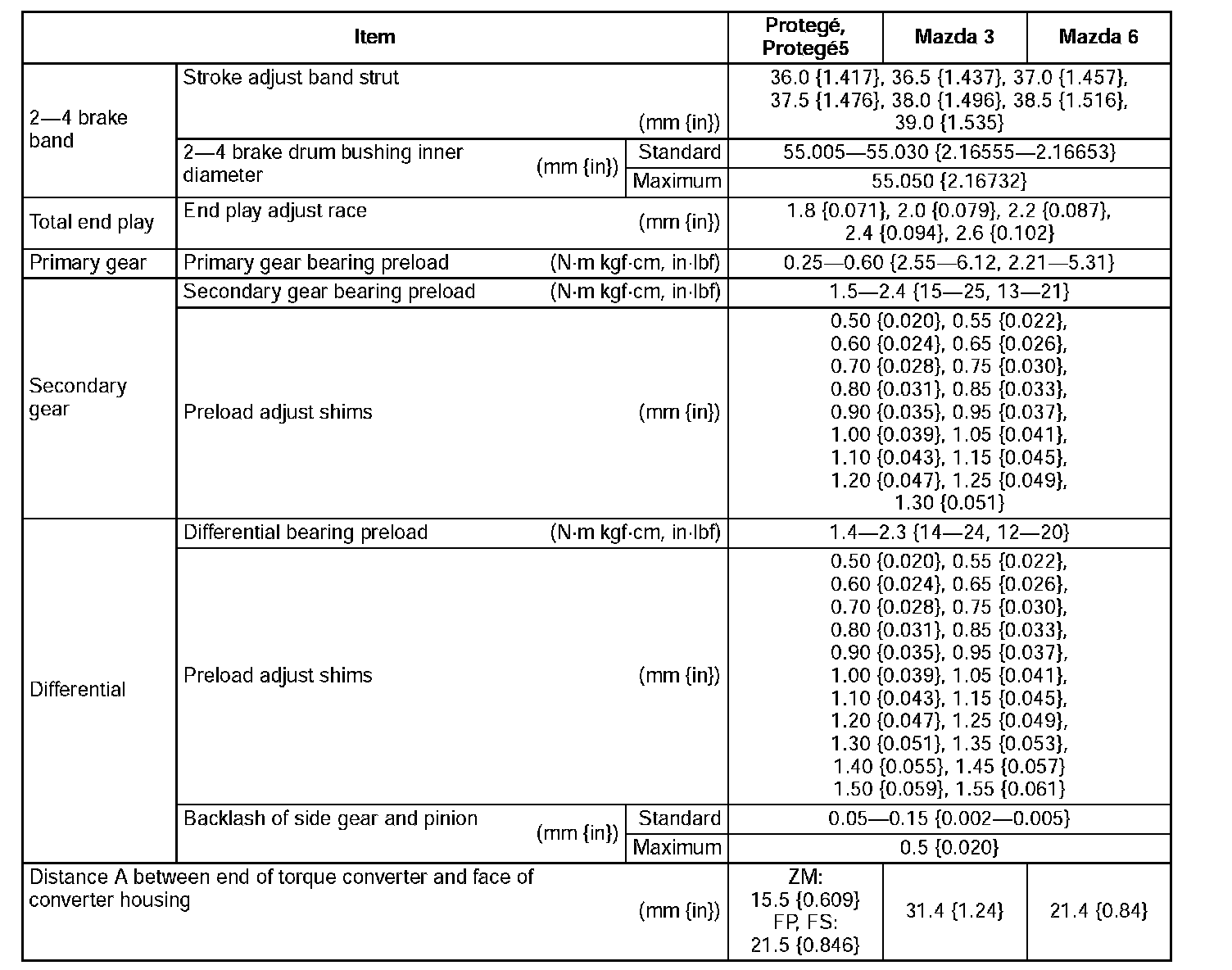

Transmission/Transaxle Technical Data (Part 1):




Transmission/Transaxle Technical Data (Part 2):




Transmission/Transaxle Technical Data (Part 3):




Transmission/Transaxle Technical Data (Part 4):
