Flex Plate

Flywheel/Drive Plate

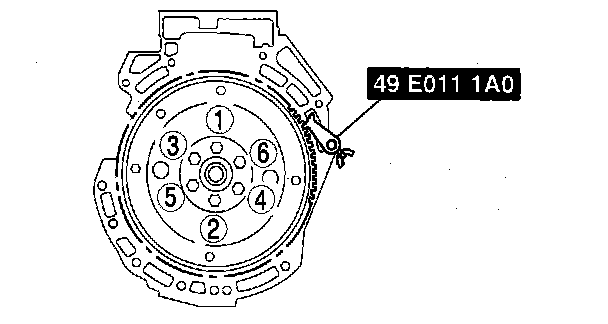

Tighten the bolts in the 3 steps in the figure.
Tightening torque
1 46 - 54 Nm {4.70 - 5.50 kgf-m, 34.0 - 39.8 ft. lbs.}
2 76 - 84 Nm {7.75 - 8.56 kgf-m, 56.1 - 61.9 ft. lbs.}
3 108 - 116 Nm {11.1 - 11.8 kgf-m, 79.7 - 85.5 ft. lbs.}
