Ignition Switch: Service and Repair

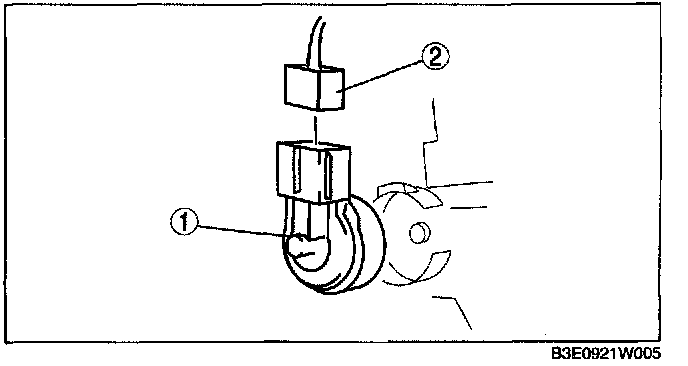

IGNITION SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the column cover.

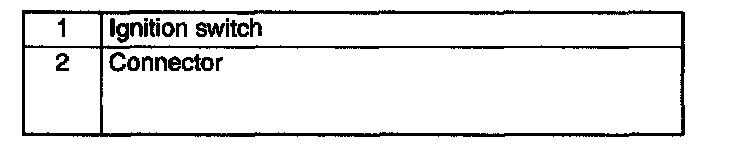

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
