Control Valve Body Assembly

Control Valve Body Assembly
1. Verify that all parts are clean and free of dust and other small particles.
2. Apply ATF to all parts.
3. Assemble in the reverse order of disassembly.

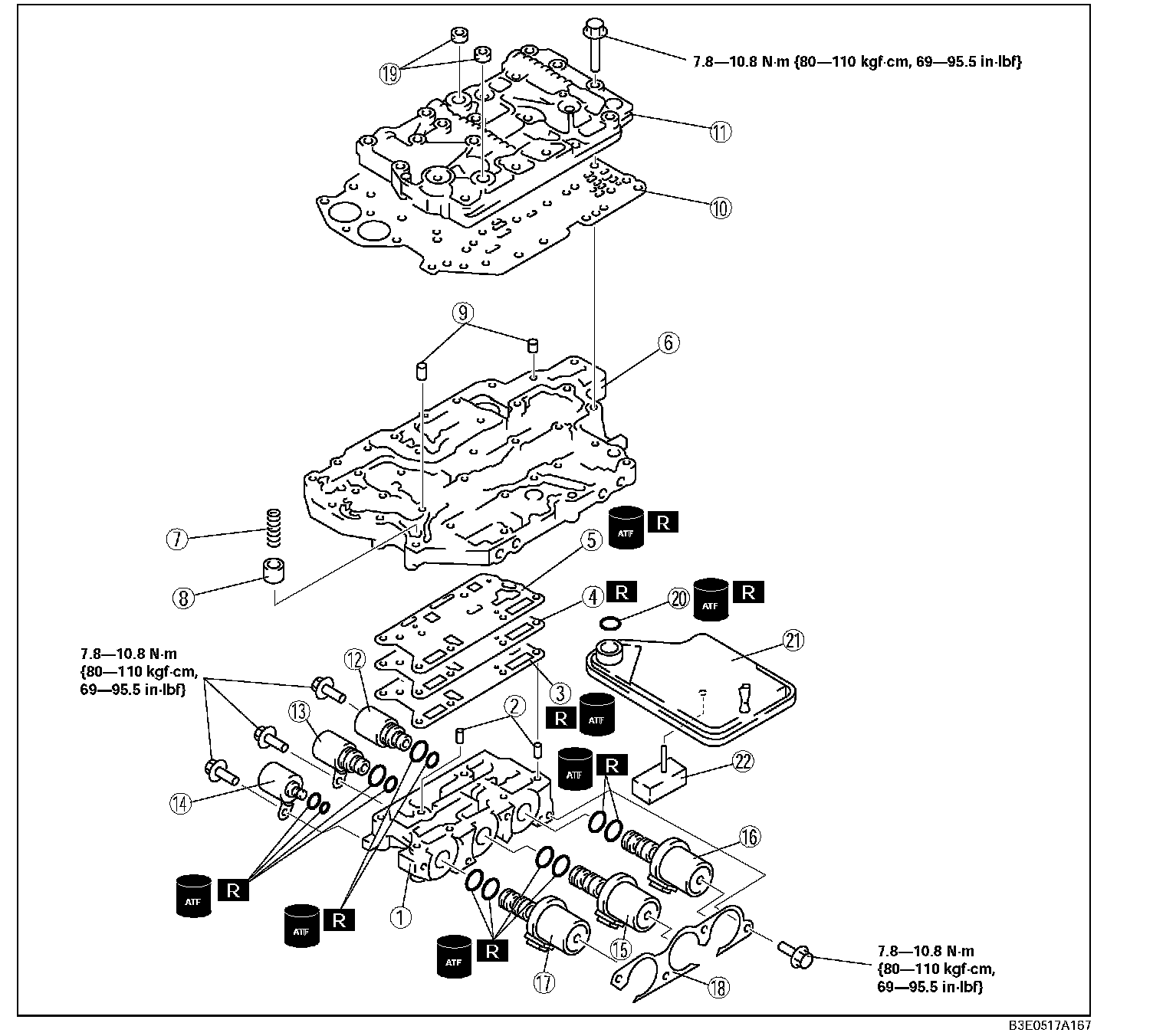

Control Valve Body Assembly (Part 1):




Control Valve Body Assembly (Part 2):
