Power Window Motor: Testing and Inspection

POWER WINDOW MOTOR INSPECTION







1. Apply battery positive voltage and connect ground to power window motor terminals E and F, and then inspect the power window motor operation.

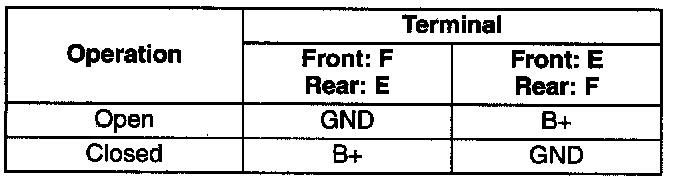

- If the power window motor does not operate as indicated in the table, replace it.
