Power Window Subswitch

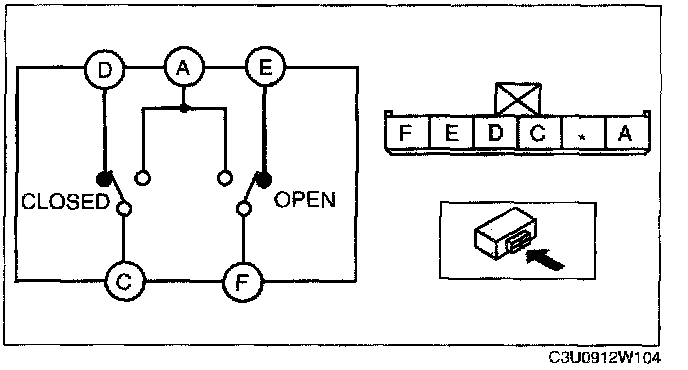

POWER WINDOW SUB SWITCH INSPECTION

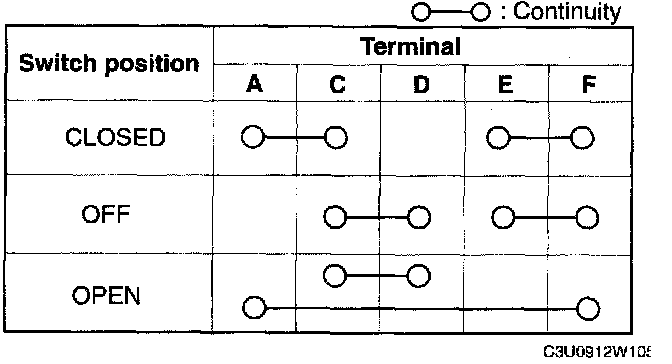

1. Verify continuity as indicated in the table.
- If not as indicated in the table, replace the power window sub switch.
