Window Handle: Service and Repair

REGULATOR HANDLE REMOVAL

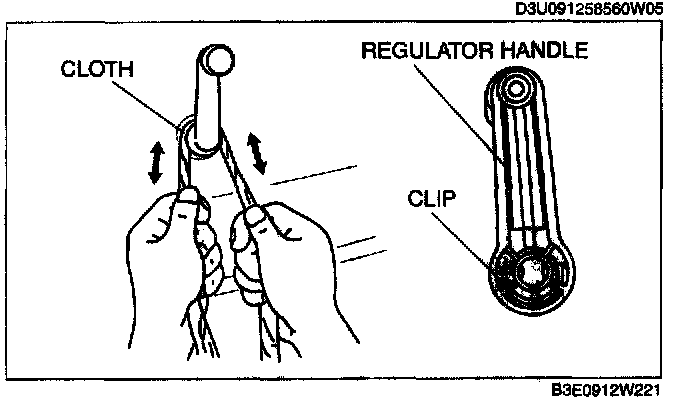

1. Using a cloth, remove the regulator handle installation clip and remove the regulator handle.

REGULATOR HANDLE INSTALLATION
1. Fully raise the door glass.
2. Install the clip to the regulator handle.

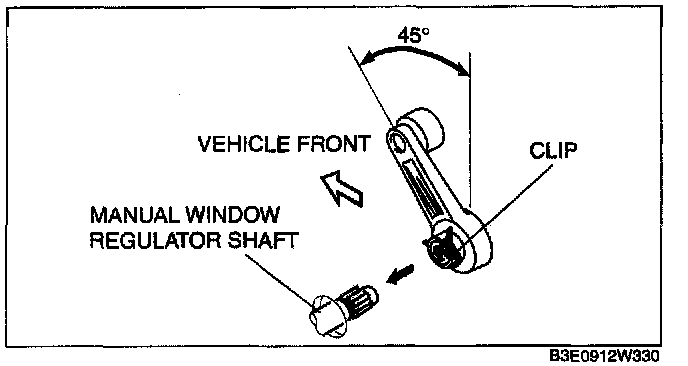

3. Install the regulator handle while tilting it as shown in the figure and press it onto the shaft.
